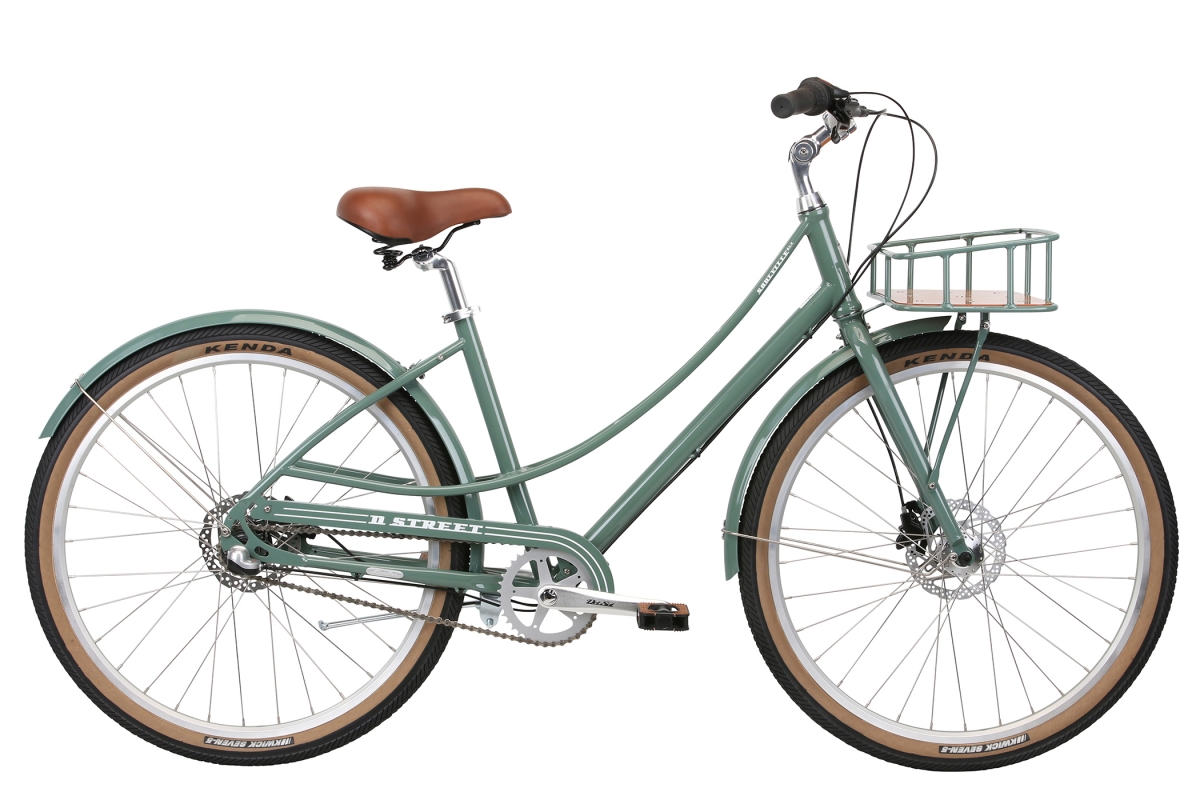

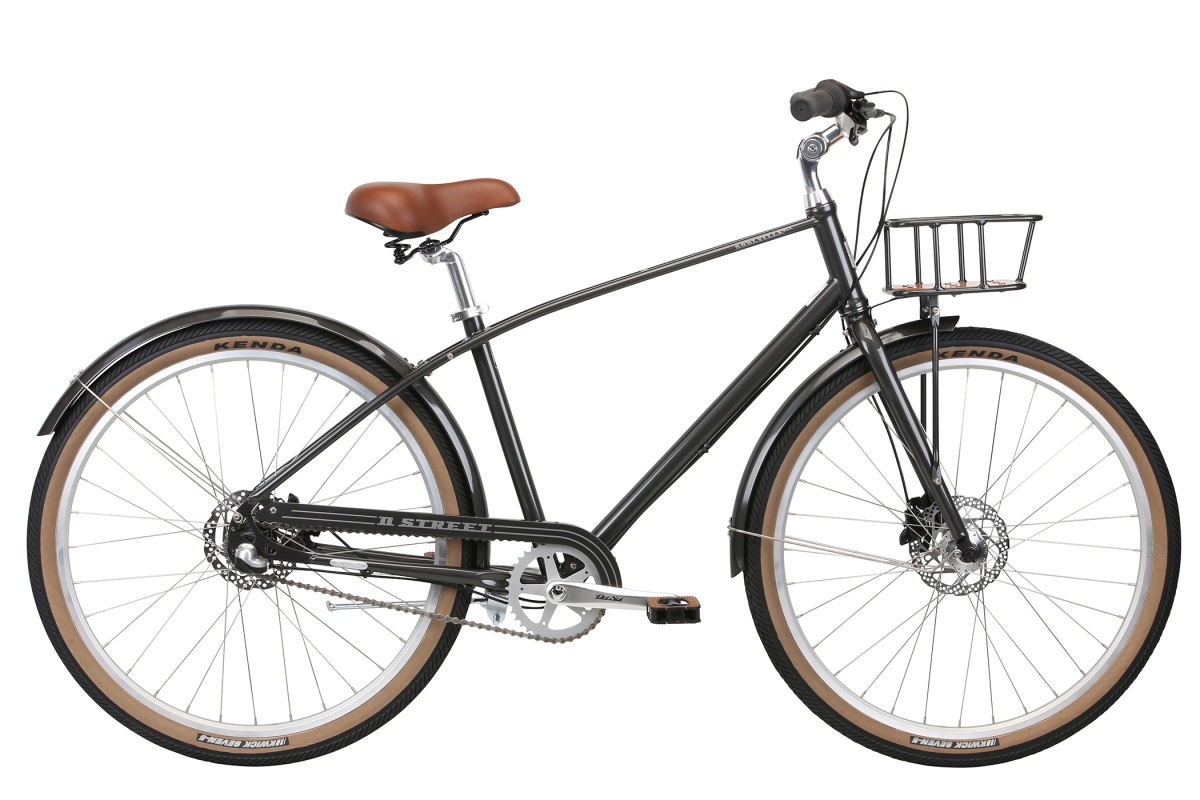

Soulville DLX
| Year | 2019 |
|---|---|
| MSRP | $579.99 * |
| Sizes | S, M, L |
| Colors | SG Charcoal, VW Green |
| Weight |
FEATURES
- Custom D-Street steel urban frameset
- Shimano Nexus 3 speed internal hub with Revo twist shifter
- Del Sol alloy crankset
- Powerful Shimano hydraulic disc brakes ensure all-condition stopping power
- Custom alloy 31.8mm Soulville handlebar
- Fast-rolling and durable 650x47c tires
- Sturdy 32-hole alloy wheelset with doublewall rims
- Color-matched full-coverage fenders
- Custom front rack to hold your gear/beverages
| Frame Components | |
|---|---|
| Frame | D-Street Café 650B Steel |
| Fork | Rigid Hi-Ten |
| Headset | 1 1/8" Loose Ball |
| Drivetrain | |
| Cranks | Forged Alloy 3 Piece, 42t |
| Bottom Bracket | Sealed Cartridge |
| Chain | KMC Z51 |
| Front Derailleur | N/A |
| Rear Deralleur | N/A |
| Derailleur Shifter | Shimano Revo |
| Pedals | D-Street Comfort |
| Wheels | |
| Tires | 650b x 47c |
| Wheels/Rims | Double-Wall Alloy |
| Hubs | Alloy Disc Front, Rear Shimano Nexus Disc 3-spd |
| Freewheel/Cassette | Shimano 18t Cog |
| Braking System | |
| Brakes | Shimano MT200 Hydraulic Disc |
| Brake Levers | Shimano MT200 Hydraulic Disc |
| Other Components | |
| Grips | Cork Comfort |
| Handle Bar | D-Street Soulville Hi-Ten |
| Stem | Alloy Quill |
| Seat | D-Street Comfort |
| Seat Post | Alloy micro-adjust 27.2 X 350mm |
| Seat Clamp | Alloy QR, 31.8mm |
| Extras | Full-Coverage Fenders, Rack Mounts |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S ST | 70.5° | 72° | 572mm (22.5") | 381mm (15") | 439mm (17.3") | 1077mm (42.4") | 533mm (21") | ||||||||
| M ST | 70.5° | 72° | 587mm (23.1") | 429mm (16.9") | 439mm (17.3") | 1092mm (43") | 544mm (21.4") | ||||||||
| S | 70.5° | 72° | 572mm (22.5") | 406mm (16") | 439mm (17.3") | 1077mm (42.4") | 757mm (29.8") | ||||||||
| M | 70.5° | 72° | 587mm (23.1") | 445mm (17.5") | 439mm (17.3") | 1092mm (43") | 762mm (30") | ||||||||
| L | 70.5° | 71.5° | 610mm (24") | 485mm (19.1") | 439mm (17.3") | 1110mm (43.7") | 800mm (31.5") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
