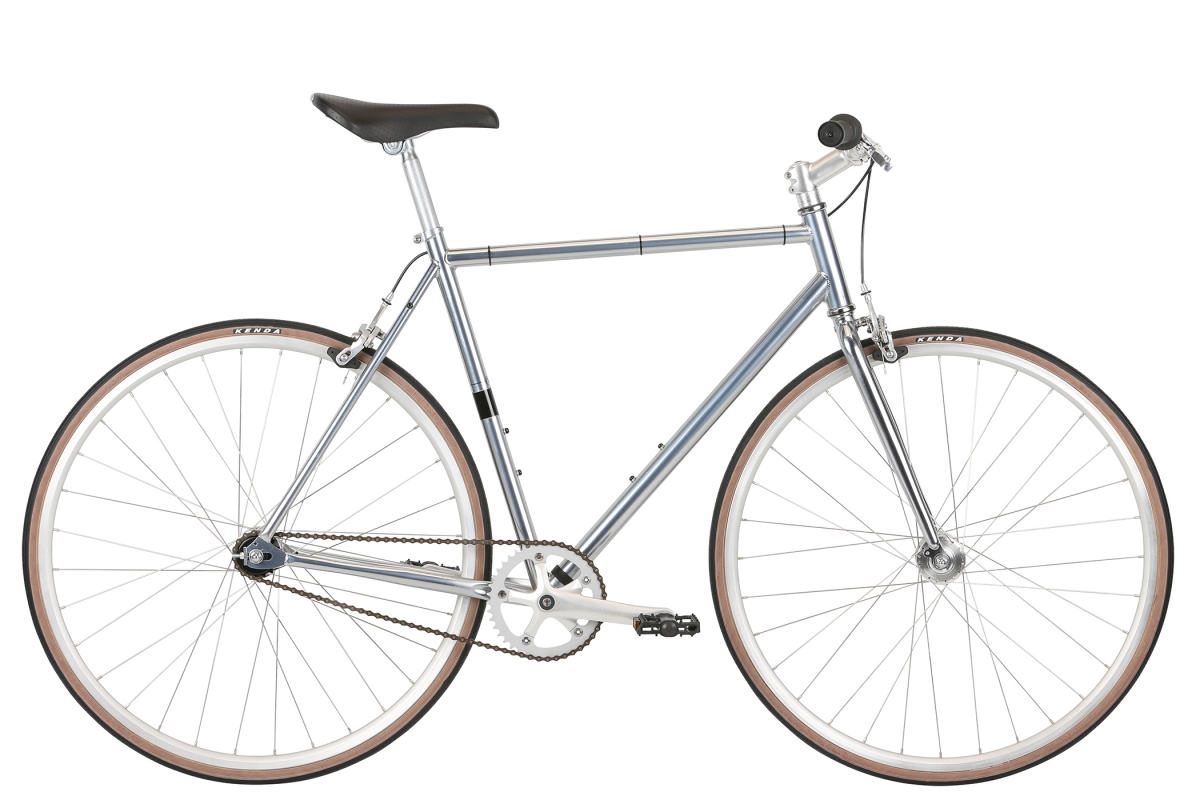

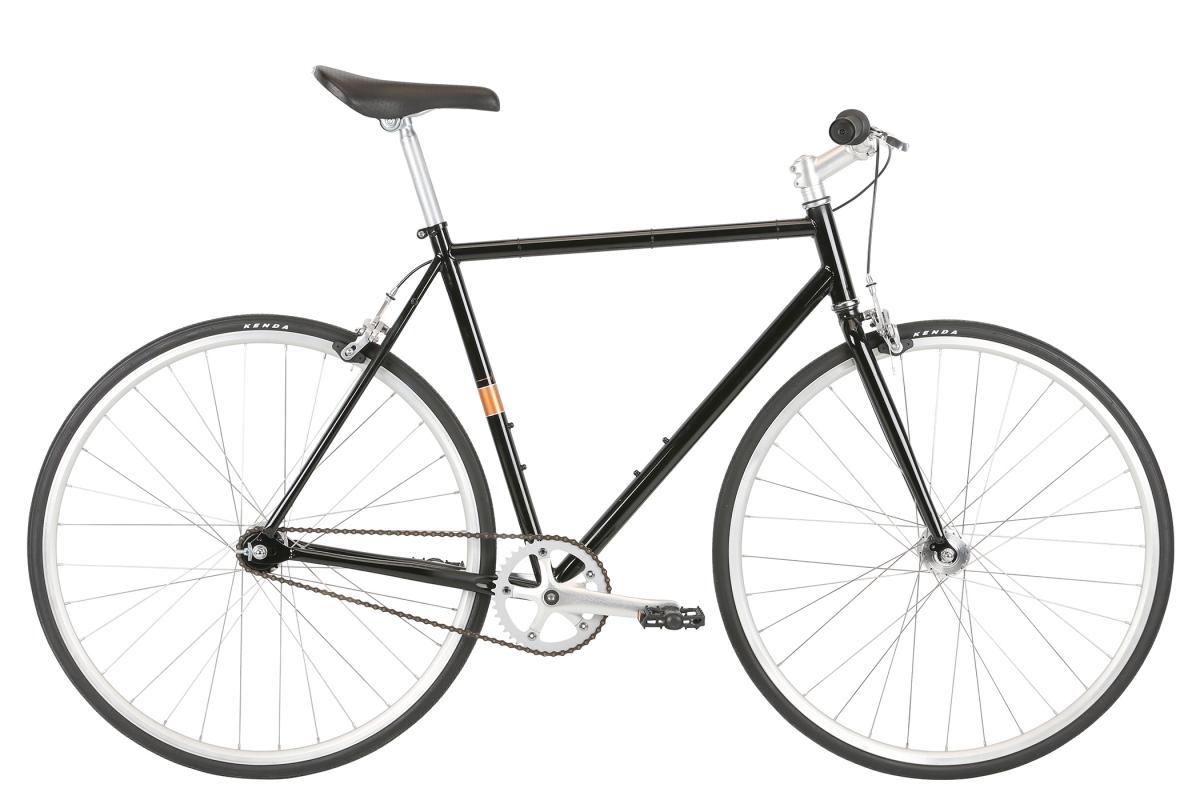

D Street Projekt, there's not much to say about it because there isn't a lot to it and that's the point, no gears, no flash, and no worries. Projekt comes with a D street frame complete with track dropouts. If you want to outfit it with fenders and racks for commuting, its got the mounts. Strong double wall rims and sturdy 32 hole alloy wheelset team up with a flip flop hub that lets you switch it up from fixed to single speed and back again. The Project has one vision, a small carbon foot print and a very big life.
FEATURES
- Custom D-Street hi ten singlespeed frameset
- New overised alloy riser bars, 660mm wide
- Alloy 3-piece crankset with sealed BB
- Simple one-speed freewheel drivetrain
- Tektro R317 rear brake
- Kenda 700 x 28c tires
- Sturdy 32-hole alloy wheelset with doublewall rims
| Frame Components | |
|---|---|
| Frame | D-Street Hi-Ten Singlespeed w/Track Dropouts |
| Fork | Rigid Hi-Ten |
| Headset | 1 1/8" Threadless |
| Drivetrain | |
| Cranks | Forged Alloy 3 Piece, 42t |
| Bottom Bracket | Sealed Cartridge |
| Chain | KMC Z410 |
| Front Derailleur | N/A |
| Rear Deralleur | N/A |
| Derailleur Shifter | N/A |
| Pedals | Wellgo Nylon Body |
| Wheels | |
| Tires | Kenda K176, 700 X 30mm |
| Wheels/Rims | 40mm Double-Wall Alloy |
| Hubs | Alloy Track Style. 32h |
| Freewheel/Cassette | 16t Freewheel / Fixed Cog |
| Braking System | |
| Brakes | Tektro R317 |
| Brake Levers | Tektro Hal89A |
| Other Components | |
| Grips | Projekt BMX Style |
| Handle Bar | Alloy Riser, 30mm Rise, 660mm Width |
| Stem | Forged Alloy, 10 Degree Rise |
| Seat | D-Street Padded Retro |
| Seat Post | Alloy Microadjust 27.2mm X 250mm |
| Seat Clamp | Integrated |
| Extras | Rack & Fender Mounts |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS / 49 | 70° | 74.5° | 533mm (21") | 490mm (19.3") | 423mm (16.7") | 1018mm (40.1") | 29.8mm (1.2") | 75mm | 600mm | 170mm | |||||
| S / 52 | 70.5° | 74° | 542mm (21.3") | 520mm (20.5") | 423mm (16.7") | 1023mm (40.3") | 30.5mm (1.2") | 75mm | 600mm | 170mm | |||||
| M / 55 | 71° | 74° | 556mm (21.9") | 550mm (21.7") | 423mm (16.7") | 1034mm (40.7") | 31.6mm (1.2") | 90mm | 600mm | 170mm | |||||
| L / 58 | 72° | 74° | 575mm (22.6") | 580mm (22.8") | 423mm (16.7") | 1045mm (41.1") | 32.8mm (1.3") | 90mm | 600mm | 170mm | |||||
| XL / 61 | 72° | 73° | 595mm (23.4") | 610mm (24") | 423mm (16.7") | 1061mm (41.8") | 33.7mm (1.3") | 90mm | 600mm | 170mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
