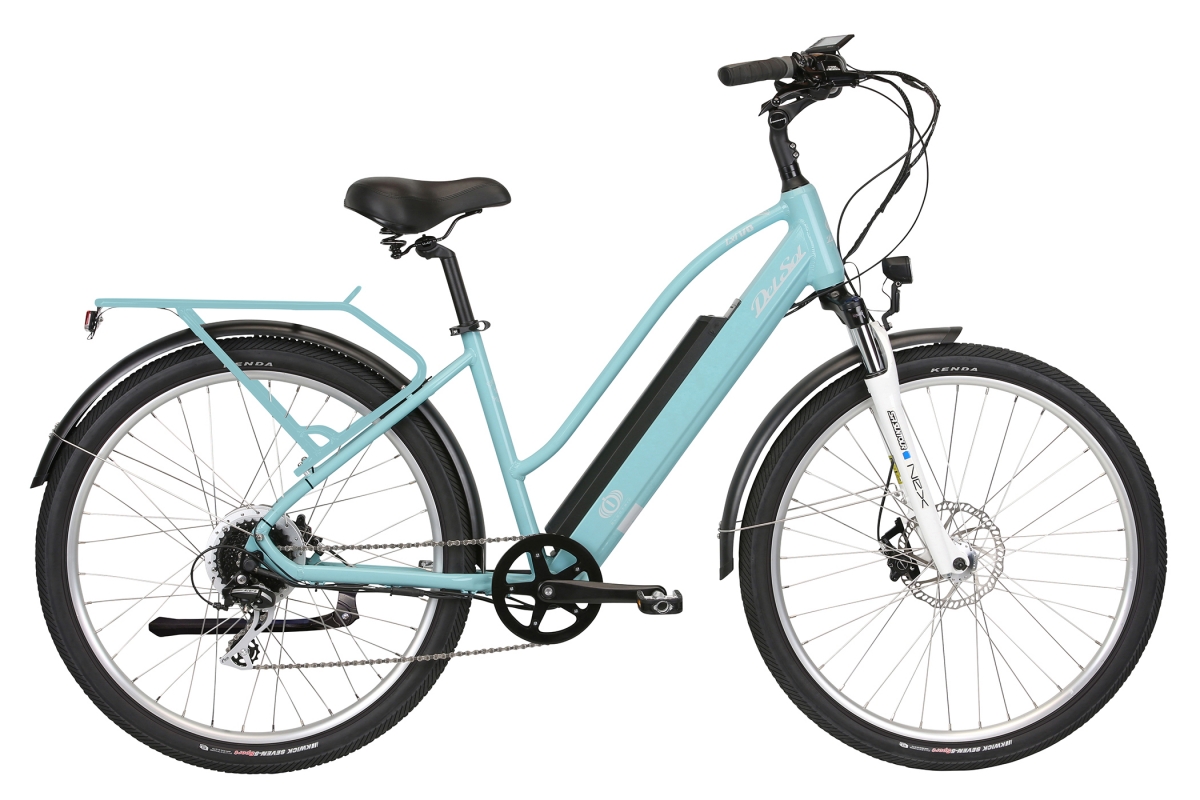

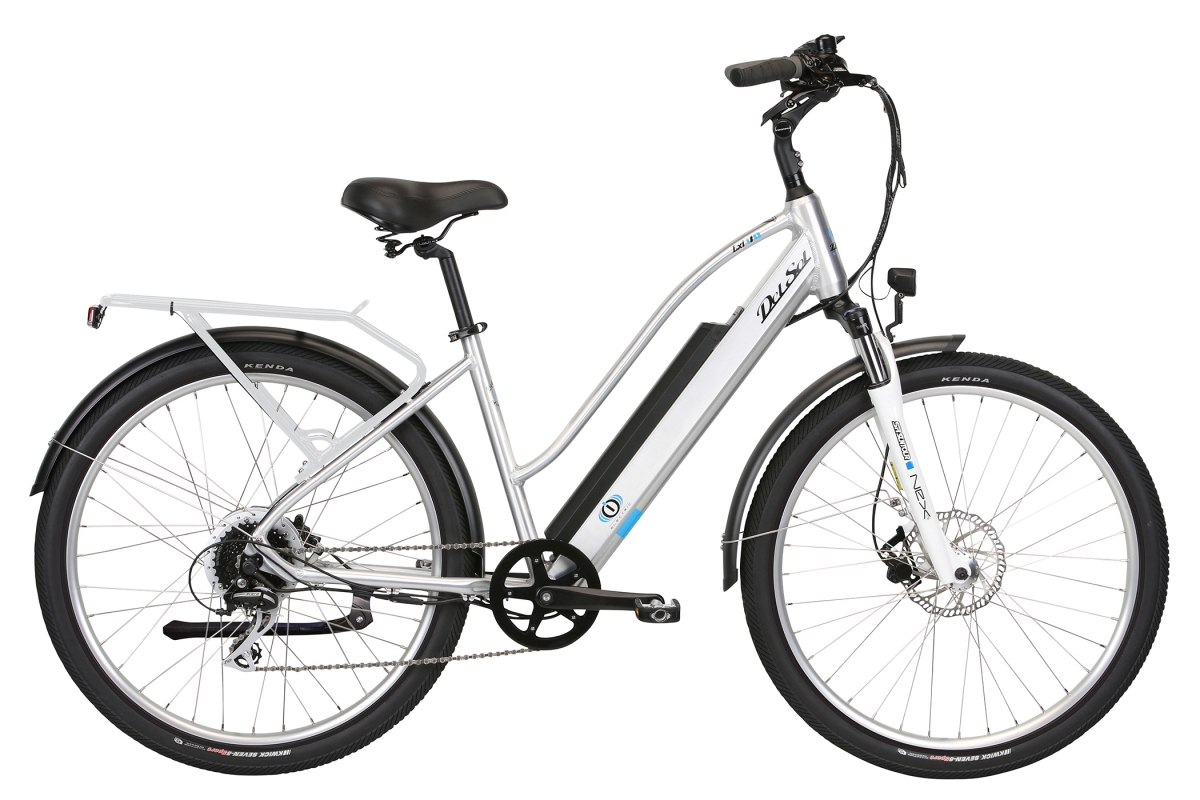

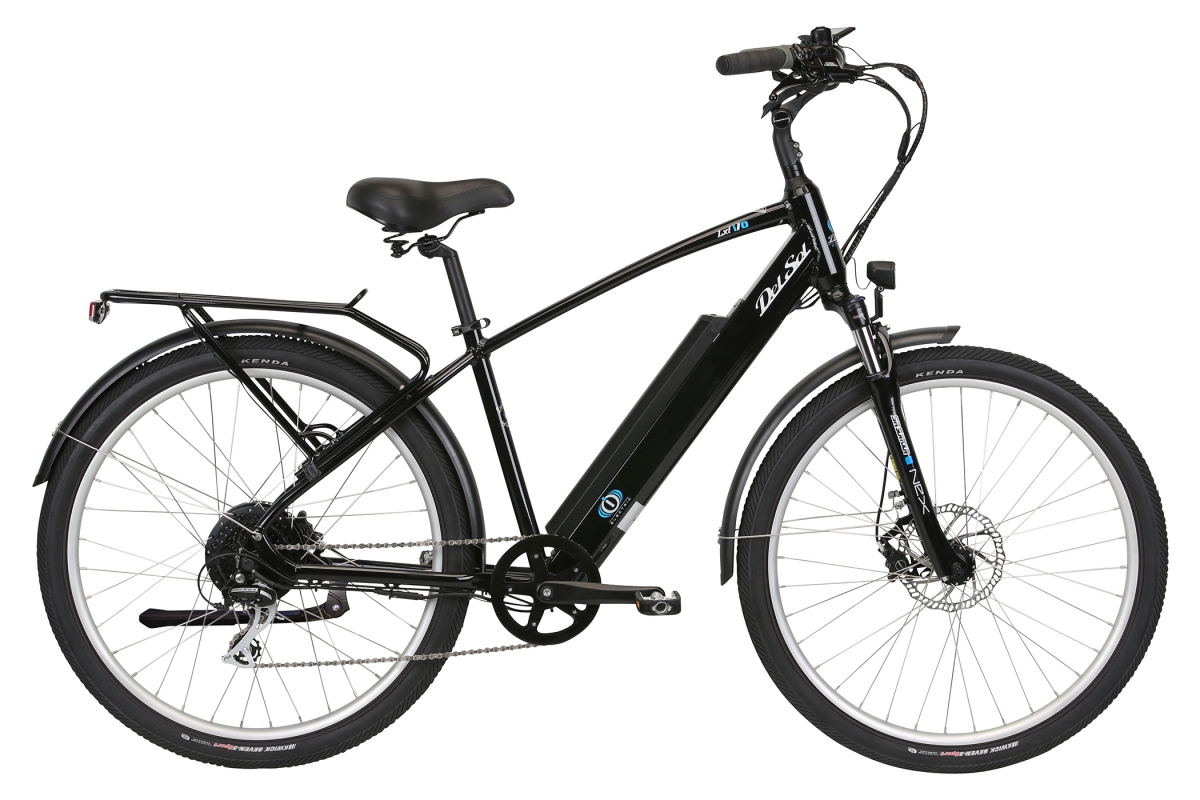

Lxi IO

  • Year: 2019
  • MSRP: $1,999.99 *
  • Sizes: 14", 17", 20"
  • Colors: Black, Limpet Shell, Brushed Alloy
  • Weight:
  • NO LONGER AVAILABLE

FEATURES

  • Lightweight Del Sol 6061 aluminum frame with Del Sol's proven upright comfort geometry
  • SR Suntour NEX DS-HLO 63mm travel fork with lock-out
  • 350W Bafang hub motor
  • Semi-integrated Samsung battery
  • Shimano 8-speed Altus rear derailleur with Acera Rapidfire Plus shifter
  • Adjustable-angle alloy stem and lightweight alloy riser bars mean you find the perfect fit, no matter the rider
  • Custom Del Sol comfort plus saddle with suspension seatpost
  • Super smooth Kenda Kwick Seven 27.5" x 2.2" all-purpose tires
  • Powerful Tektro hydraulic disc brakes ensure all-condition stopping power
SPECIFICATIONS
Frame Components
Frame LXI i/O Comfort 6061 Alloy, semi-integrated downtube battery, internal cables
Fork SR Suntour NEX DS-HLO 63mm travel fork with lock-out
Headset 1 1/8" Integrated Threadless
Drivetrain
Cranks Forged alloy, 42T chainwheel with dual sided guards
Bottom Bracket Bafang, sealed bearing with sensor
Chain KMC Z8.3
Front Derailleur N/A
Rear Deralleur Shimano Acera
Derailleur Shifter Shimano Acera Rapidfire Plus shifter, 8-spd
Drive Unit 350w rear hub E-motor, with throttle
Battery Samsung, 36V/14.5Ah
Pedals Comfort with TPE Rubber Inserts
Wheels
Tires Kenda Kwick, 27.5 x 2.2", 30 TPI casing
Wheels/Rims Double-Wall Alloy rim with 13g. stainless steel spokes
Hubs Front: Alloy, 36 hole, for disc brake. Rear: E-motor hub, 36 hole, for disc brake.
Freewheel/Cassette Shimano HG-31 11-32T, 8-spd
Braking System
Brakes Tektro Auriga Hydraulic Disc, 160mm rotors F&R
Brake Levers Tektro Auriga, 4-finger alloy blade with ball end
Other Components
Grips Comfort Dual Density
Handle Bar Alloy Riser Bar, 40mm Rise, 580mm Width
Stem Alloy Threadless, No-tools adjustable angle, 90-160 degrees, 110mm length
Seat Del Sol Comfort Springer
Seat Post Alloy Suspension, 40mm travel, 27.2 X 300mm
Seat Clamp Alloy 31.8mm
Extras Alloy Kickstand, Alloy Rack, Full-Coverage Fenders, F&R Light System, Charger & Cables
GEOMETRY
Size Head Angle Seat Angle Top Tube (Effective) Seat Tube (C-T) Chainstay Length BB Drop Wheel Base Stand Over Stack Height Reach Fork Height Fork Offset Stem Length Bar Width Crank Length
S ST 70° 73° 584mm (23") 361mm (14.2") 465mm (18.3") 1118mm (44") 559mm (22")
M ST 70° 73° 584mm (23") 432mm (17") 465mm (18.3") 1118mm (44") 559mm (22")
S 70° 73° 584mm (23") 356mm (14") 465mm (18.3") 1118mm (44") 673mm (26.5")
M 70° 73° 584mm (23") 432mm (17") 465mm (18.3") 1118mm (44") 737mm (29")
L 70° 73° 630mm (24.8") 508mm (20") 465mm (18.3") 1158mm (45.6") 813mm (32")

RESOURCES

Owner's manual: Bike Manual PDF (Opens in a new window)
