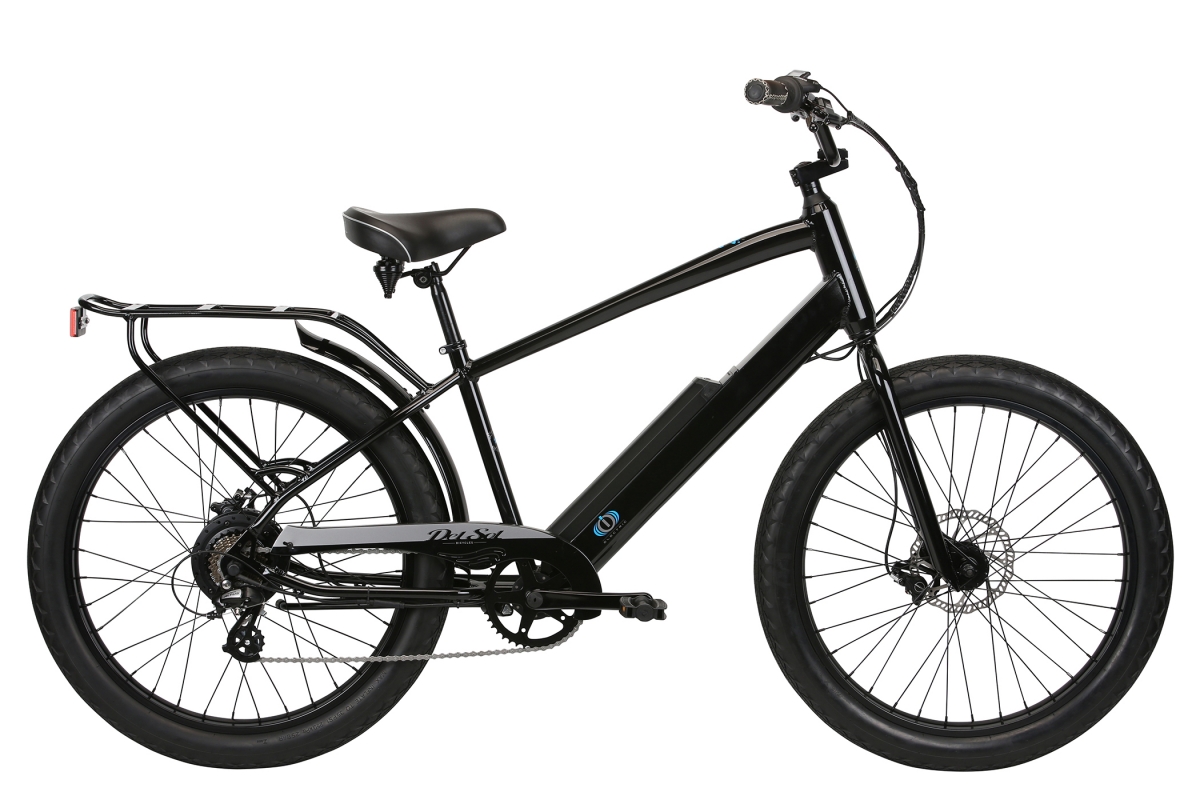

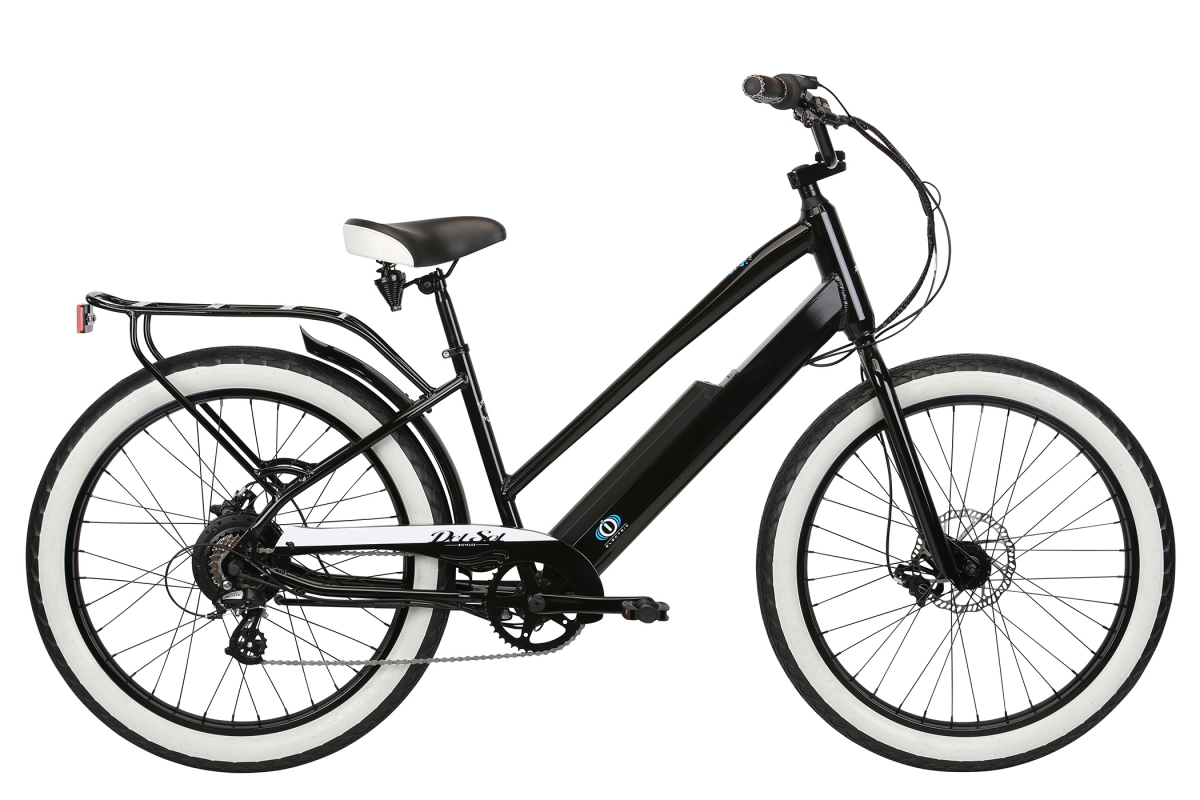

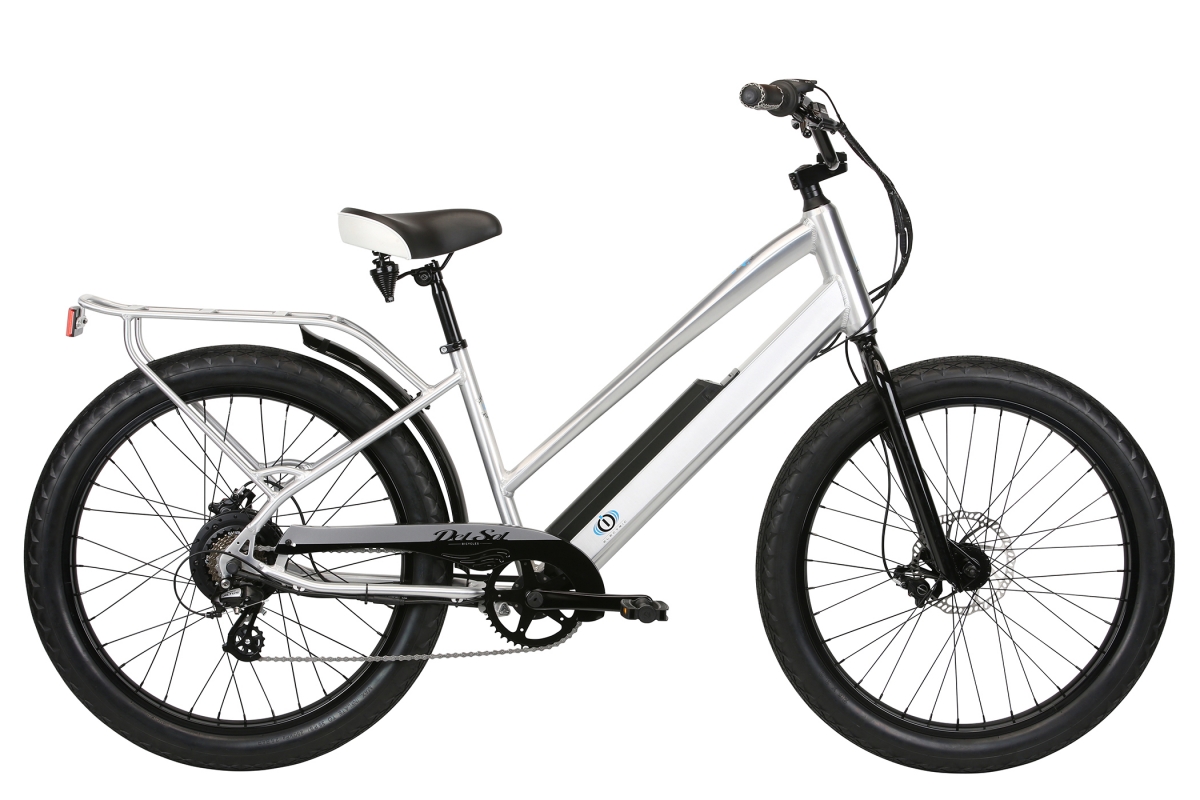

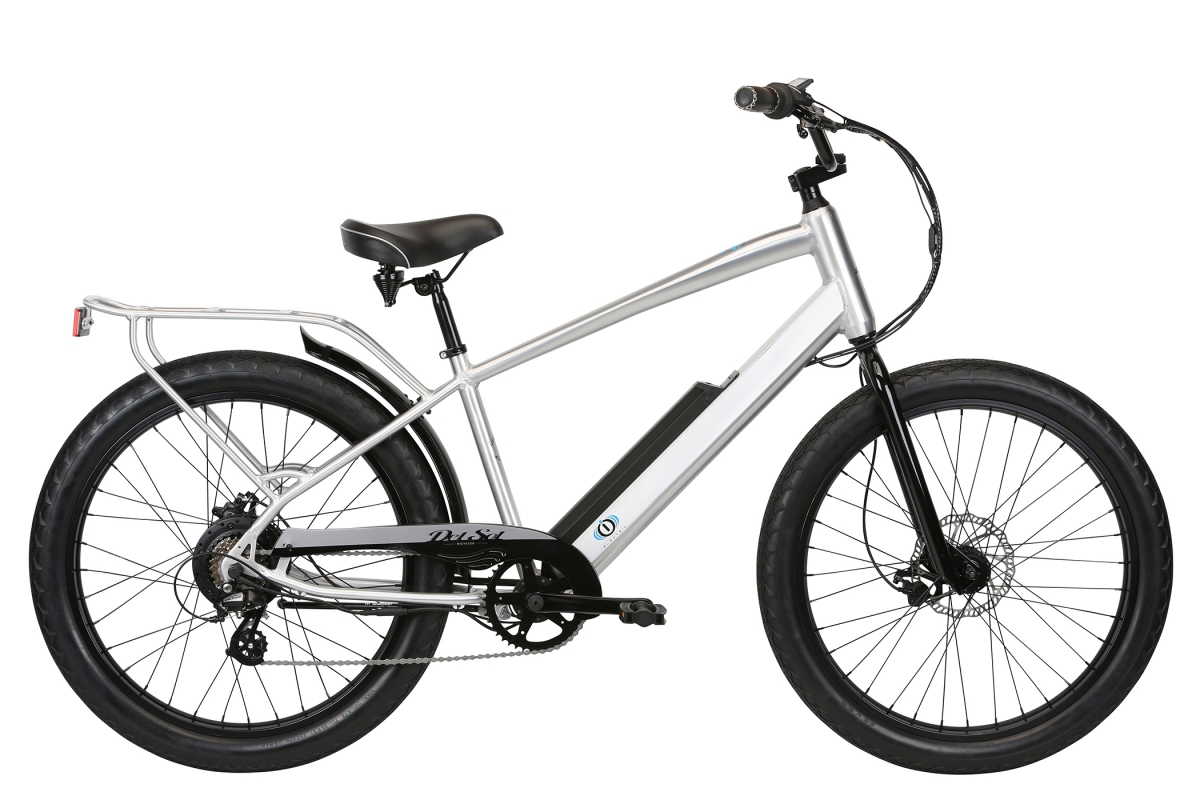

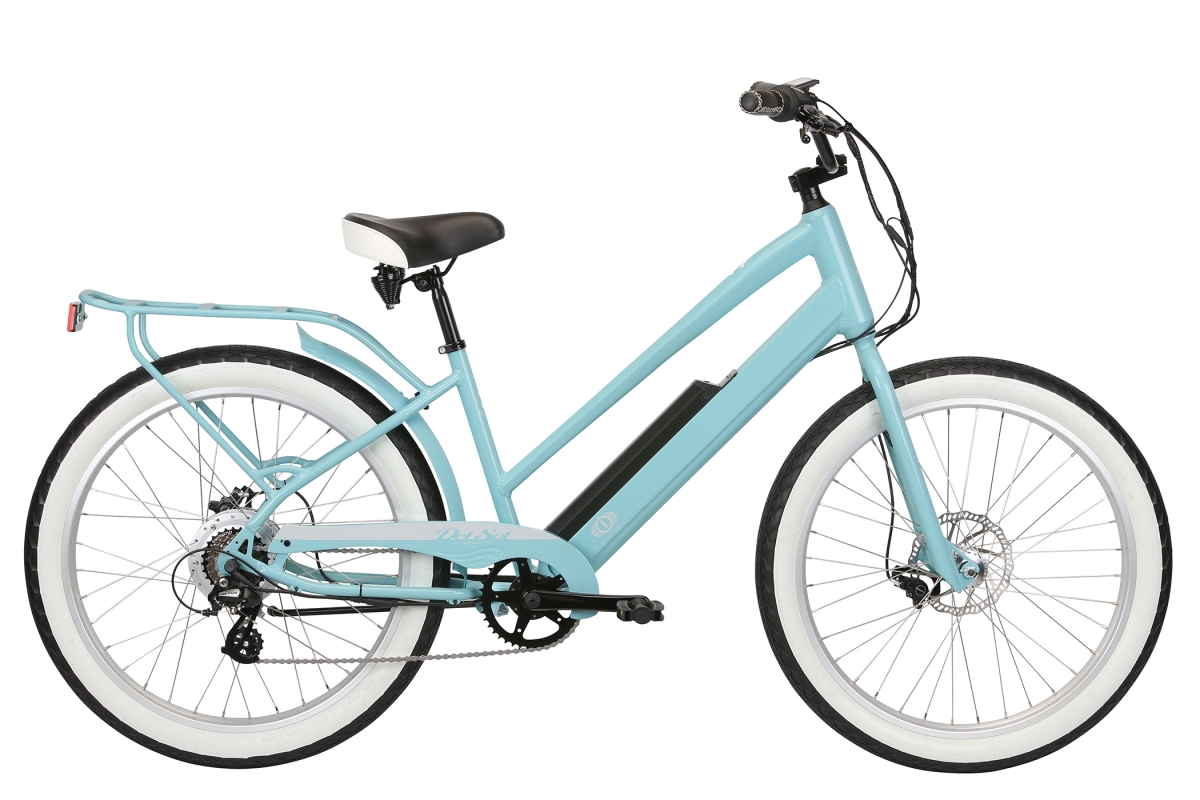

Railer Plus IO
| Year | 2019 |
|---|---|
| MSRP | $1,849.99 * |
| Sizes | |
| Colors | Black, Brushed Alloy, ST Black, Limpet Shell, ST Brushed Alloy |
| Weight |
Railer i/O's lightweight SuperCruise Plus 6061 alloy frame with integrated cargo/battery rack, cushy Plus-size 3" tires and hydraulic disc brakes team up with a powerful 36V 350W rear hub pedal-assist powerplant. The system utilizes Sanyo battery technology with 5 levels of assist and delivers an estimated 30 to 50 miles of range depending on mode. Full recharge time is just 4 hours.
FEATURES
- Lightweight alloy SuperCruise Plus i/O frame featuring longer, more laid-back geometry, and clearance for the biggest rubber for the smoothest cruise
- Moto-inspired Railer handlebar for the ultimate statement
- 350W Bafang hub motor
- Semi-integrated Samsung battery
- Integrated rear cargo rack
- Shimano Tourney 7-speed drivetrain with Revo twist shifter
- 3-piece alloy crankset
- Railer Plus 26" x 3" tires on super-wide 50mm alloy rims
- Rear moto-style shorty fender keeps you clean
- New Del Sol elastomer-sprung cruiser saddle
| Frame Components | |
|---|---|
| Frame | 6061 Alloy SuperCruise Plus for Hub Motor, semi-intergrated downtube battery, internal cables |
| Fork | Railer Hi-Ten Plus Cruiser |
| Headset | 1 1/8" Integrated Threadless |
| Drivetrain | |
| Cranks | Forged Alloy 3 Piece, 42t |
| Bottom Bracket | Sealed Cartridge |
| Chain | KMC Z51 |
| Front Derailleur | N/A |
| Rear Deralleur | Shimano Altus M310 |
| Derailleur Shifter | Shimano Revo |
| Drive Unit | Bafang 350w Hub Motor |
| Battery | Sanyo 2200mAh, semi-integrated |
| Pedals | Nylon Cruiser w/Kraton |
| Wheels | |
| Tires | Railer Plus 26 X 3.0" |
| Wheels/Rims | Railer Plus 50mm Rims |
| Hubs | Alloy Disc front, rear Motor disc |
| Freewheel/Cassette | Shimano TZ-21 14-28T, 7-spd |
| Braking System | |
| Brakes | Shimano MT-200 Hydraulic Disc |
| Brake Levers | Shimano MT-200 Hydraulic Disc |
| Other Components | |
| Grips | Del Sol Cruiser |
| Handle Bar | Railer Hi-Ten, 810mm Wide |
| Stem | Alloy Threadless |
| Seat | Del Sol Cruiser Springer |
| Seat Post | Alloy 27.2mm X 250mm |
| Seat Clamp | Alloy 31.8mm |
| Extras | Kickstand, Integrated Rack, Charger & Cables |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mens | 70° | 68° | 668mm (26.3") | 429mm (16.9") | 632mm (24.9") | 80mm | 700mm | 170mm | |||||||
| Womens | 70° | 68° | 668mm (26.3") | 391mm (15.4") | 658mm (25.9") | 80mm | 700mm | 170mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
