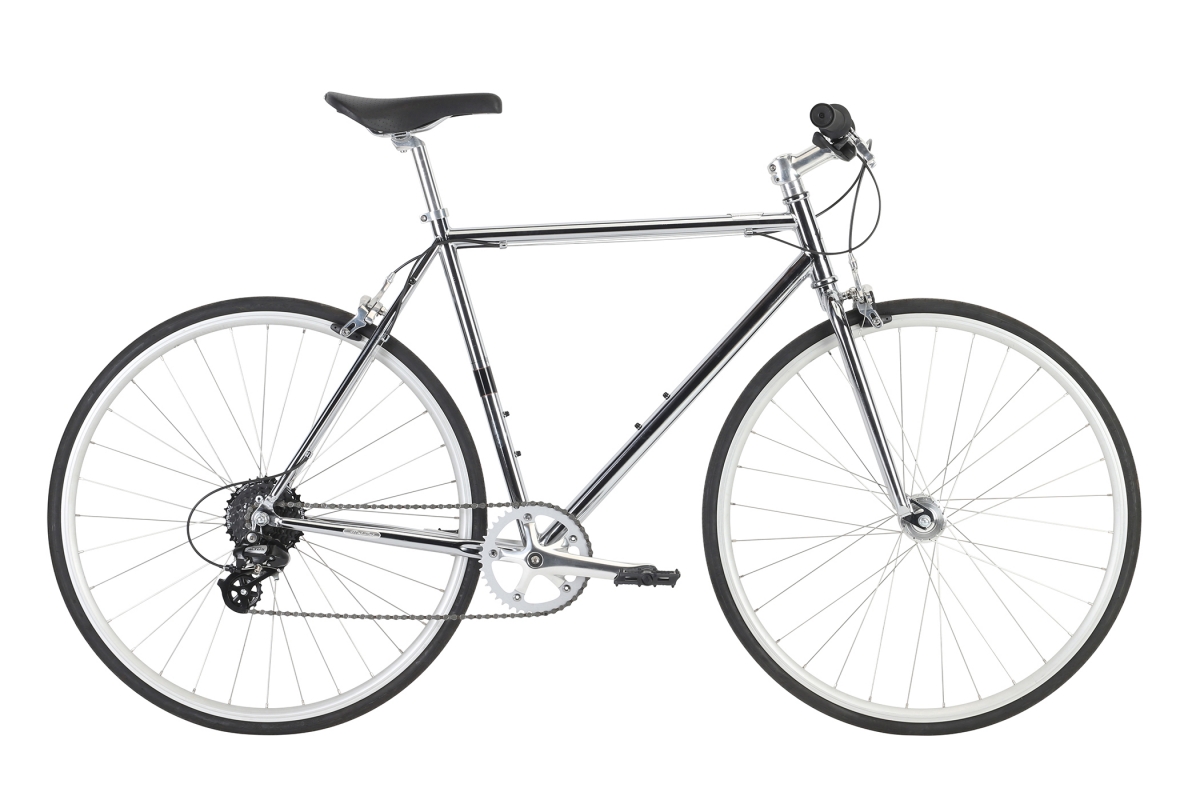

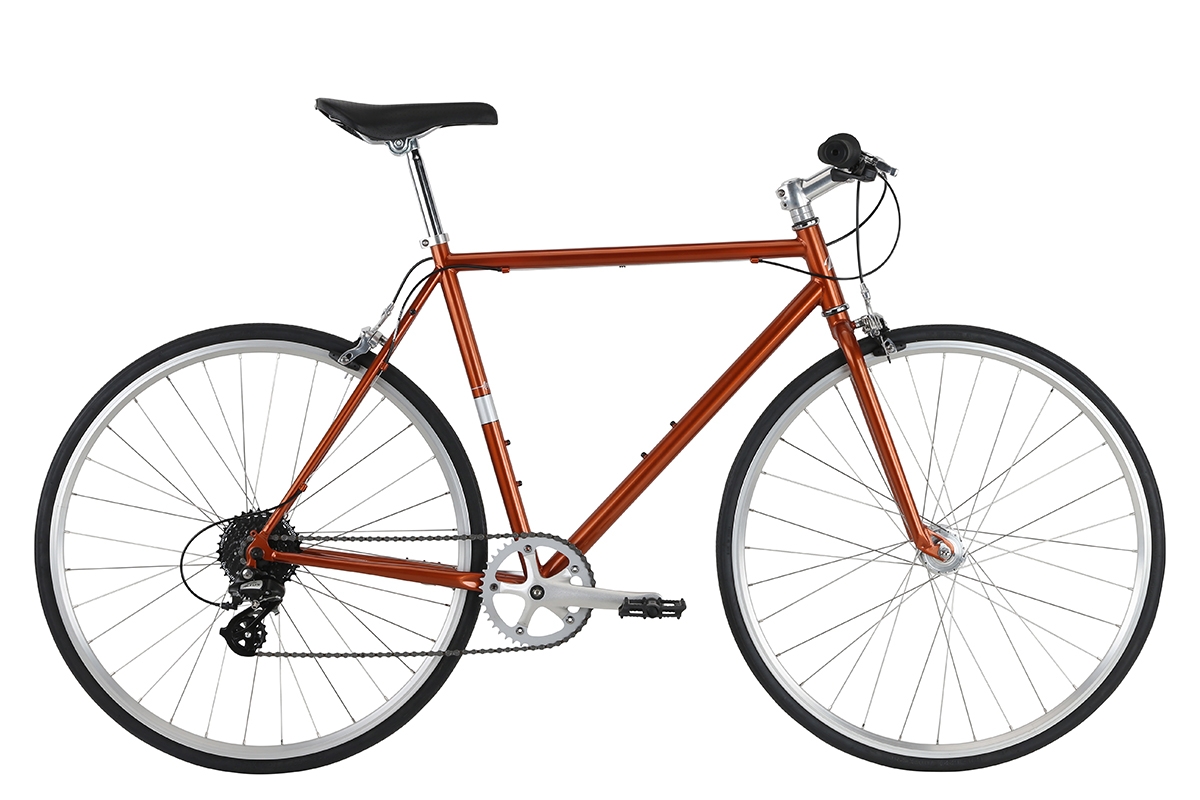

D Street Projekt 8 starts with the simplicity of a single speed, then dials up the versatility a notch with 8 terrain conquering speeds from Shimano with Tektro 317 brakes front and rear. It sports a riser bar that has a 30mm rise and a 600mm width. Alloy 32-hole rims keep things light, stainless steel spokes keep things clean, Kenda 700x28c tires keep things smooth. Like all D Streets, the Projekt 8 is elegant and understated. If flies straight and true, just like you...
FEATURES
- Custom D-Street hi ten single speed frameset with track dropouts
- Alloy 3-piece crankset with sealed BB
- Shimano 8 speed drivetrain
- Tektro R317 brakeset
- Kenda 700 x 28c tires
- Sturdy 32 hole alloy wheelset with doublewall rims
- Steel riser 30mm, 600mm width handlebar
| Frame Components | |
|---|---|
| Frame | D-Street Hi-Ten Urban w/Vertical Dropouts |
| Fork | Rigid Hi-Ten |
| Headset | 1 1/8" Threadless |
| Drivetrain | |
| Cranks | Forged Alloy 3 Piece, 42t |
| Bottom Bracket | Sealed Cartridge |
| Chain | KMC Z72 |
| Front Derailleur | N/A |
| Rear Deralleur | Shimano Tourney TY300D |
| Derailleur Shifter | Shimano Altus M310 |
| Pedals | Wellgo Nylon Body |
| Wheels | |
| Tires | Kenda K176, 700 X 28c |
| Wheels/Rims | Double-Wall Alloy |
| Hubs | Alloy Track Style. 32h |
| Freewheel/Cassette | Shimano HG20 12-32t 8spd |
| Braking System | |
| Brakes | Tektro R317 |
| Brake Levers | Tektro Hal89A |
| Other Components | |
| Grips | Projekt BMX Style |
| Handle Bar | Steel Riser, 30mm Rise, 600mm Width |
| Stem | Forged Alloy, 10 Degree Rise |
| Seat | D-Street Padded Retro |
| Seat Post | Steel 25.4mm X 250mm |
| Seat Clamp | Alloy Single Bolt |
| Extras | Rack & Fender Mounts |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS / 49 | 70° | 74.5° | 533mm (21") | 490mm (19.3") | 423mm (16.7") | 1018mm (40.1") | 29.8mm (1.2") | 75mm | 600mm | 170mm | |||||
| S / 52 | 70.5° | 74° | 542mm (21.3") | 520mm (20.5") | 423mm (16.7") | 1023mm (40.3") | 30.5mm (1.2") | 75mm | 600mm | 170mm | |||||
| M / 55 | 71° | 74° | 556mm (21.9") | 550mm (21.7") | 423mm (16.7") | 1034mm (40.7") | 31.6mm (1.2") | 90mm | 600mm | 170mm | |||||
| L / 58 | 72° | 74° | 575mm (22.6") | 580mm (22.8") | 423mm (16.7") | 1045mm (41.1") | 32.8mm (1.3") | 90mm | 600mm | 170mm | |||||
| XL / 61 | 72° | 73° | 595mm (23.4") | 610mm (24") | 423mm (16.7") | 1061mm (41.8") | 33.7mm (1.3") | 90mm | 600mm | 170mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
