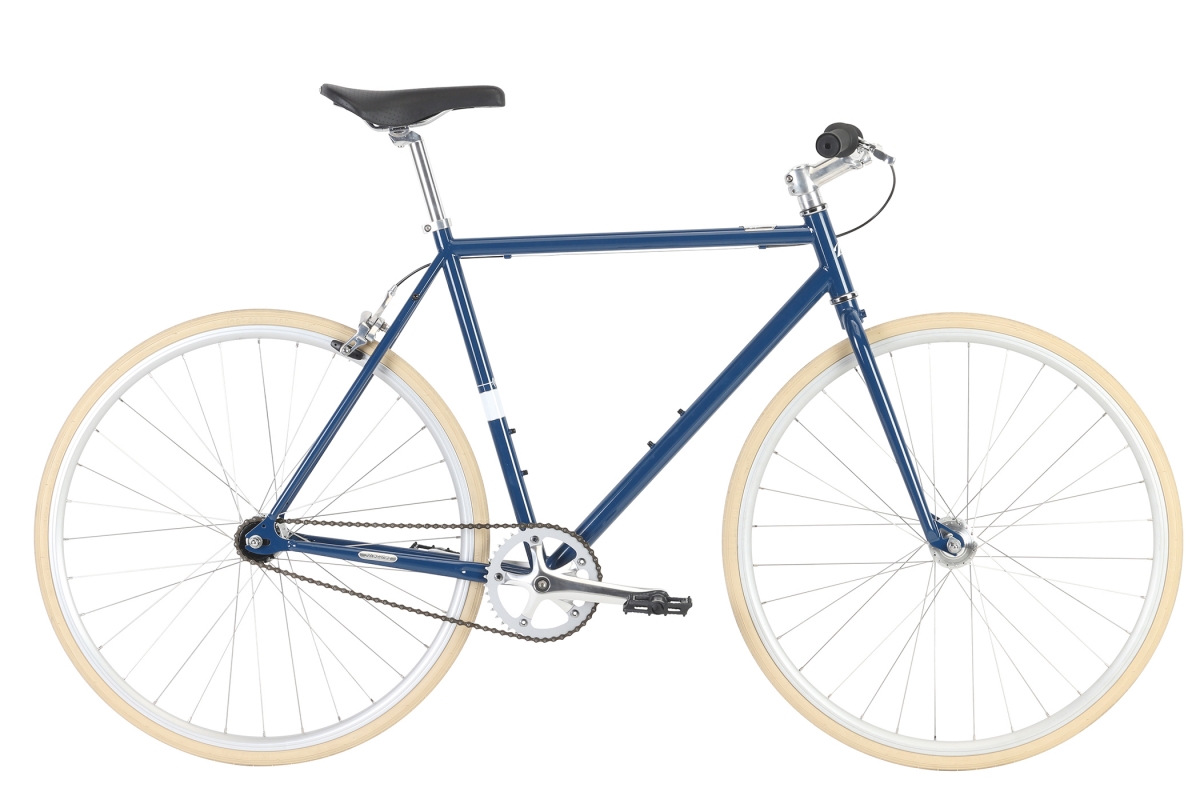

D Street Projekt, there's not much to say about it because there isn't a lot to it and that's the point, no gears, no flash, and no worries. Projekt comes with a D street frame complete with track dropouts. If you want to outfit it with fenders and racks for commuting, its got the mounts. Strong double wall rims and sturdy 32 hole alloy wheelset team up with a flip flop hub that lets you switch it up from fixed to single speed and back again. The Project has one vision, a small carbon foot print and a very big life.
FEATURES
- Custom D-Street hi ten single speed frameset with track dropouts
- Alloy 3-piece crankset with sealed BB
- Simple one-speed freewheel drivetrain
- Tektro R317 rear brake
- Kenda 700 x 28c tires
- Sturdy 32-hole alloy wheelset with doublewall rims
- Steel riser 30mm, 600mm width handlebar
| Frame Components | |
|---|---|
| Frame | D-Street Hi-Ten Singlespeed w/Track Dropouts |
| Fork | Rigid Hi-Ten |
| Headset | 1 1/8" Threadless |
| Drivetrain | |
| Cranks | Forged Alloy 3 Piece, 42t |
| Bottom Bracket | Sealed Cartridge |
| Chain | KMC Z410 |
| Front Derailleur | N/A |
| Rear Deralleur | N/A |
| Derailleur Shifter | N/A |
| Pedals | Wellgo Nylon Body |
| Wheels | |
| Tires | Kenda K176, 700 X 28c |
| Wheels/Rims | Double-Wall Alloy |
| Hubs | Alloy Track Style. 32h |
| Freewheel/Cassette | 16t Freewheel |
| Braking System | |
| Brakes | Tektro R317 Rear Only |
| Brake Levers | Tektro Hal89A |
| Other Components | |
| Grips | Projekt BMX Style |
| Handle Bar | Steel Riser, 30mm Rise, 600mm Width |
| Stem | Forged Alloy, 10 Degree Rise |
| Seat | D-Street Padded Retro |
| Seat Post | Steel 25.4mm X 250mm |
| Seat Clamp | Alloy Single Bolt |
| Extras | Rack & Fender Mounts |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS / 49 | 70° | 74.5° | 533mm (21") | 490mm (19.3") | 423mm (16.7") | 1018mm (40.1") | 29.8mm (1.2") | 75mm | 600mm | 170mm | |||||
| S / 52 | 70.5° | 74° | 542mm (21.3") | 520mm (20.5") | 423mm (16.7") | 1023mm (40.3") | 30.5mm (1.2") | 75mm | 600mm | 170mm | |||||
| M / 55 | 71° | 74° | 556mm (21.9") | 550mm (21.7") | 423mm (16.7") | 1034mm (40.7") | 31.6mm (1.2") | 90mm | 600mm | 170mm | |||||
| L / 58 | 72° | 74° | 575mm (22.6") | 580mm (22.8") | 423mm (16.7") | 1045mm (41.1") | 32.8mm (1.3") | 90mm | 600mm | 170mm | |||||
| XL / 61 | 72° | 73° | 595mm (23.4") | 610mm (24") | 423mm (16.7") | 1061mm (41.8") | 33.7mm (1.3") | 90mm | 600mm | 170mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
