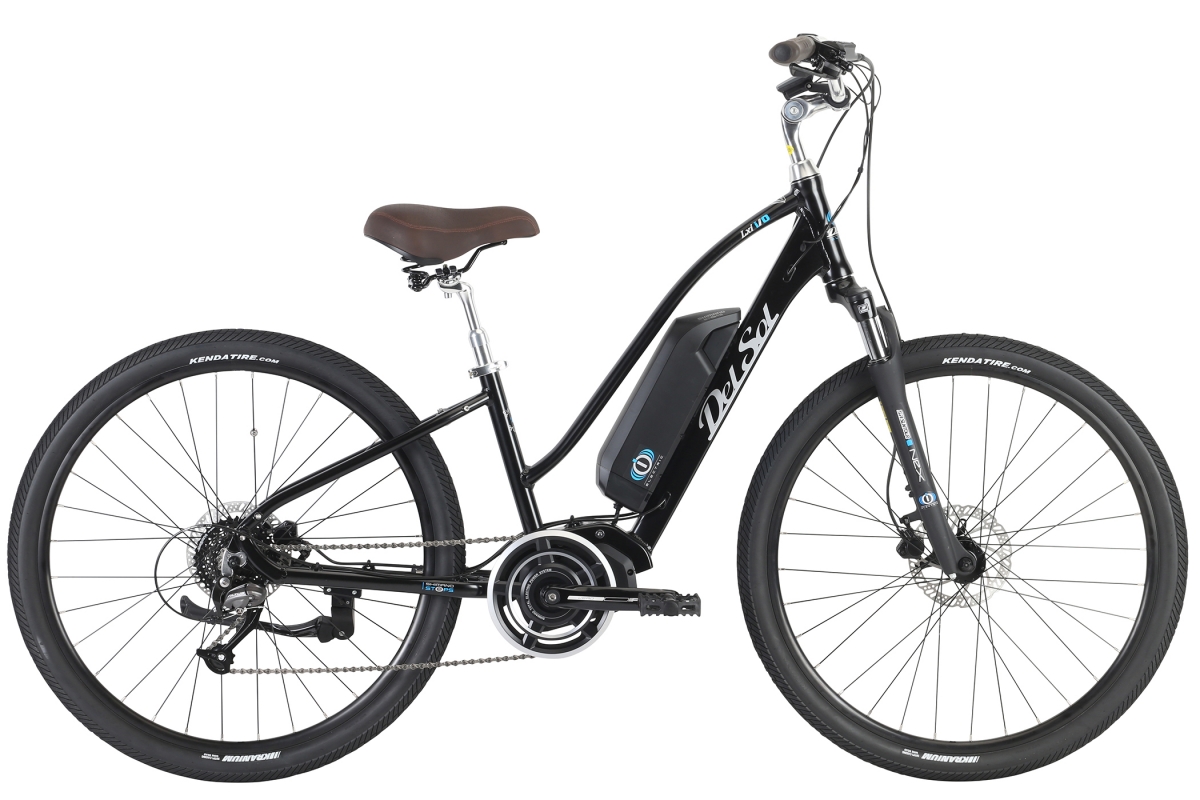

Lxi IO
| Year | 2018 |
|---|---|
| MSRP | $2,599.99 * |
| Sizes | 14", 17", 20" |

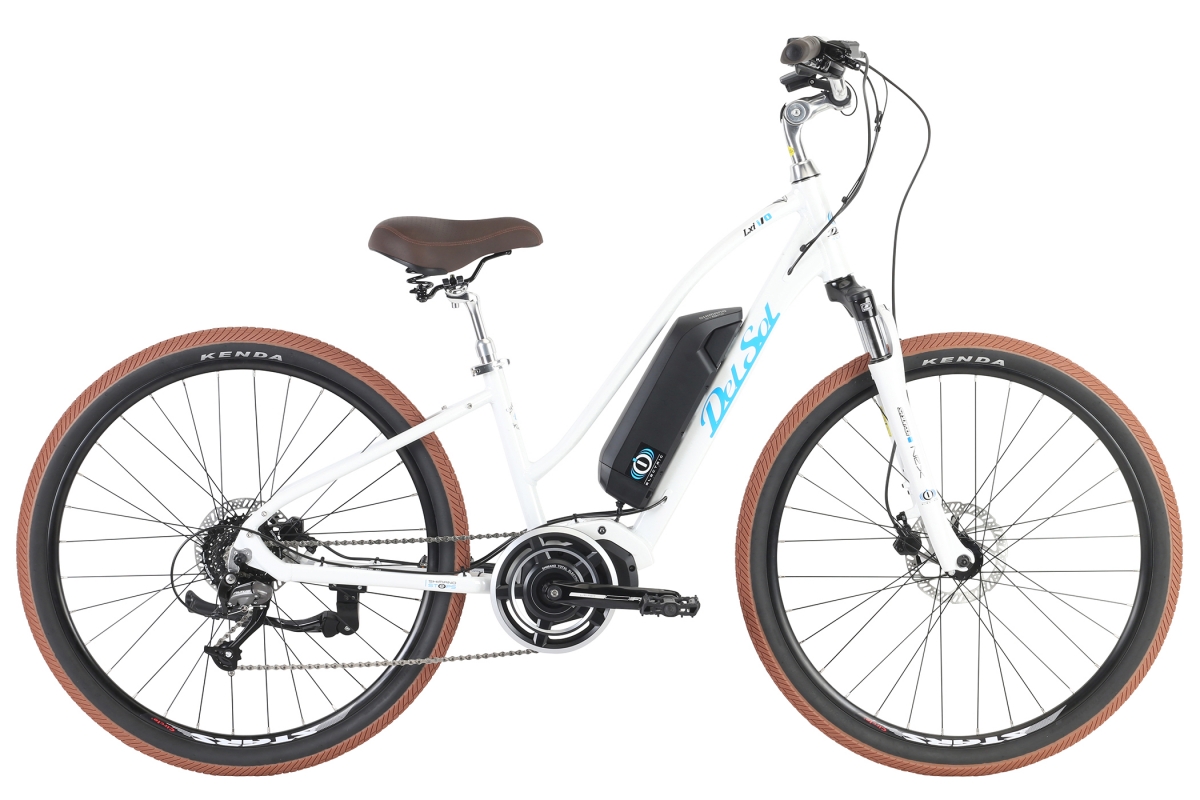

| Colors | Black, Black ST, White ST |
| Weight |
New for 2018, the LXI i/O brings the future to you. Featuring Shimano's renowned STePS center-drive eBike system, and built around Del Sol's proven upright comfort geometry, the i/O is the ultimate in pedal-assisted convenience.
FEATURES
- Lightweight Del Sol 6061 aluminum frame with Del Sol's proven upright comfort geometry
- SR Suntour NEX DS 63mm travel fork
- 418wH Shimano STePS battery for up to 60 mile range
- Shimano 9-speed Altus drivetrain
- Adjustable-angle alloy stem and lightweight alloy riser bars mean you find the perfect fit, no matter the rider
- Custom Del Sol comfort plus saddle with suspension seatpost
- Super smooth Kenda Kwick 27.5" x 1.75" all-purpose tires
- Powerful Tektro Auriga hydraulic disc brakes ensure all-condition stopping power
- SR Suntour NEX HLO 63mm travel fork w/lock out
- Shimano 9-speed Altus drivetrain
| Frame Components | |
|---|---|
| Frame | LXI i/O 27.5" Comfort 6061 Alloy for Shimano STePS |
| Fork | SR Suntour NEX DS 50mm travel |
| Headset | 1 1/8" Integrated Threadless |
| Drivetrain | |
| Cranks | Shimano STePS |
| Bottom Bracket | N/A |
| Chain | KMC X9-E |
| Front Derailleur | N/A |
| Rear Deralleur | Shimano Altus M370 |
| Derailleur Shifter | Shimano Altus M370 |
| Drive Unit | Shimano STePS E6050 |
| Battery | Shimano STePS 418wH |
| Pedals | Comfort w/Kraton Rubber Inserts |
| Wheels | |
| Tires | Kenda Kwick Nine, 27.5 X 1.75" |
| Wheels/Rims | Double-Wall Alloy |
| Hubs | Alloy Disc, 32H |
| Freewheel/Cassette | Shimano HG-200 11-34T, 9-spd |
| Braking System | |
| Brakes | Tektro Auriga Hydraulic Disc |
| Brake Levers | Tektro Auriga Hydraulic Disc |
| Other Components | |
| Grips | Del Sol Comfort Dual Density |
| Handle Bar | Alloy Riser Bar, 80mm Rise, 680mm Width |
| Stem | Alloy Threadless, Adjustable Rise |
| Seat | Del Sol Comfort Springer |
| Seat Post | Alloy Suspension, 27.2 X 300mm |
| Seat Clamp | Alloy QR, 31.8mm |
| Extras | Kickstand, Rack & Fender Mounts, Charger & Cables |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S / 14 ST | 70.5° | 74° | 566mm (22.3") | 356mm (14") | 450mm (17.7") | 1036mm (40.8") | 622mm (24.5") | 90mm | 685mm | 170mm | |||||
| M / 17 ST | 70.5° | 74° | 597mm (23.5") | 432mm (17") | 450mm (17.7") | 1062mm (41.8") | 648mm (25.5") | 100mm | 685mm | 170mm | |||||
| S / 14 | 70.5° | 74° | 569mm (22.4") | 356mm (14") | 450mm (17.7") | 1031mm (40.6") | 777mm (30.6") | 90mm | 685mm | 170mm | |||||
| M / 17 | 70.5° | 74° | 577mm (22.7") | 432mm (17") | 450mm (17.7") | 1062mm (41.8") | 826mm (32.5") | 100mm | 685mm | 170mm | |||||
| L / 20 | 71° | 73° | 599mm (23.6") | 508mm (20") | 450mm (17.7") | 1069mm (42.1") | 851mm (33.5") | 110mm | 685mm | 175mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
