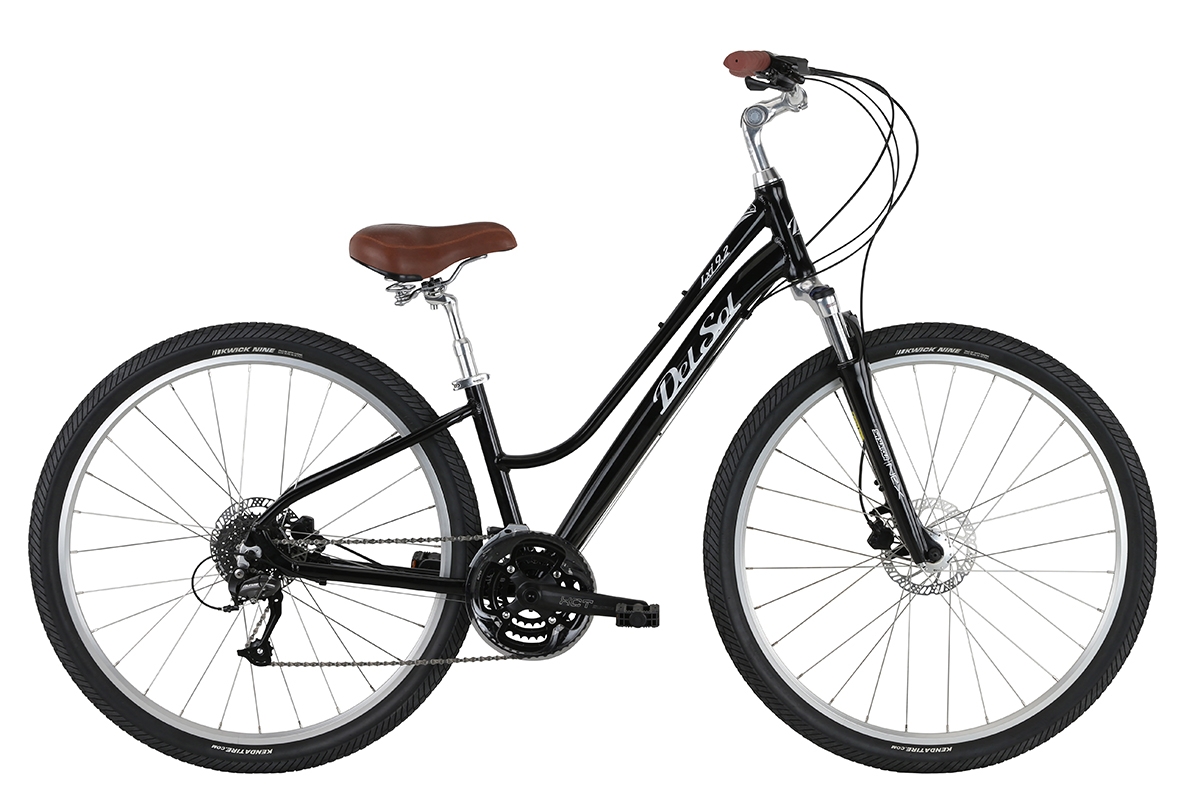

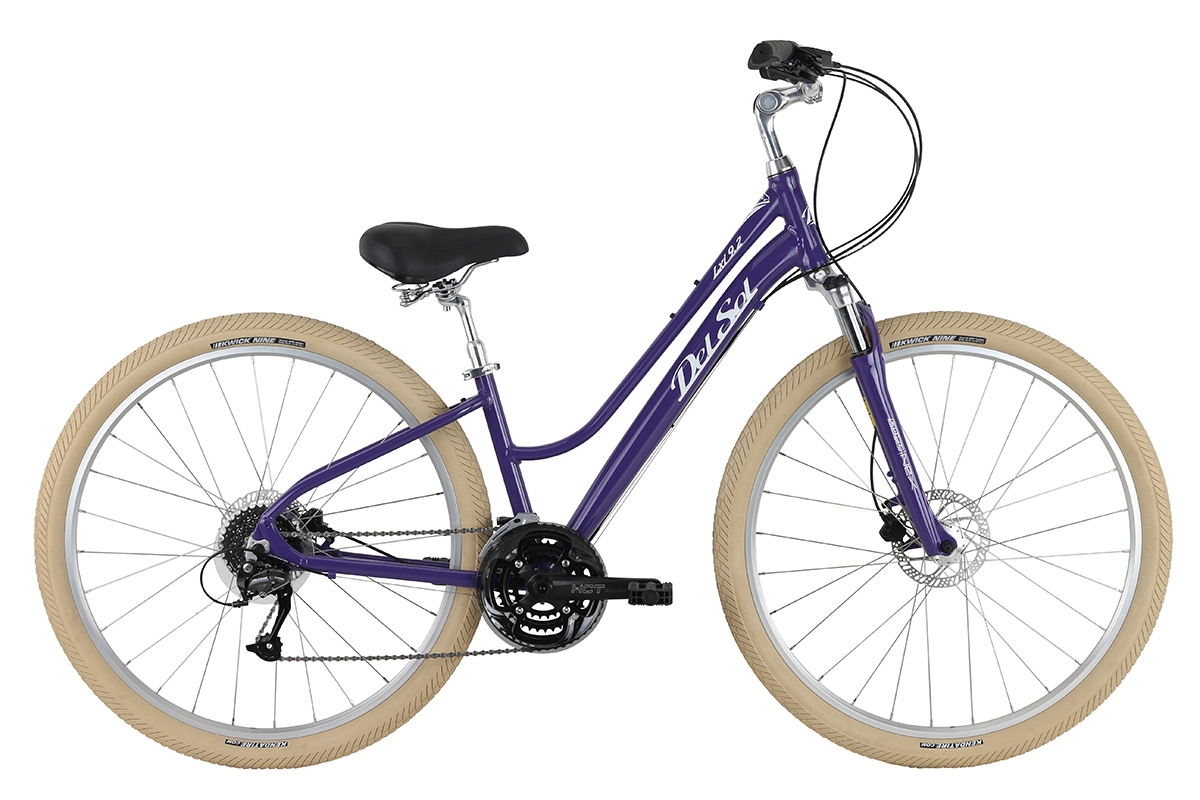

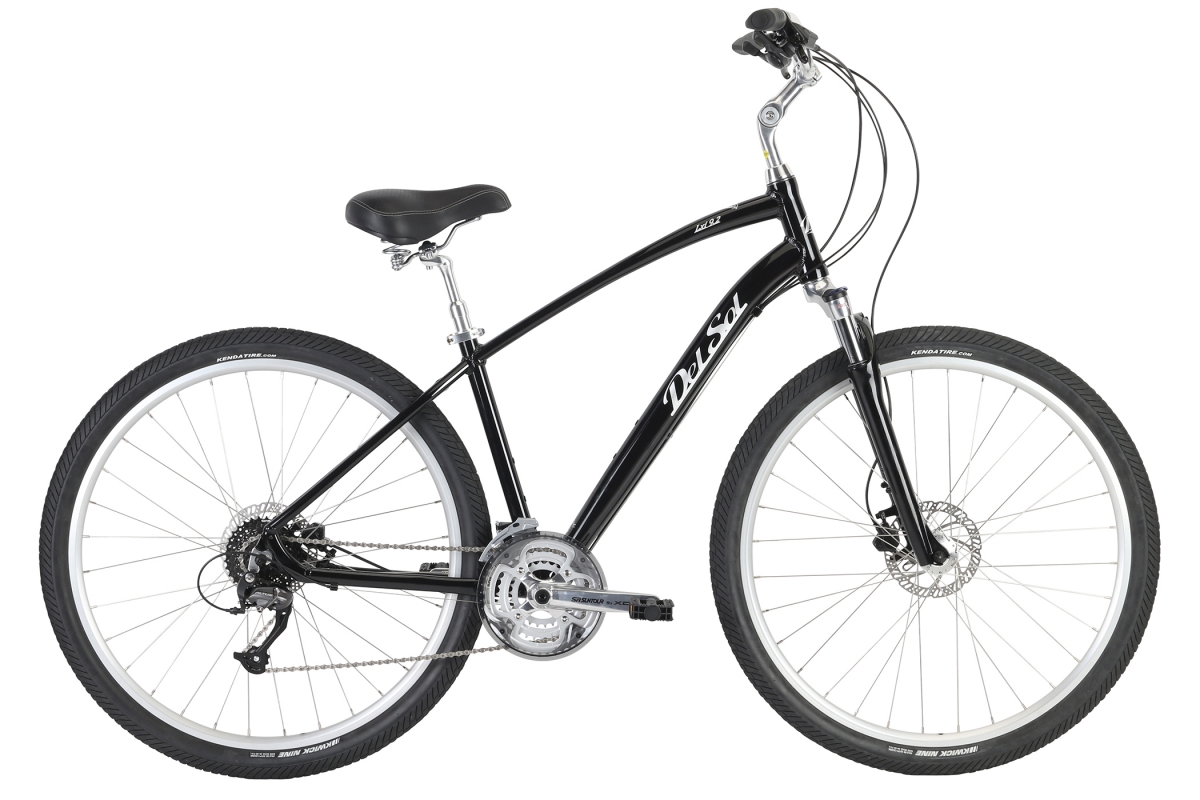

Go big or go home they say. We're thinking they were referring to the LXi 9.2, the ultimate expression of modern comfort. With whopping 29'r rims and 29"x2" all purpose Kenda Kwick 9 tires, the 9.2 is the go anywhere be anything solution. 9.2 comes in both a standard as well as a step-thru upright frame and comes complete with a Shimano 27 speed drive train that makes it go, and reliable Tektro Auriga hydraulic disc brakes to make it stop. And unlike all the other "29’r's" you’ve probably heard about, this one’s nearly as comfortable as your EZ Boy recliner thanks to its collection of LXi comfort cockpit components.
FEATURES
- Lightweight Del Sol 6061 aluminum frame with Step-Thru option
- SR Suntour NEX HLO 63mm travel fork w/lock out
- Shimano 27-speed Acera drivetrain
- Adjustable-angle alloy stem and lightweight steel riser bars mean you find the perfect fit, no matter the rider
- Custom Del Sol comfort plus saddle
- Super-smooth Kenda 29" x 2" all-purpose tires
- Powerful Tektro Auriga hydraulic disc brakes ensure all-condition stopping power
- Suspension seatpost
| Frame Components | |
|---|---|
| Frame | LXI 29" Comfort Oversized 6061 Aluminum |
| Fork | SR Suntour Nex HLO 63mm Travel w/ Hydraulic Lockout |
| Headset | 1 1/8" Integrated |
| Drivetrain | |
| Cranks | SR Suntour XCT 418, 48/38/28t |
| Bottom Bracket | Sealed Cartridge |
| Chain | KMC X9 |
| Front Derailleur | Shimano Altus M2000 (M370 ST model) |
| Rear Deralleur | Shimano Altus M2000 |
| Derailleur Shifter | Shimano Altus M2000 |
| Pedals | Comfort w/Kraton Rubber Inserts |
| Wheels | |
| Tires | Kenda Kwick Nine, 29 X 2.0" |
| Wheels/Rims | Double-Wall Alloy |
| Hubs | Alloy Disc, 32H |
| Freewheel/Cassette | Shimano HG-200 12-32T, 9-spd |
| Braking System | |
| Brakes | Tektro Auriga Hydraulic Disc |
| Brake Levers | Tektro Auriga Hydraulic Disc |
| Other Components | |
| Grips | Del Sol Comfort Dual Density |
| Handle Bar | Alloy Riser Bar, 80mm Rise, 680mm Width |
| Stem | Alloy Quill, Adjustable Rise |
| Seat | Del Sol Comfort Springer |
| Seat Post | Alloy Suspension, 27.2 X 300mm |
| Seat Clamp | Alloy QR, 31.8mm |
| Extras | Rack & Fender Mounts |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S / 14 ST | 70.5° | 74° | 587mm (23.1") | 356mm (14") | 450mm (17.7") | 1036mm (40.8") | 627mm (24.7") | 90mm | 680mm | 170mm | |||||
| M / 17 ST | 70.5° | 74° | 597mm (23.5") | 432mm (17") | 450mm (17.7") | 1062mm (41.8") | 655mm (25.8") | 100mm | 680mm | 170mm | |||||
| S / 14 | 70.5° | 74° | 536mm (21.1") | 356mm (14") | 450mm (17.7") | 1031mm (40.6") | 777mm (30.6") | 90mm | 680mm | 170mm | |||||
| M / 17 | 70.5° | 74° | 549mm (21.6") | 432mm (17") | 450mm (17.7") | 1062mm (41.8") | 826mm (32.5") | 100mm | 680mm | 170mm | |||||
| L / 20 | 71° | 73° | 559mm (22") | 508mm (20") | 450mm (17.7") | 1069mm (42.1") | 851mm (33.5") | 110mm | 680mm | 170mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
