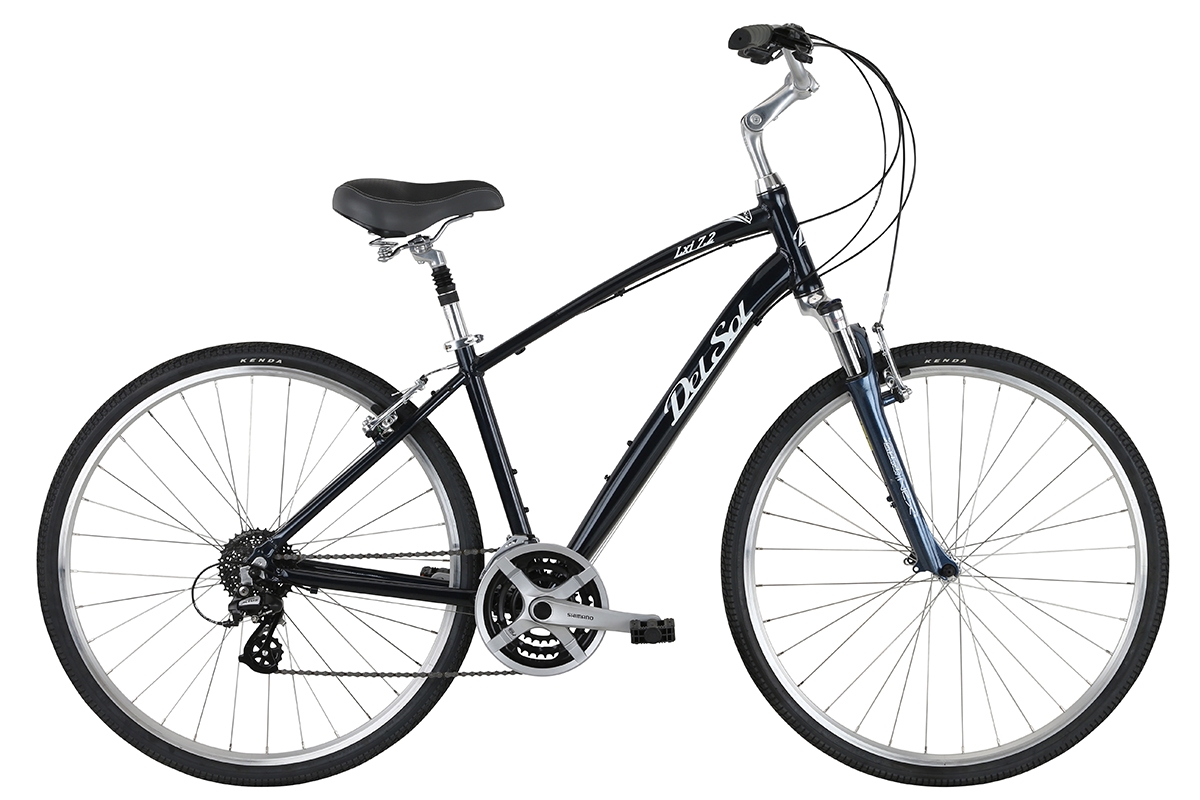

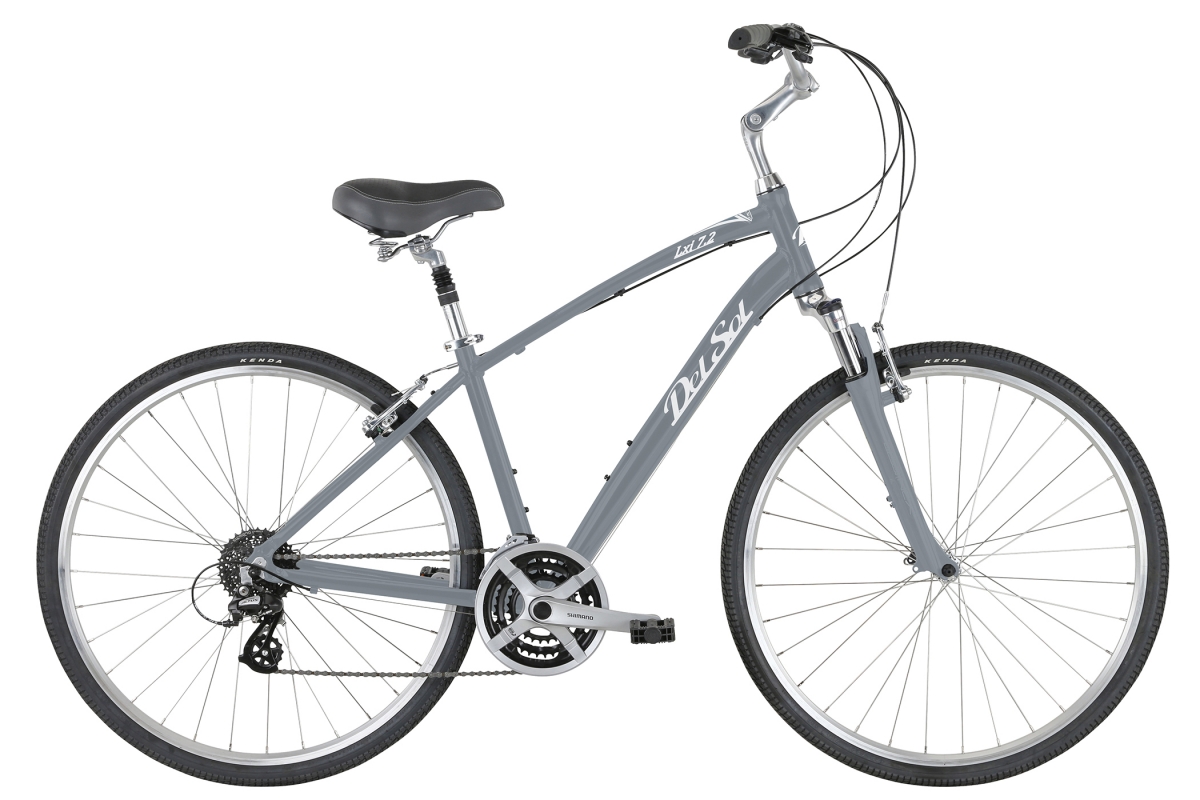

Simplify the ride with the LXi 7.2, a bike that offers a great blend of comfort and performance. Enjoy the light weight 6000 series aluminum frame paired with an upgraded suspension fork with a whopping 63mm of travel. The Suntour NEX HLO fork features a lock out that allows you to convert the fork from suspension to rigid with a flick of a switch minimizing frame movement and maximizing pedal efficiency. LXi 7.2 features a 24 speed drive train but don’t let its versatility and long distance capabilities fool you, it’s still built standard with all the comfort features that come standard on every LXi we make.
FEATURES

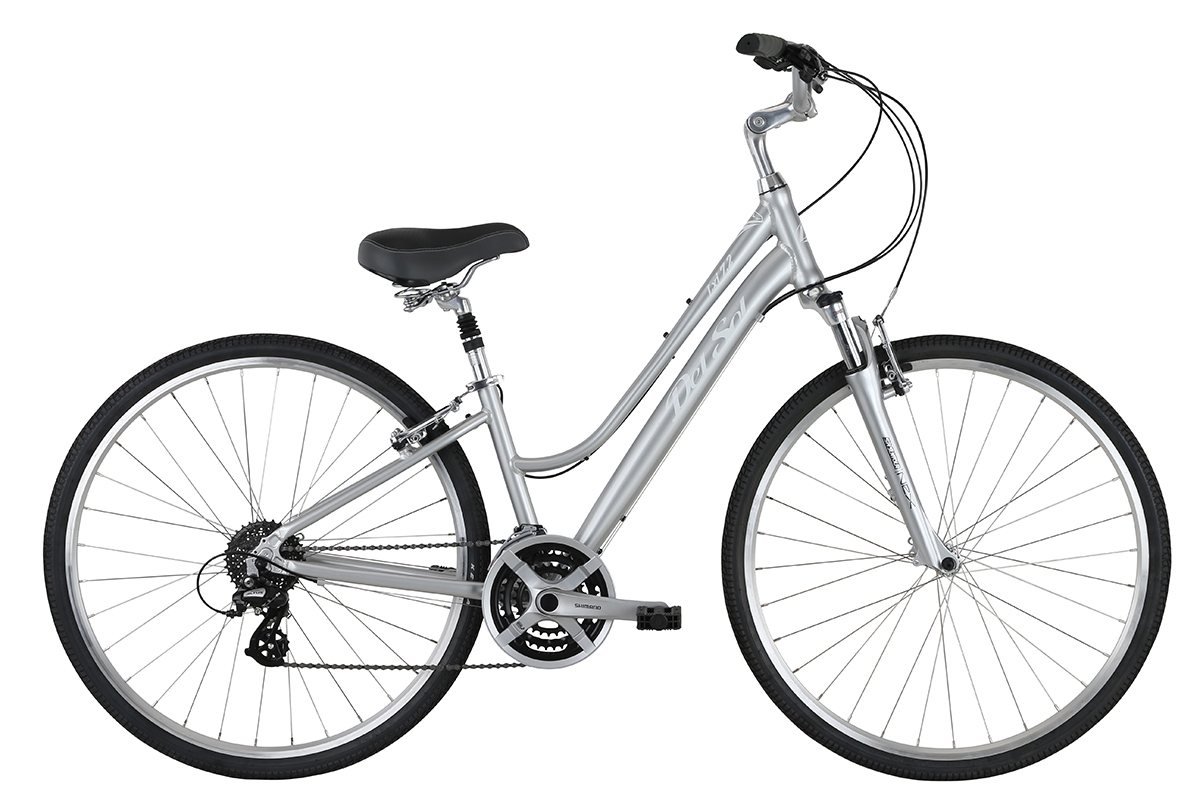

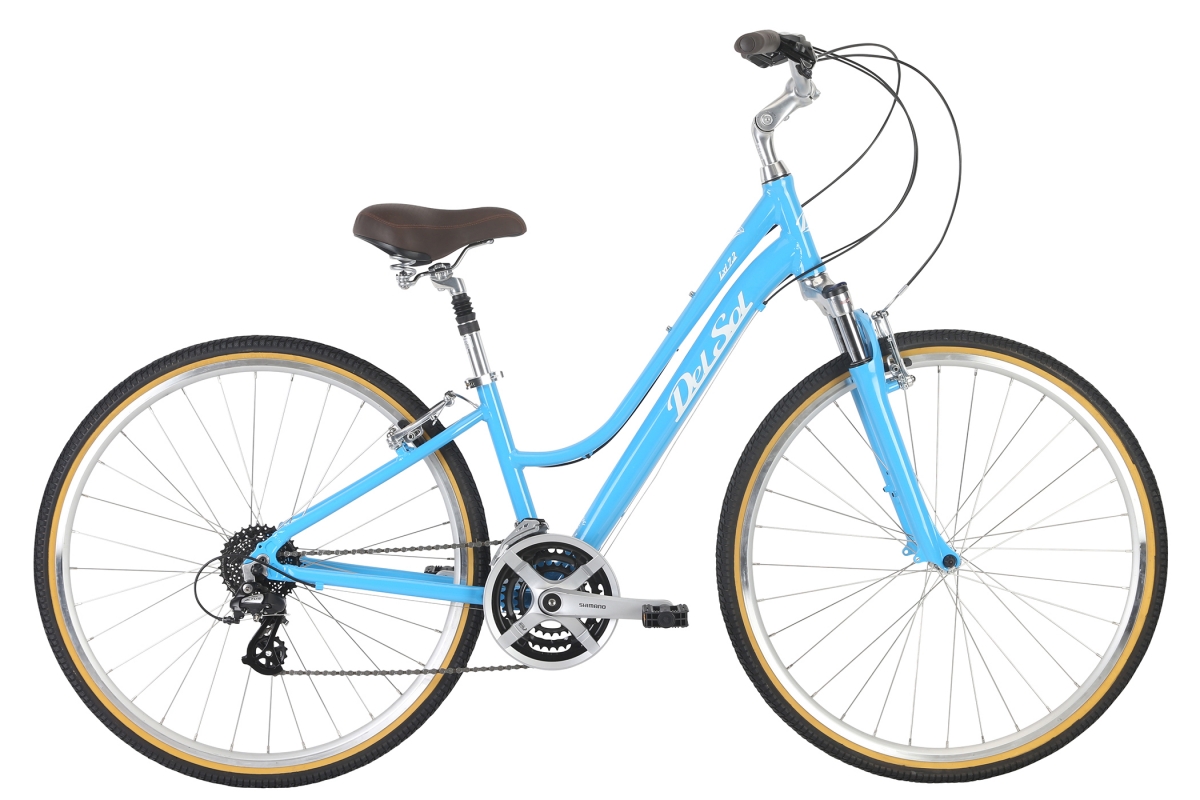

- Lightweight Del Sol 6061 aluminum frame with Step-Thru option
- SR Suntour NEX HLO 63mm travel fork w/lock out
- Shimano 24-speed Altus derailleurs with EZ-Fire shifters
- Shimano TY501 crankset
- Adjustable-angle alloy stem and lightweight steel riser bars mean you find the perfect fit, no matter the rider
- Custom Del Sol comfort plush saddle & suspension seatpost ensure a comfortable ride
- Lightweight 32-hole alloy wheelset with doublewall rims
| Frame Components | |
|---|---|
| Frame | LXI 700c Comfort Oversized 6061 Aluminum |
| Fork | SR Suntour Nex HLO 63mm Travel w/ Hydraulic Lockout |
| Headset | 1 1/8" Integrated |
| Drivetrain | |
| Cranks | Shimano TY501 48/38/28t |
| Bottom Bracket | Sealed Cartridge |
| Chain | KMC Z72 |
| Front Derailleur | Shimano Tourney TY710 |
| Rear Deralleur | Shimano Altus M310 |
| Derailleur Shifter | Shimano EF51 |
| Pedals | Comfort w/Kraton Rubber Inserts |
| Wheels | |
| Tires | Kenda Komfort 700cx38mm |
| Wheels/Rims | Double-Wall Alloy |
| Hubs | Alloy, 32H |
| Freewheel/Cassette | Shimano HG-31 11-32t 8-spd |
| Braking System | |
| Brakes | Alloy Linear Pull |
| Brake Levers | Shimano EF51 |
| Other Components | |
| Grips | Del Sol Comfort Dual Density |
| Handle Bar | Steel Riser Bar, 80mm Rise, 680mm Width |
| Stem | Alloy Quill, Adjustable Rise |
| Seat | Del Sol Comfort Springer |
| Seat Post | Alloy Suspension, 27.2 X 300mm |
| Seat Clamp | Alloy QR, 31.8mm |
| Extras | Rack & Fender Mounts |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S / 14 ST | 70.5° | 74° | 587mm (23.1") | 356mm (14") | 450mm (17.7") | 1036mm (40.8") | 625mm (24.6") | 90mm | 680mm | 170mm | |||||
| M / 17 ST | 70.5° | 74° | 597mm (23.5") | 432mm (17") | 450mm (17.7") | 1062mm (41.8") | 638mm (25.1") | 100mm | 680mm | 170mm | |||||
| S / 14 | 70.5° | 74° | 536mm (21.1") | 356mm (14") | 450mm (17.7") | 1031mm (40.6") | 673mm (26.5") | 90mm | 680mm | 170mm | |||||
| M / 17 | 70.5° | 74° | 549mm (21.6") | 432mm (17") | 450mm (17.7") | 1062mm (41.8") | 701mm (27.6") | 100mm | 680mm | 170mm | |||||
| L / 20 | 71° | 73° | 559mm (22") | 508mm (20") | 450mm (17.7") | 1069mm (42.1") | 737mm (29") | 110mm | 680mm | 170mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
