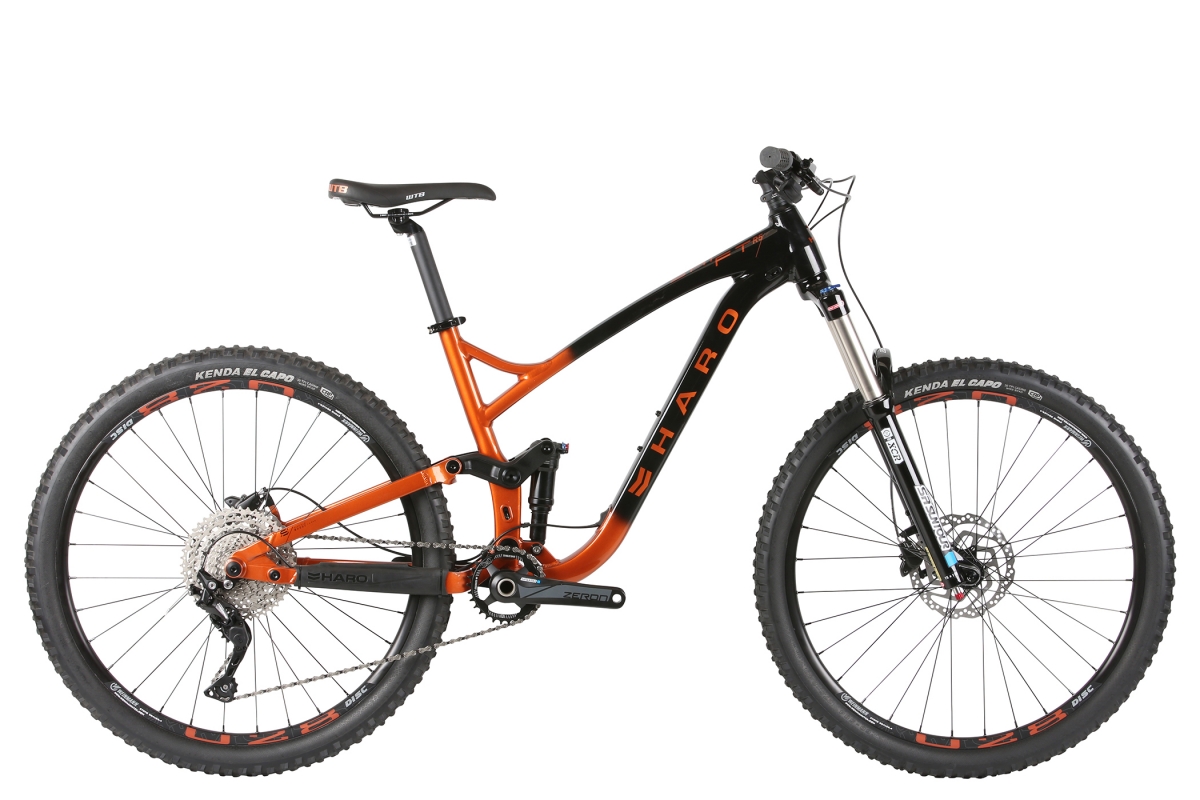

As the first model in our new 2020 Shift R line, the R5 27.5" model is the perfect combination of frame design and components to start shredding the trails. Built around our new 4-bar linkage frame with up-to-date geometry and proprietary X6 aluminum tubing, the new Shift R5 features a steeper seat tube angle for more efficient pedaling, a slacker head tube angle (at 67 degrees) and a longer reach for an improved riding position. With 120mm of rear travel and 130mm of front suspension provided by X-Fusion and Suntour respectively, the Shift R5, with its newly updated 2021 Shimano Deore 11-speed components and 11-51T cassette, provides a smooth ride up or down the trails, with a wide-range gear ratio and precise, crisp shifting.
FEATURES
- New X6 Alloy Shift R 4-Bar Linkage frame, 120mm rear travel, w/ Boost thru-axle
- X-Fusion O2 Pro RL Trunnion rear shock w/ lockout
- SR XCR-34 Air Boost fork, 27.5": 130mm travel
- Suntour Zeron 1x Boost crankset, 30T
- New Shimano Deore M5100 Shadow+ 11-spd rear derailleur & shifter
- New Shimano Deore M5100 11-spd 11-51T cassette
- Shimano MT-400 hubs w/ thru-axles
- New Shimano MT-201 hydraulic brakeset
- WTB Volt Sport saddle
| Frame Components | |
|---|---|
| Frame | New MY20 X6 series alloy dual suspended 4-Bar linkage frame, 120mm rear travel, tapered 1.5" head tube, 73mm BB shell, Enduro bearings, Boost 12mm thru-axle dropouts |
| Fork | XCR-34 Air, Boost, 27.5", Steel stanchions, 1.5" tapered alloy steerer, 130mm travel, w/ hydraulic lockout, w/ Thru-Axle |
| Headset | FPD DOZER-1160A-2 w/ 1.5" ACB bottom for 44/56mm head tube, W/ 8mm Top Cone |
| Frame Shock | X-Fusion 02 Pro R, Trunnion, 165x42.5mm w/ Rebound adjuster |
| Drivetrain | |
| Cranks | Suntour Zeron 1X AX-S-BT-30, Boost, 30T Steel Zig-Zag Chainring |
| Bottom Bracket | Suntour BB-BKA008-C, 73mm, sealed cartridge |
| Chain | KMC X11 NP/GY, w/ Missing Link |
| Rear Deralleur | New Shimano Deore RD-M5100, 11-spd, Top Normal, Shadow Plus design |
| Derailleur Shifter | New Shimano Deore M5100, right only, 1x11-spd, w/ optical gear display |
| Pedals | N/A |
| Wheels | |
| Tires | Kenda Regolith, 27.5x2.4" |
| Wheels/Rims | Weinmann U-28 Disc 27.5" x 32h alloy double wall |
| Hubs | Shimano MT400-B, Boost Disc alloy 32h, 15x110mm Frt & 12x148mm Rear Thru-Axles |
| Freewheel/Cassette | New Shimano Deore CS-M5100 11-spd 11-51T |
| Spokes | Stainless BED |
| Braking System | |
| Brakes | Shimano hydraulic BR-MT200 180/160mm Center Lock rotors |
| Brake Levers | Shimano BL-MT201 hydraulic |
| Other Components | |
| Grips | WTB Weirwolf |
| Handle Bar | Pivit alloy 20mm riser bar 31.8mm, 760mm, 9 Deg. sweep |
| Stem | Pivit alloy Trail 0 Deg., 4 bolts, ext.: 40mm |
| Seat | WTB Volt Sport w/ color accents |
| Seat Post | Pivit alloy micro adjust 31.6mm |
| Seat Clamp | Pivit alloy 35mm quick release |
| Extras | Frame bearings by Enduro USA |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 67° | 70° | 585mm (23") | 396mm (15.6") | 430mm (16.9") | 20mm (0.8") | 1141mm (44.9") | 587mm (23.1") | 425mm (16.7") | 533mm (21") | 44mm (1.7") | 40mm | 760mm | 170mm | |
| M | 67° | 70° | 613mm (24.1") | 433mm (17") | 430mm (16.9") | 20mm (0.8") | 1171mm (46.1") | 597mm (23.5") | 450mm (17.7") | 533mm (21") | 44mm (1.7") | 40mm | 760mm | 170mm | |
| L | 67° | 70° | 642mm (25.3") | 471mm (18.5") | 430mm (16.9") | 20mm (0.8") | 1199mm (47.2") | 606mm (23.9") | 475mm (18.7") | 533mm (21") | 44mm (1.7") | 40mm | 760mm | 170mm | |
| XL | 67° | 70° | 670mm (26.4") | 496mm (19.5") | 430mm (16.9") | 20mm (0.8") | 1223mm (48.1") | 615mm (24.2") | 500mm (19.7") | 533mm (21") | 44mm (1.7") | 40mm | 760mm | 170mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
