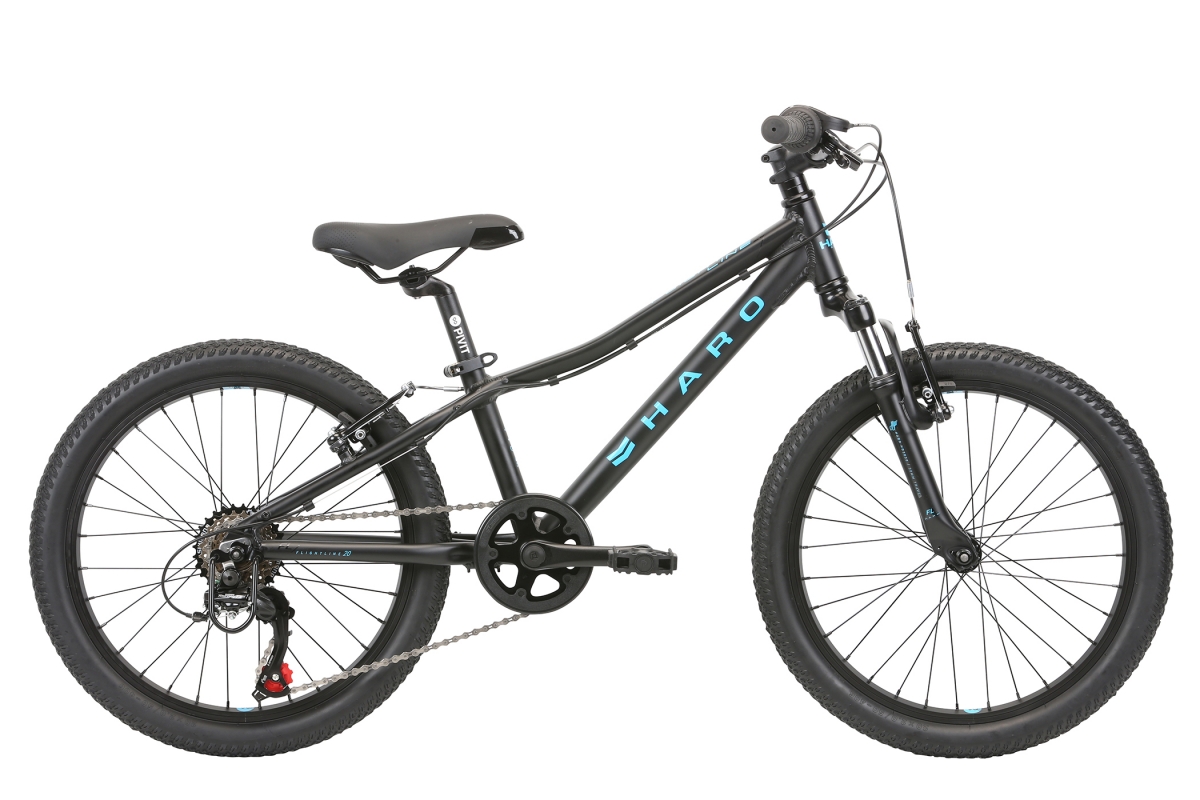

Flightline 20
| Year | 2020 |
|---|---|
| MSRP | $339.99 * |
| Sizes | 20" |
| Colors | Rorange/Black, Matte Black/Aqua, Pink/White |
| Weight | 22.5 lbs |
Thanks to its new lower stand-over height frame and 20" wheelset, the Flightline 20 is perfect for adventurous youngsters who love to ride but aren't quite ready for the larger 24" or 26" wheel-sizes yet. The FL 20 features Haro's updated FL3G low profile X6 alloy frame with a ton of stand-over clearance. Bumps don't stand a chance thanks to its suspension fork with 35mm of travel. The FL 20 features a kids-friendly 1x6-speed drive-train with a single chainring and Revo shifter to make it easier to switch gears.
FEATURES
- New MY20 Flightline 6000 Series alloy frame
- HL 410E suspension fork w/ 30mm travel
- 1-1/8" Threadless headset
- Alloy 32t crankset w/ double chainguard
- Sealed cartridge BB set
- Shimano Tourney TZ-50 rear derailleur
- Revo 6-spd shifter
- Alloy Pivit 25mm riser bar & melt forged stem, 31.8mm
- Alloy single wall 20" rims w/ 32h hubs
| Frame Components | |
|---|---|
| Frame | New 2020 Haro Flightline FL3G 6000 series alloy w/ V-Brake bosses |
| Fork | HL 410E 30mm travel |
| Headset | 1-1/8" threadless steel cups, loose ball, Nylon Top |
| Drivetrain | |
| Cranks | Alloy 32T w/ double chain guard, 5" / 127mm |
| Bottom Bracket | Sealed cartridge |
| Chain | KMC Z6 1/2"x3/32" |
| Rear Deralleur | Shimano Tourney TZ-500 |
| Derailleur Shifter | Shimano Revo 6-spd |
| Pedals | MTB nylon body |
| Wheels | |
| Tires | H-5129, 20" X2.0" |
| Wheels/Rims | Alloy single wall 20" |
| Hubs | Pivit steel 32h w/ nuts |
| Freewheel/Cassette | Shimano Tourney 6-spd freewheel 14-28T |
| Spokes | Steel BED |
| Braking System | |
| Brakes | Promax TX-121 V-Brakes |
| Brake Levers | Promax BL-81G, Short reach |
| Other Components | |
| Grips | Haro MTB |
| Handle Bar | Pivit alloy 25mm riser bar, 31.8mm O.D. |
| Stem | Pivit melt forged stem w/ 4 bolts, 31.8mm bar bore |
| Seat | Haro Flightline Jr |
| Seat Post | Pivit alloy micro adjust 27.2mm |
| Seat Clamp | Pivit alloy 31.8mm quick release |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 | 69° | 71° | 469mm (18.5") | 244mm (9.6") | 355mm (14") | 878mm (34.6") | 523mm (20.6") | 422mm (16.6") | 324mm (12.8") | 355mm (14") | 35mm (1.4") | 45mm | 620mm | 127mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
