Projekt 21
| Year | 2017 |
|---|---|
| MSRP | $379.99 * |
| Sizes | 14", 16", 18", 20", 22" |
| Colors | Charcoal, Dark Olive, ST Grape, Teal |
| Weight |

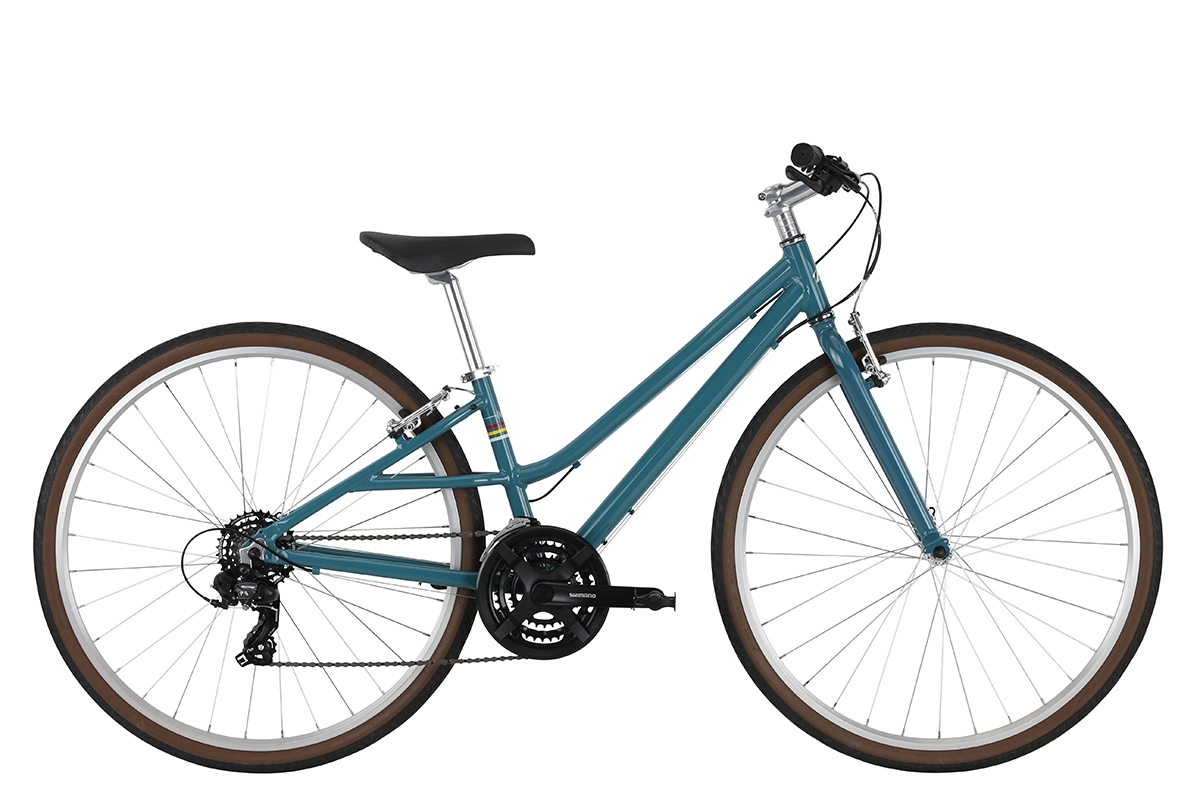

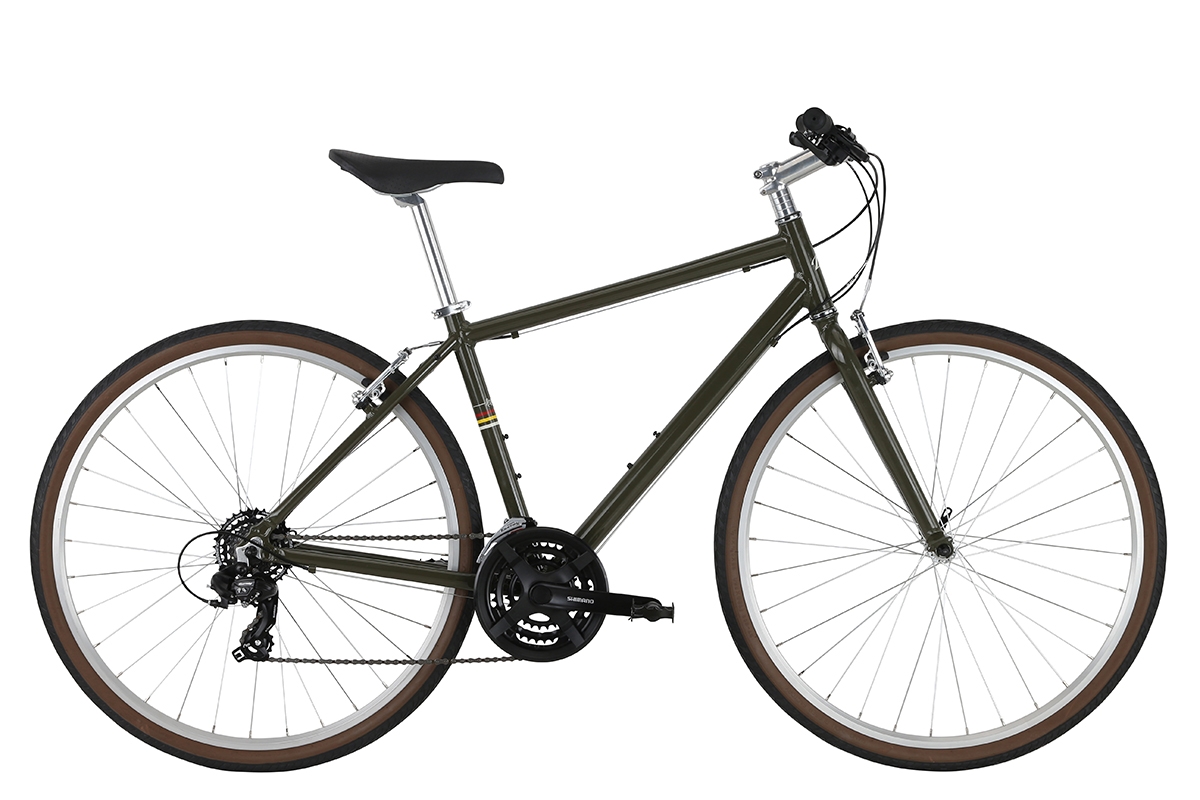

Cut through traffic like a hot knife through butter on the Projekt 21, a commuter bike with a big-city attitude – and an appetite for weekend rambles. Classic lines and understated urban colorways like army, black, grape and aged turquoise go from town to country, equally at home locked to a lamp post or rolling down a forest path.
FEATURES
- Custom D-Street alloy frameset
- Shimano 21 speed Tourney derailleurs with EZ Fire shifters
- Shimano TY301 crankset
- Lightweight alloy 31.8mm handlebar & stem
- Fast-rolling and durable 700x35c tires
- Sturdy 32 hole alloy wheelset with doublewall rims
| Frame Components | |
|---|---|
| Frame | D-Street 6061 Alloy |
| Fork | Rigid Hi-Ten |
| Headset | 1 1/8" Threadless |
| Drivetrain | |
| Cranks | Shimano TY301 48/38/28t |
| Bottom Bracket | Sealed Cartridge |
| Chain | KMC Z51 |
| Front Derailleur | Shimano Tourney TY500 |
| Rear Deralleur | Shimano Tourney TY300D |
| Derailleur Shifter | Shimano EF41 |
| Pedals | Wellgo Nylon Body |
| Wheels | |
| Tires | 700 X 35c |
| Wheels/Rims | DH-18 Alloy Double Wall Rims, Alloy Hubs, Stainless Steel Spokes |
| Freewheel/Cassette | Shimano HG-20 12-32t |
| Braking System | |
| Brakes | Alloy Linear Pull |
| Brake Levers | Shimano EF41 |
| Other Components | |
| Grips | Projekt BMX Style |
| Handle Bar | Alloy Riser Bar, 35Mm Rise, 680mm Width, 31.8mm Clamp |
| Stem | Forged Alloy, 7 Degree Rise |
| Seat | D-Street Padded Retro |
| Seat Post | Alloy Micro-Adjust, 27.2 X 350mm |
| Seat Clamp | Alloy Single Bolt |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 | 70.5° | 74° | 356mm (14") | 450mm (17.7") | 625mm (24.6") | ||||||||||
| 16 | 71° | 73° | 432mm (17") | 450mm (17.7") | 638mm (25.1") | ||||||||||
| 14 | 70.5° | 74° | 356mm (14") | 450mm (17.7") | 673mm (26.5") | ||||||||||
| 16 | 70.5° | 74° | 406mm (16") | 450mm (17.7") | 686mm (27") | ||||||||||
| 18 | 71° | 73° | 711mm (28") | 450mm (17.7") | 711mm (28") | ||||||||||
| 20 | 71° | 73° | 508mm (20") | 450mm (17.7") | 737mm (29") | ||||||||||
| 22 | 72.2° | 73° | 559mm (22") | 450mm (17.7") | 762mm (30") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
