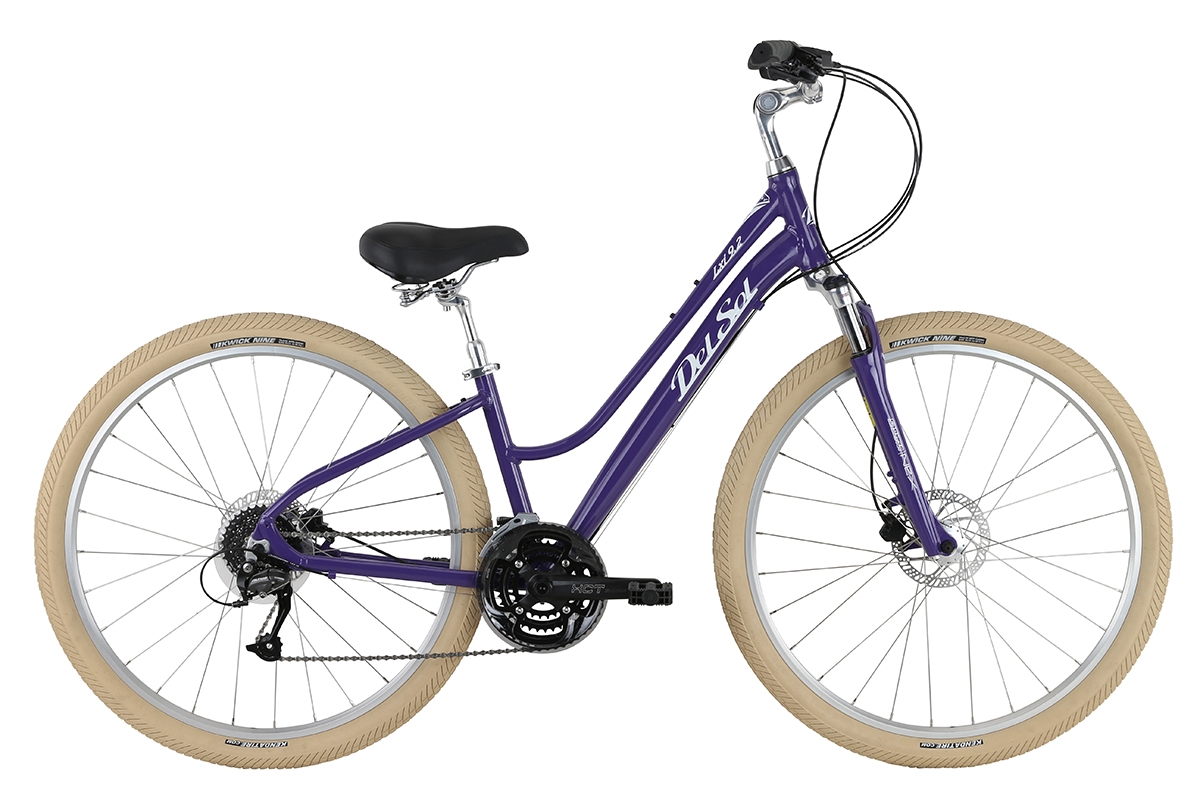

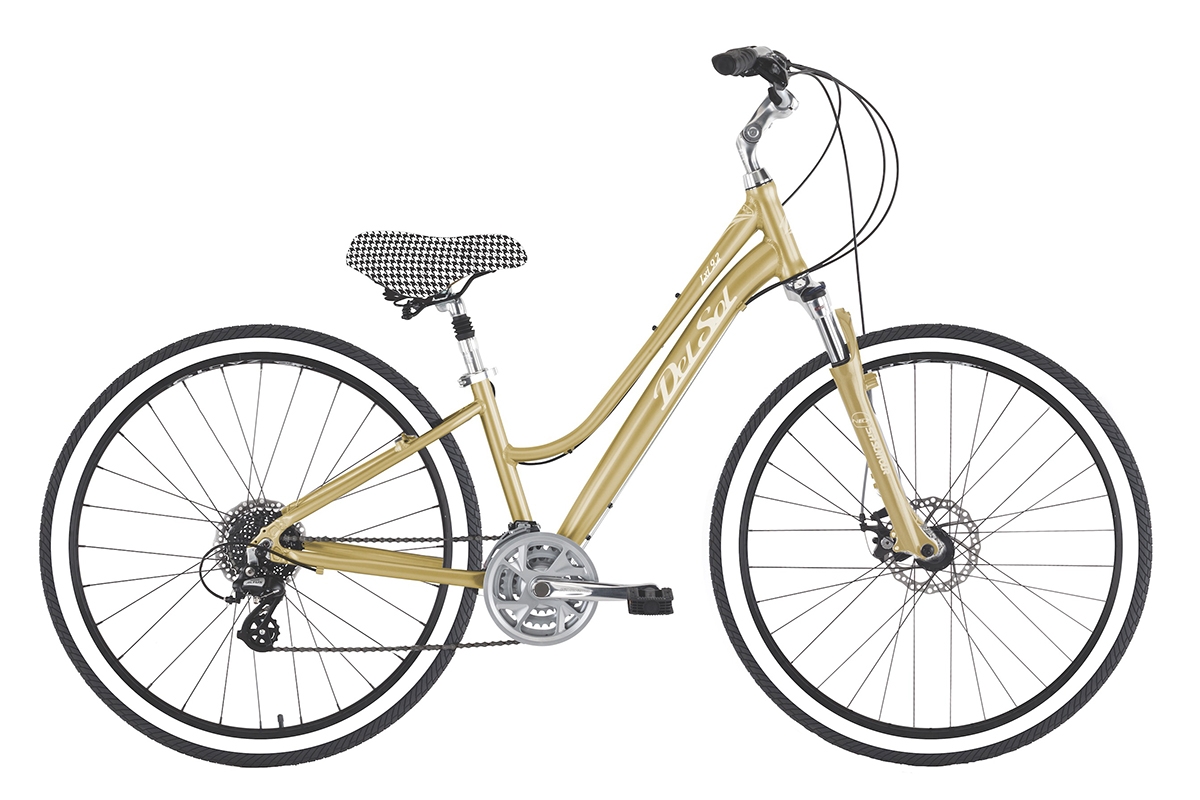

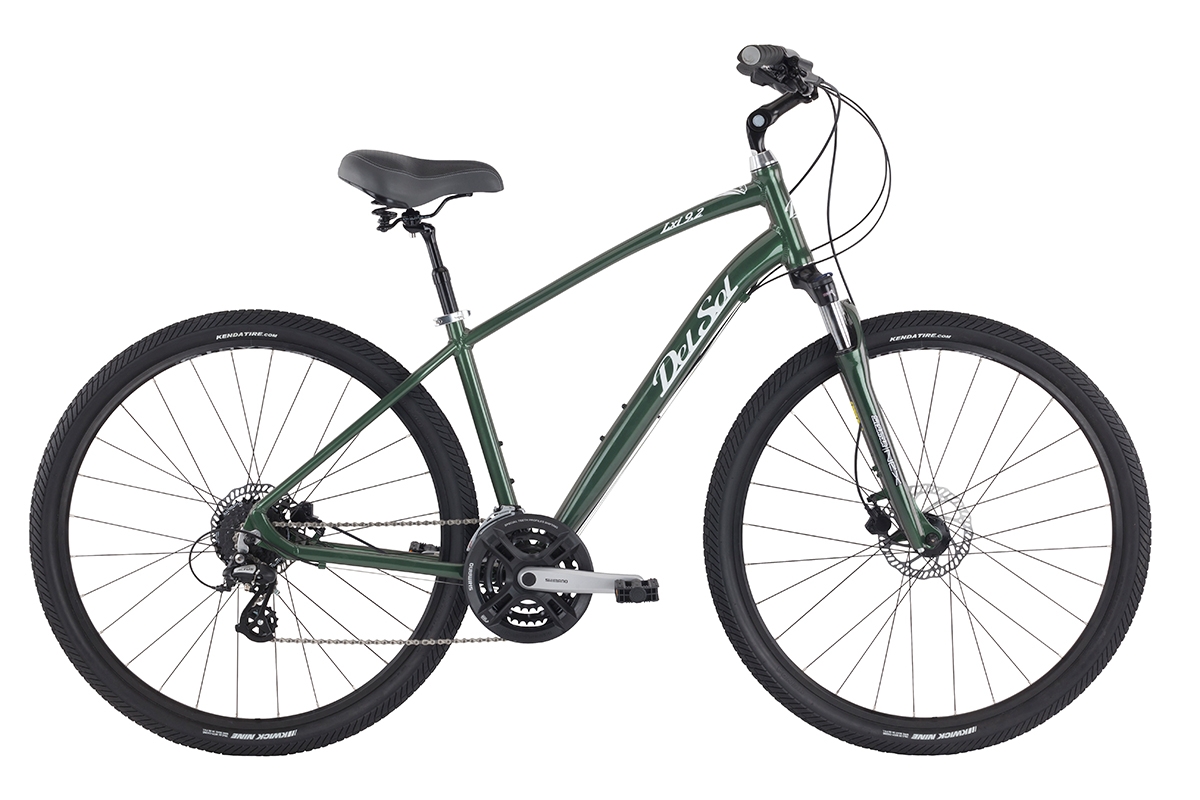

Lxi 9.2

  • Year: 2017
  • MSRP: $609.99 *
  • Sizes: 14", 17", 20"
  • Colors: Midnight, Infantry Green, Classic Black, Eggplant, English Brass
  • Weight:
  • NO LONGER AVAILABLE

Go ahead and go long – you can ride all afternoon when every contact point on your bike is designed to optimize ergonomics. Explore the back roads on a high-quality 6061 aluminum frame paired with an 80 mm suspension fork (with lock-out, for smooth roads and maximizing power). It doesn't get better than the Del Sol Comfort Saddle and suspension seat post combination. And your hands (and shoulders) will say "ahhhhhh" when you grab the Del Sol Comfort Grips, at the perfect spot for you with your easily adjustable stem and riser bars. Go ahead, test yourself in the hills. With 27 speeds you can conquer any road and safely glide back down, on your wide, smooth-rolling 29" x 2" tires and hydraulic disc brakes.

FEATURES

  • Del Sol lightweight 6061 frame with upright comfort geometry
  • SR Suntour NEX HLO 63mm travel fork w/lock out
  • Shimano 27 speed Acera drivetrain
  • Adjustable angle alloy stem and lightweight alloy handlebars
  • Custom Del Sol comfort plus saddle with suspension seatpost
  • Lightweight 32 hole alloy wheelset with doublewall rims
  • Super smooth Kenda 29 x 2" all-purpose tires
  • Tektro Auriga hydraulic disc brakes
SPECIFICATIONS
Frame Components
Frame Lxi 29er Comfort 6061 oversized aluminum frame
Fork SR Suntour XCT 80mm travel w/ Hydraulic Lockout
Headset 1 1/8" Integrated
Drivetrain
Cranks SR Suntour XCT 418, 48/38/28t
Bottom Bracket Sealed Cartridge
Chain KMC X9
Front Derailleur Shimano Altus M370
Rear Deralleur Shimano Acera M370
Derailleur Shifter Shimano SL-M370
Pedals Comfort w/Kraton rubber inserts
Wheels
Tires Kenda Kwick Nine, 29 x 2.0"
Wheels/Rims Weinmann ZAC19 alloy double wall rims, alloy disc hubs, stainless steel spokes
Freewheel/Cassette Shimano HG-200 11-34T
Braking System
Brakes Tektro Auriga hydraulic disc, 160mm rotors
Brake Levers Tektro Auriga
Other Components
Grips Del Sol Comfort Dual density
Handle Bar Alloy riser bar, 80mm rise, 680mm width, 25.4mm clamp
Stem Forged alloy quill, adjustable rise
Seat Del Sol Comfort
Seat Post Alloy suspension, 27.2 x 300mm
Seat Clamp Alloy QR, 31.8mm
GEOMETRY
Size Head Angle Seat Angle Top Tube (Effective) Seat Tube (C-T) Chainstay Length BB Drop Wheel Base Stand Over Stack Height Reach Fork Height Fork Offset Stem Length Bar Width Crank Length
14 ST 70.5° 74° 587mm (23.1") 356mm (14") 450mm (17.7") 70mm (2.8") 1036mm (40.8") 627mm (24.7")
17 ST 70.5° 74° 597mm (23.5") 432mm (17") 450mm (17.7") 70mm (2.8") 1062mm (41.8") 655mm (25.8")
14 70.5° 74° 536mm (21.1") 356mm (14") 450mm (17.7") 70mm (2.8") 1031mm (40.6") 777mm (30.6")
17 70.5° 74° 549mm (21.6") 406mm (16") 450mm (17.7") 70mm (2.8") 1062mm (41.8") 826mm (32.5")
20 71° 73° 559mm (22") 508mm (20") 450mm (17.7") 70mm (2.8") 1069mm (42.1") 851mm (33.5")

RESOURCES

Owner's manual: Bike Manual PDF (Opens in a new window)

*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
