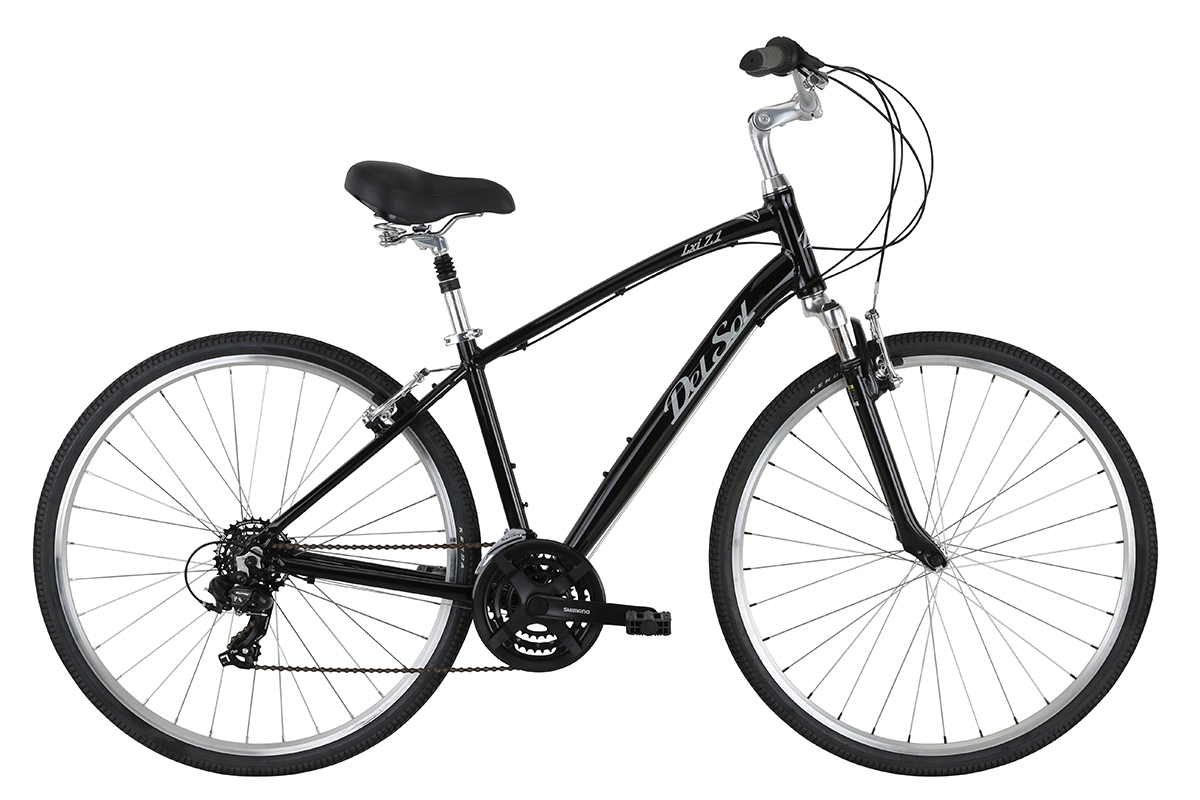

Lxi 7.1

  • Year: 2017
  • MSRP: $429.99 *
  • Sizes: 14", 17", 20"
  • Colors: Onyx, Pearly White, Satin Moss
  • Weight:

Play hard with the LXi 7.1, featuring 21 speeds and easy twist shifting. Go for a smooth, fast pedal on a light 6061 aluminum frame with a 30 mm suspension fork, and fast-rolling 700c wheels. You'll enjoy all the same ergonomic features as the LXi 7.2: Del Sol comfort saddle and suspension seat post, Del Sol comfort grips and adjustable stem.


  • Del Sol lightweight 6061 frame with upright comfort geometry
  • Ultra-compliant 30mm travel suspension fork
  • Shimano 21 speed Tourney derailleurs with Revo twist shifters
  • Shimano TY301 crankset
  • Adjustable angle alloy stem and lightweight alloy handlebars
  • Custom Del Sol comfort plus saddle with suspension seatpost
  • Lightweight 32 hole alloy wheelset with doublewall rims
  • Smooth rolling 700 x 38c all-purpose tires
Frame Components
Frame Lxi 700c Comfort 6061 oversized aluminum frame
Fork Del Sol 120-E, 30mm travel
Headset 1 1/8" Integrated
Cranks Shimano TY301 48/38/28t
Bottom Bracket Sealed Cartridge
Chain KMC Z51
Front Derailleur Shimano Tourney TY500
Rear Deralleur Shimano Tourney TY300D
Derailleur Shifter Shimano Revo
Pedals Comfort w/Kraton rubber inserts
Tires Kenda Keen 700 x 38c
Wheels/Rims DH18 alloy double wall rims, alloy hubs, stainless steel spokes
Freewheel/Cassette Shimano HG-20 12-32t
Braking System
Brakes Alloy linear pull
Brake Levers Alloy linear pull
Other Components
Grips Del Sol Comfort Dual density
Handle Bar Steel riser bar, 80mm rise, 680mm width, 25.4mm clamp
Stem Forged alloy quill, adjustable rise
Seat Del Sol Comfort
Seat Post Alloy suspension, 27.2 x 300mm
Seat Clamp Alloy QR, 31.8mm
Size Head Angle Seat Angle Top Tube (Effective) Seat Tube (C-T) Chainstay Length BB Drop Wheel Base Stand Over Stack Height Reach Fork Height Fork Offset Stem Length Bar Width Crank Length
14 ST 70.5° 74° 587mm (23.1") 356mm (14") 450mm (17.7") 70mm (2.8") 1041mm (41") 625mm (24.6")
17 ST 70.5° 74° 597mm (23.5") 432mm (17") 450mm (17.7") 70mm (2.8") 1062mm (41.8") 638mm (25.1")
14 70.5° 74° 536mm (21.1") 356mm (14") 450mm (17.7") 70mm (2.8") 1036mm (40.8") 673mm (26.5")
17 70.5° 74° 549mm (21.6") 432mm (17") 450mm (17.7") 70mm (2.8") 1062mm (41.8") 686mm (27")
20 71° 73° 559mm (22") 508mm (20") 450mm (17.7") 70mm (2.8") 1069mm (42.1") 737mm (29")


Owner's manual: Bike Manual PDF (Opens in a new window)

*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
