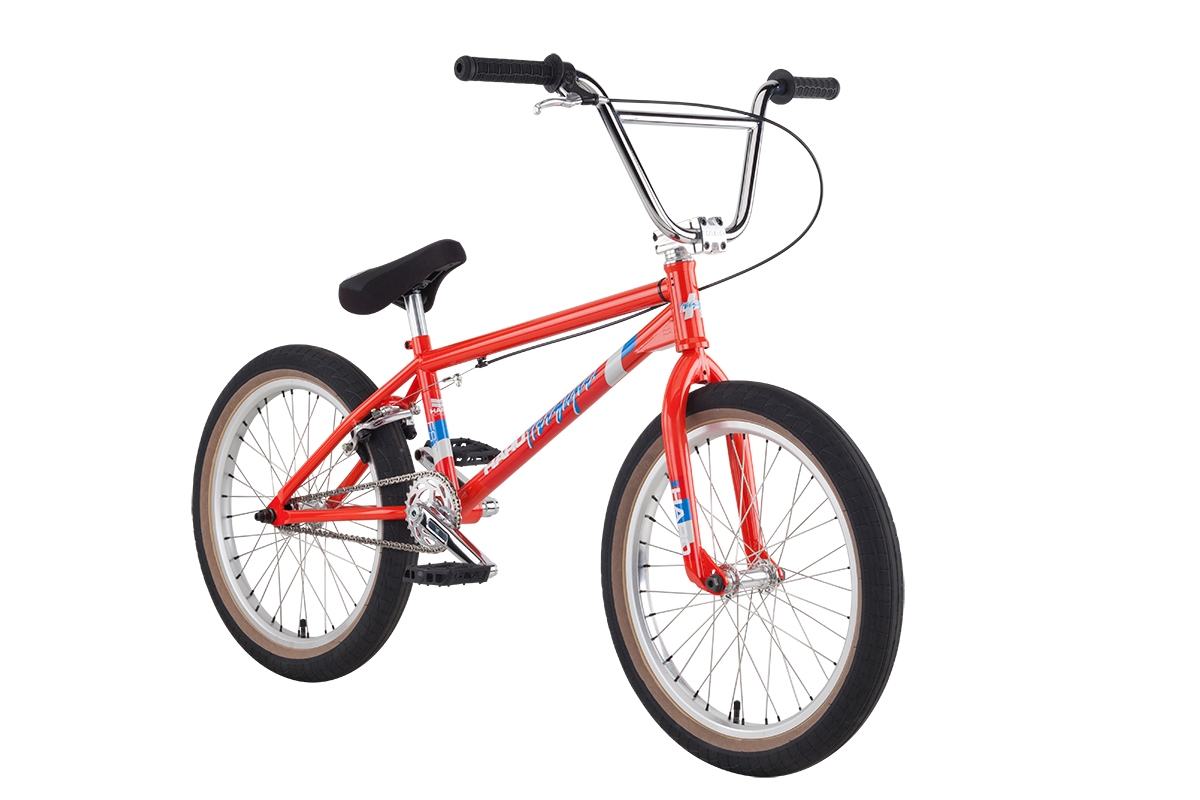

FST 20
- Year: 2015
- MSRP: $869.99 *
- Sizes: 21"
- Colors: Gloss Bright Red
- Weight:
- NO LONGER AVAILABLE
FEATURES
- 100% chromoly frame with Mid BB shell, integrated head tube, welded seat clamp, 21" top tube length and removable brake and cable mounts
- 100% chromoly fork with CNC 1 piece internal threaded steer tube and tapered legs
- 100% chromoly bars 8.75" with Haro Lineage CNC alloy top load stem
- Lineage 3-piece chromoly 48-spline 175mm cranks with Haro Lineage 28T CNC alloy bolt drive sprocket and sealed Mid BB
- 28/9 gearing
- Fully sealed wheels with Haro Sata double-wall alloy rims and female front axle hub
- Haro La Mesa tires 2.4" front and rear
- Haro "1978" padded Tri-pod seat with alloy Tri-pod fluted post
- Haro "Recycled" plastic pedals
- Haro Team grips
- KMC K710SL super light chain
- Dia-Compe FS996 brakes with Tech 77 lever
- 350 models produced
Frame Components | |
---|---|
Frame | Full Crmo, internal HT & Mid BB - 21" TT |
Fork | Full Crmo with 1 piece CNC steer tube and tapered legs |
Headset | Dia-Compe FS996 Alloy U-brake rear only |
Drivetrain | |
Cranks | Lineage Crmo 48 spline 175mm w/ Mid sealed bearing BB |
Bottom Bracket | Dia-Compe Tech 77 Alloy lever |
Gearing | 28/9 |
Pedals | Haro "Recycled" plastic |
Wheels | |
Tires | Haro La Mesa 20x2.40 F/R |
Wheels/Rims | 36H Alloy Shell sealed bearings w/ female axle; 36H Alloy Shell cassette SB w/14mm axle & 9T driver |
Hubs | 3/8" / 14mm |
Braking System | |
Rotor | N/A - straight cable |
Other Components | |
Grips | Haro Team Grip |
Handle Bar | Crmo 8.75" rise / Lineage CNC Alloy front load stem |
Seat | Padded Tri-pod seat with alloy Tri-pod post |
Pegs | N/A |
Size | Head Angle | Seat Angle | Top Tube | Seat Tube | Chainstay | BB Height | Stand Over |
---|---|---|---|---|---|---|---|
20.5 | 75° | 71.5° | 520mm (20.5") | 260mm (10.2") | 349mm (13.7") | 292mm (11.5") | 546mm (21.5") |
21 | 75° | 71.5° | 533mm (21") | 260mm (10.2") | 349mm (13.7") | 292mm (11.5") | 546mm (21.5") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
