Duo

  • Year: 2015
  • MSRP: $549.99 , $599.99 *
  • Sizes: 20.5", 21"

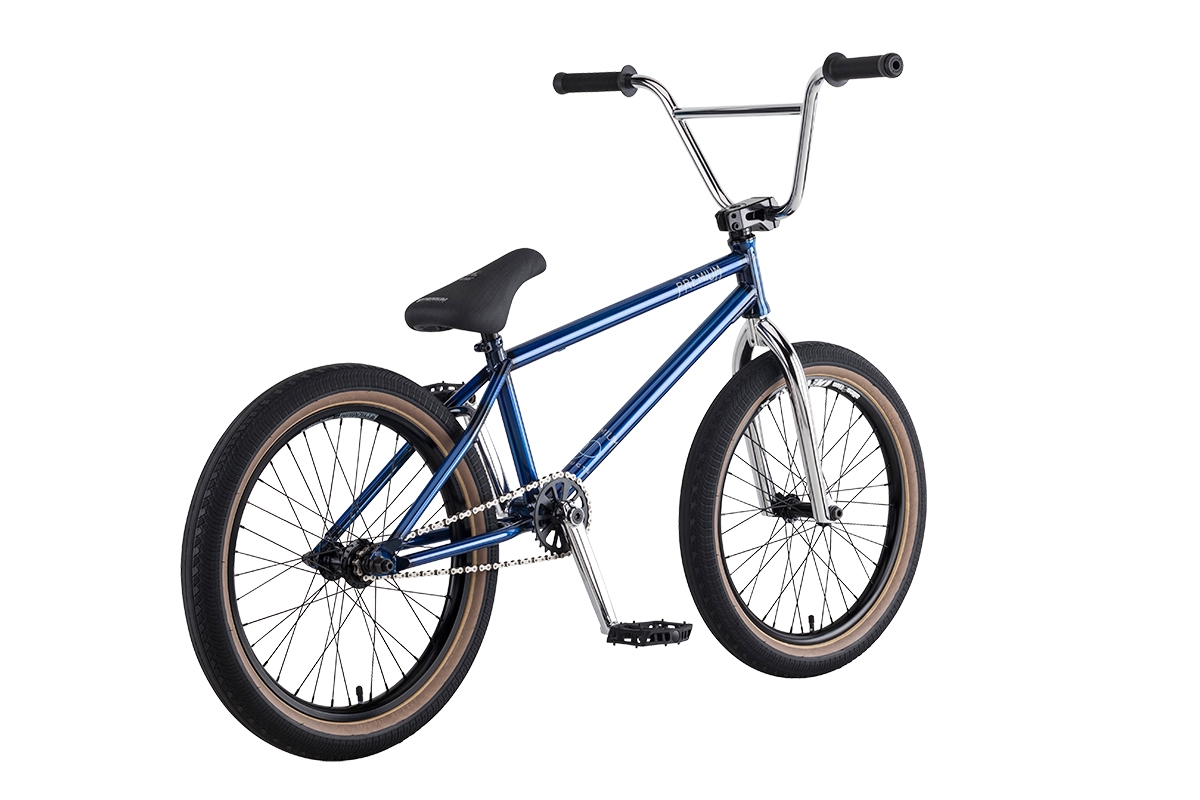

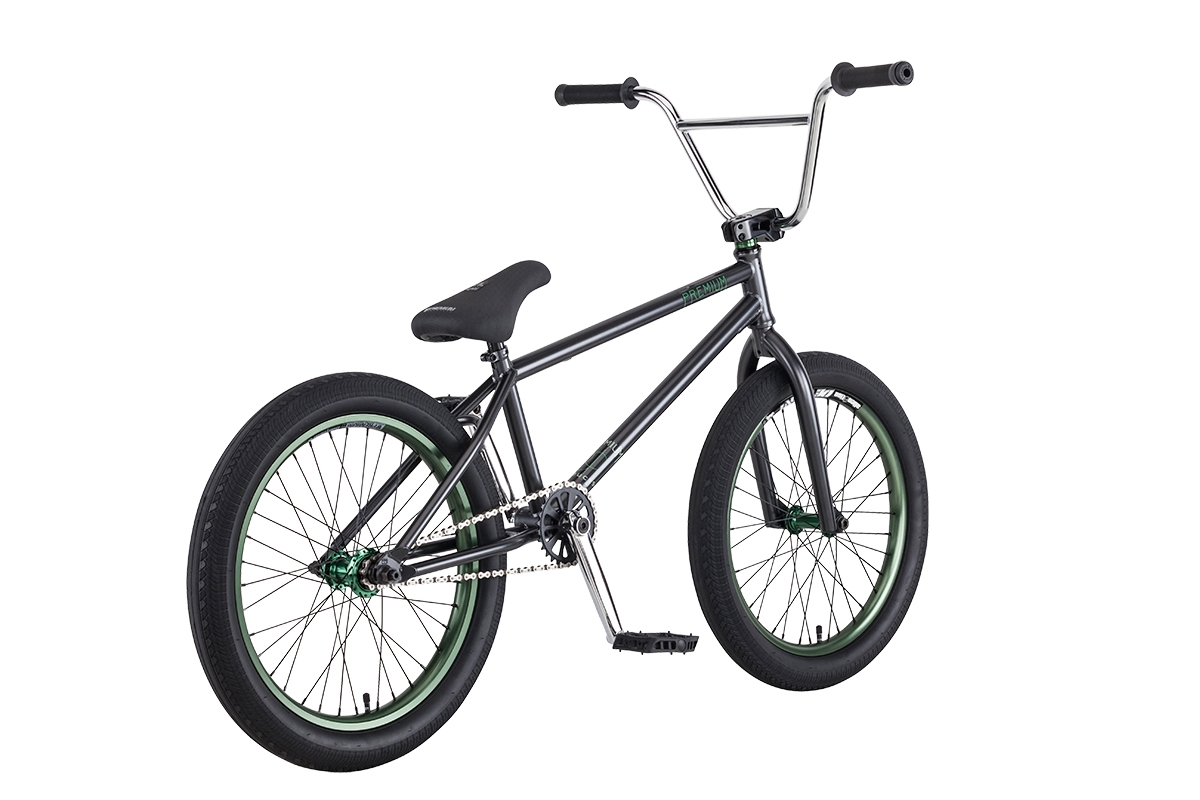

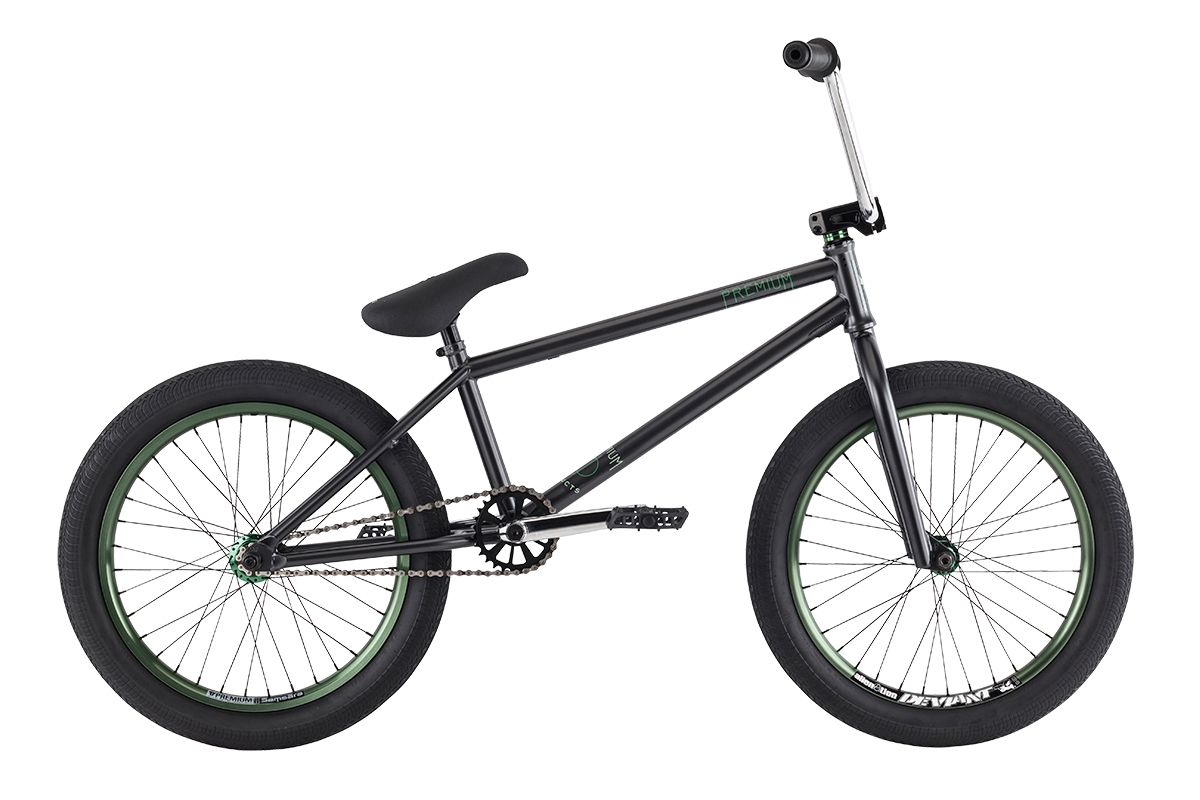

  • Colors: SG Metallic Grey, Gloss Trans Blue
  • Weight: 23.8 lbs
  • NO LONGER AVAILABLE

FEATURES

  • 5 tube crmo frame (front triangle) with butted down tube, integrated head tube, Mid BB shell, integrated seat clamp and removable brake and cable mounts - 20.5" or 21" top tube
  • 100% crmo fork with internal threaded steer tube and tapered legs
  • 100% crmo bars 8.50" (on 20.5") or 8.75" (on 21") with Premium alloy front load stem
  • Three-piece crmo 175mm 8-spline cranks with sealed Mid BB
  • 28/9 gearing with alloy sprocket
  • Fully sealed wheels with Samsara rear and Deviant front double-wall rims and female axle front hub
  • Premium CK tires 2.4" front and rear
  • Premium Fat Capitol seat with Pivotal post
  • Premium loose ball plastic pedals
SPECIFICATIONS
Frame Components
Frame 5 tubes crmo w/welded seat clamp and removable brake mounts - 20.5" or 21" TT
Fork Full Crmo with internal threaded steer tube and tapered legs
Drivetrain
Cranks 3 pc. tubular Crmo 175mm w/sealed MID BB
Gearing 28/9 w/sealed bearing driver hub and 1pc driver
Pedals Premium plastic pedals
Wheels
Tires Premium CK 20x2.40 front and rear
Wheels/Rims Alienation 36H Deviant DW Frt/Samsara DW Rear
Hubs 36H Alloy sealed bearing, 3/8" female Frt, 14mm rear w/9T driver
Braking System
Rotor N/A Straight Cable
Other Components
Grips Premium Counterfeit
Handle Bar Full Crmo - 8.50" rise w/20.5" frame, 8.75" rise w/21" frame
Seat Premium Fat Capitol Pivotal seat with Pivotal post
Pegs N/A.
GEOMETRY
Size Head Angle Seat Angle Top Tube Seat Tube Chainstay BB Height Stand Over
20.5 75° 71.5° 520mm (20.5") 260mm (10.2") 349mm (13.7") 293mm (11.5") 546mm (21.5")
21 75° 71.5° 533mm (21") 260mm (10.2") 349mm (13.7") 293mm (11.5") 546mm (21.5")

RESOURCES

Owner's manual: Bike Manual PDF (Opens in a new window)

*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
