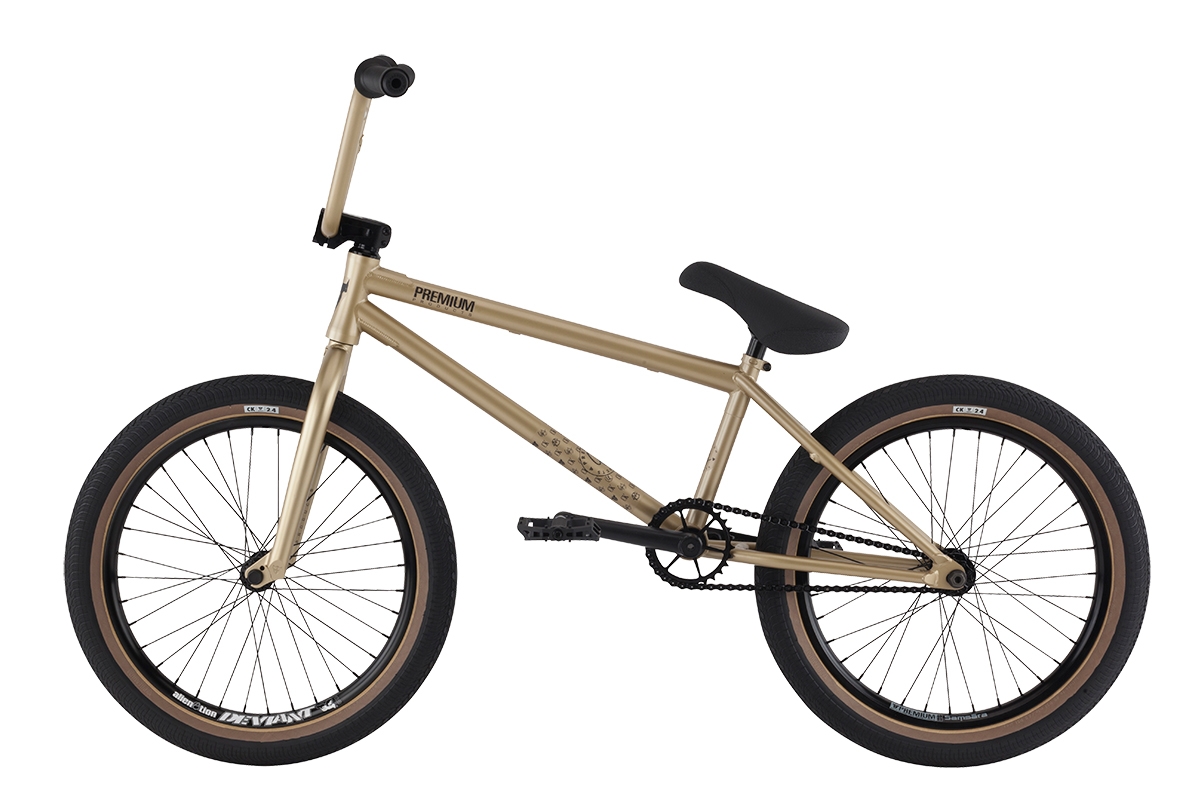

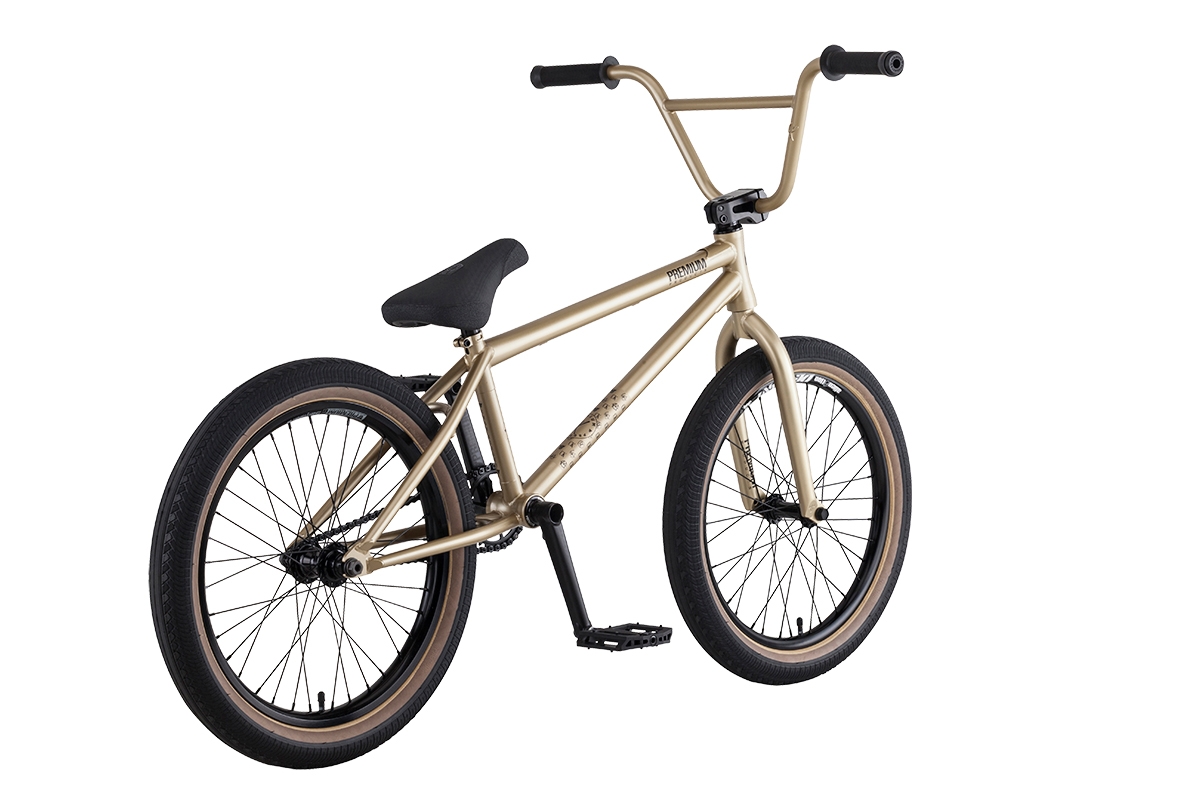

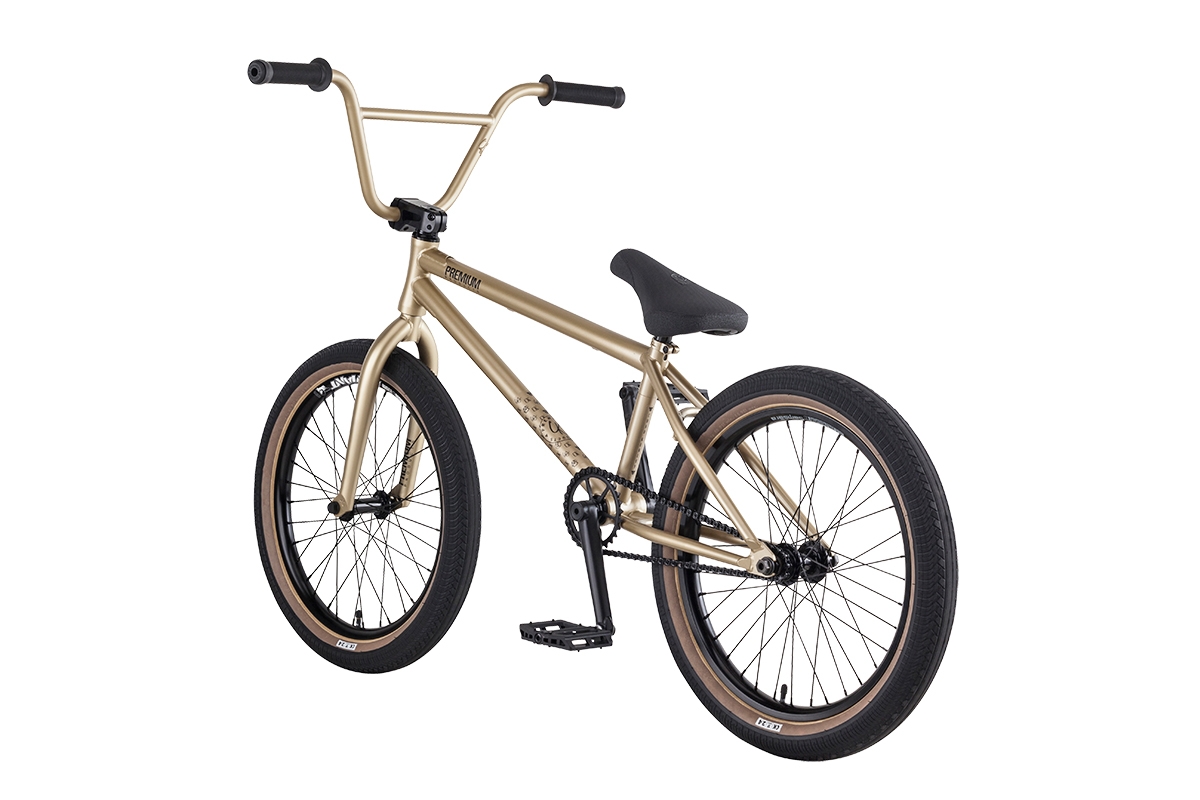

CK Signature
- Year: 2015
- MSRP: $1,089.99 *
- Sizes: 20.8"
- Colors: SG Gold
- Weight: 22.4 lbs
- NO LONGER AVAILABLE
FEATURES
- CK 100% crmo frame with butted top and down tubes, heat treated tapered stays and dropouts, hour glass Mid BB shell, integrated head tube, integrated seat clamp and removable brake and cable mounts - 20.8" top tube
- CK 100% heat treated crmo fork with internal threaded one piece CNC steer tube, tapered legs, investment cast dropouts and CNC alloy pre-load cap
- CK 100% heat treated crmo bars 8.25"
- Premium 2 piece crmo 175mm 48 spline cranks with 22mm spindle and 28t crmo spline drive sprocket
- Premium Samsara wheels, fully sealed with female axles front and rear, double-wall rims and RSD/LSD convertible rear hub with 9t driver
- Premium CK tires 2.4" front and rear
- Premium slim plastic pedals with sealed bearings
- Premium Sub-10 V3 CNC front load stem
- Premium Fat Capitol Pivotal seat with Pivotal post
- Premium Chadow pegs (1 pair)
- KMC half link chain
Frame Components | |
---|---|
Frame | Full Crmo Premium CK signature frame (same as aftermarket) - 20.8" TT |
Fork | Full Crmo CK signature fork (same as aftermarket) |
Drivetrain | |
Cranks | Premium 2 pc 48 spline Crmo 175mm sealed 22mm MID BB |
Gearing | 28/9 w/ sealed bearing driver hub and RSD/LSD 1 pc. driver |
Pedals | Premium Slim plastic pedals |
Wheels | |
Tires | Premium CK 20x2.40 front and rear |
Wheels/Rims | Alienation 36H Deviant DW Frt/Samsara DW Rear |
Hubs | 36H Alloy sealed bearing, 3/8" Frt/Rr female axle, RSD/LSD rear |
Braking System | |
Rotor | N/A Straight Cable |
Other Components | |
Grips | Premium Counterfeit |
Handle Bar | Full Crmo CK signature bar (same as aftermarket) - 8.25" rise |
Seat | Premium Fat Capitol Pivotal seat with Pivotal post |
Pegs | N/A |
Size | Head Angle | Seat Angle | Top Tube | Seat Tube | Chainstay | BB Height | Stand Over |
---|---|---|---|---|---|---|---|
20.8 | 75° | 71.5° | 528mm (20.8") | 247mm (9.7") | 349mm (13.7") | 293mm (11.5") | 533mm (21") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
