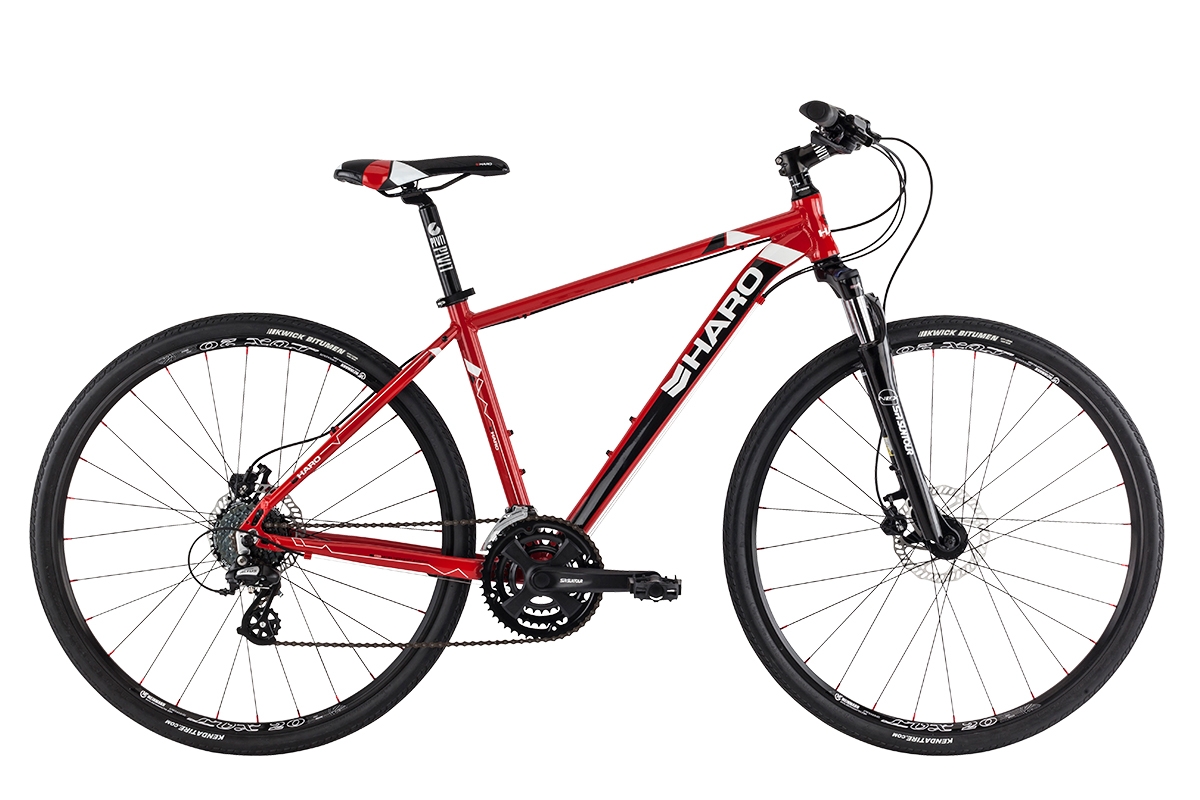

Westlake

  • Year: 2015
  • MSRP: $609.99 *
  • Sizes: 16", 18", 20", 22"
  • Colors: Red
  • Weight:
  • NO LONGER AVAILABLE

FEATURES

SPECIFICATIONS
Frame Components
Frame Dual Sport 6061 T6 oversized aluminum w/ semi-integrated headtube
Fork SR Suntour NEX, 63mm travel w/ hydraulic lock out
Headset FSA # 10 semi-integrated
Drivetrain
Cranks SR Suntour XCC 208, 48/38/28
Bottom Bracket Sealed cartridge
Chain Shimano HG50
Front Derailleur Shimano Altus
Rear Deralleur Shimano Altus
Derailleur Shifter Shimano Altus, 8 speed
Pedals Nylon
Wheels
Tires Kenda Bitumen, 700 x 38c
Wheels/Rims Weinmann Lux-20 28h rims, Pivit alloy disc cassette hubs, stainless steel spokes
Freewheel/Cassette Shimano HG-200, 8 speed cassette, 12-32
Braking System
Brakes Tektro Auriga hydraulic disc brakes w/ 160 front rotor, 160mm rear rotor
Brake Levers Tektro Auriga
Other Components
Grips Dual density Sport
Handle Bar Pivit riser bar, 25mm rise, 680mm width, 31.8mm clamp
Stem Pivit forged alloy, 10 degree rise
Seat Haro Dual Sport
Seat Post Pivit alloy micro adjust, 30.9 x 350mm
Seat Clamp Pivit alloy 34.9 quick release
GEOMETRY
Size Head Angle Seat Angle Top Tube (Effective) Seat Tube (C-T) Chainstay Length BB Drop Wheel Base Stand Over Stack Height Reach Fork Height Fork Offset Stem Length Bar Width Crank Length
16 72° 73° 595mm (23.4") 405mm (15.9") 460mm (18.1") 60mm (2.4") 1092mm (43") 762mm (30")
18 72° 73° 602mm (23.7") 460mm (18.1") 460mm (18.1") 60mm (2.4") 1098mm (43.2") 796mm (31.3")
20 72° 73° 616mm (24.3") 510mm (20.1") 460mm (18.1") 60mm (2.4") 1098mm (43.2") 805mm (31.7")
22 72° 73° 625mm (24.6") 559mm (22") 460mm (18.1") 60mm (2.4") 1121mm (44.1") 849mm (33.4")

RESOURCES

Owner's manual: Bike Manual PDF (Opens in a new window)

*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
