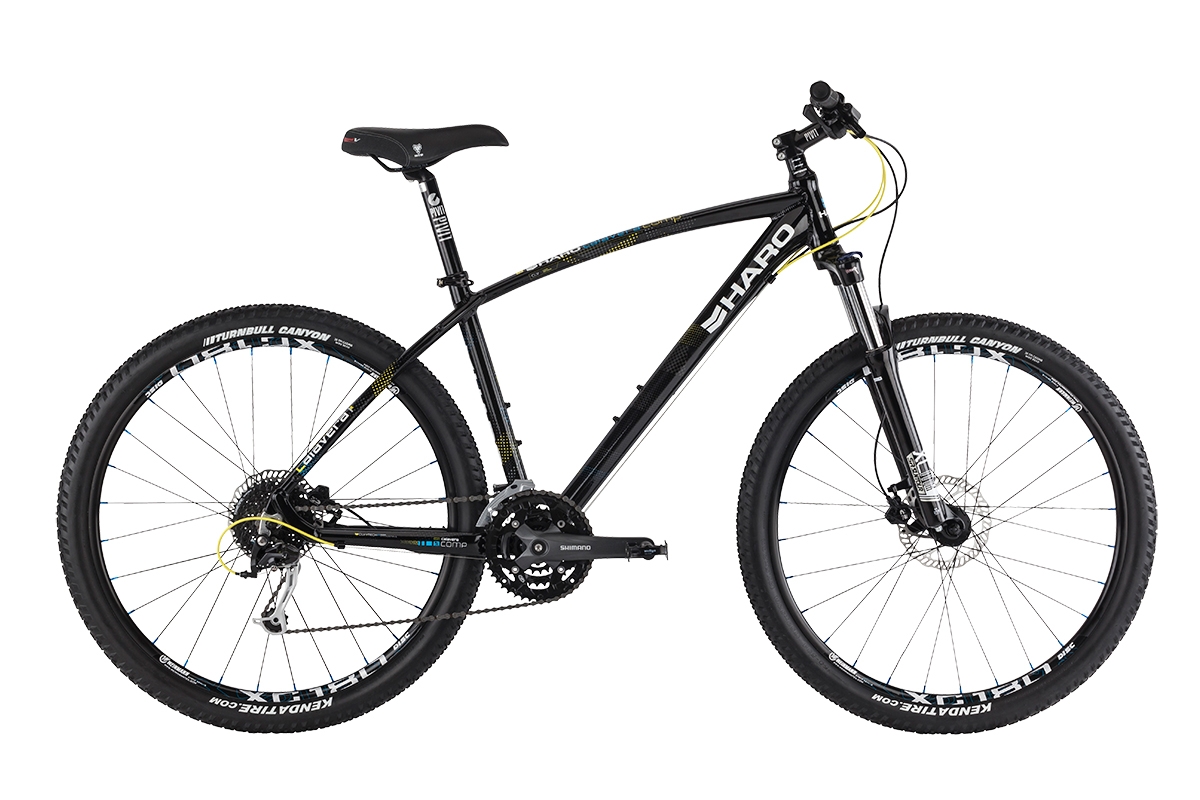

Calavera 27.Five Comp

  • Year: 2015
  • MSRP: $719.99 *
  • Sizes: 14", 16", 18", 20"
  • Colors: Black
  • Weight:
  • NO LONGER AVAILABLE

FEATURES

SPECIFICATIONS
Frame Components
Frame Calavera 27.Five 6061 T6 oversized aluminum w/ semi-integrated headtube
Fork SR Suntour XCM 27.5", 100mm travel w/ hydraulic lock out
Headset FSA # 10 semi-integrated
Drivetrain
Cranks Shimano Acera, 44/32/22
Bottom Bracket Sealed cartridge
Chain Shimano HG53
Front Derailleur Shimano Acera
Rear Deralleur Shimano Alivio
Derailleur Shifter Shimano Acera, 9 speed
Pedals Nylon ATB
Wheels
Tires Kenda Turnbull Canyon, 27.5 x 2.0"
Wheels/Rims Weinmann XC-180 28h rims, Pivit alloy disc cassette hubs, stainless steel spokes
Freewheel/Cassette Shimano HG-200, 9 speed cassette, 11-34
Braking System
Brakes Tektro Auriga hydraulic disc brakes w/ 160 front rotor, 160mm rear rotor
Brake Levers Tektro Auriga
Other Components
Grips WTB Trail II
Handle Bar Pivit riser bar, 25mm rise, 680mm width, 31.8mm clamp
Stem Pivit forged alloy, 10 degree rise
Seat WTB SST Comp
Seat Post Pivit alloy micro adjust, 31.6 x 400mm
Seat Clamp Pivit alloy 34.9 quick release
GEOMETRY
Size Head Angle Seat Angle Top Tube (Effective) Seat Tube (C-T) Chainstay Length BB Drop Wheel Base Stand Over Stack Height Reach Fork Height Fork Offset Stem Length Bar Width Crank Length
14 70° 72.5° 555mm (21.9") 356mm (14") 428mm (16.9") 38.5mm (1.5") 1064mm (41.9") 741mm (29.2")
16 70° 72.5° 574mm (22.6") 406mm (16") 428mm (16.9") 38.5mm (1.5") 1065mm (41.9") 778mm (30.6")
18 70° 72.5° 613mm (24.1") 457mm (18") 428mm (16.9") 38.5mm (1.5") 1104mm (43.5") 814mm (32")
20 70° 72.5° 620mm (24.4") 508mm (20") 428mm (16.9") 38.5mm (1.5") 1114mm (43.9") 839mm (33")

RESOURCES

Owner's manual: Bike Manual PDF (Opens in a new window)

*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
