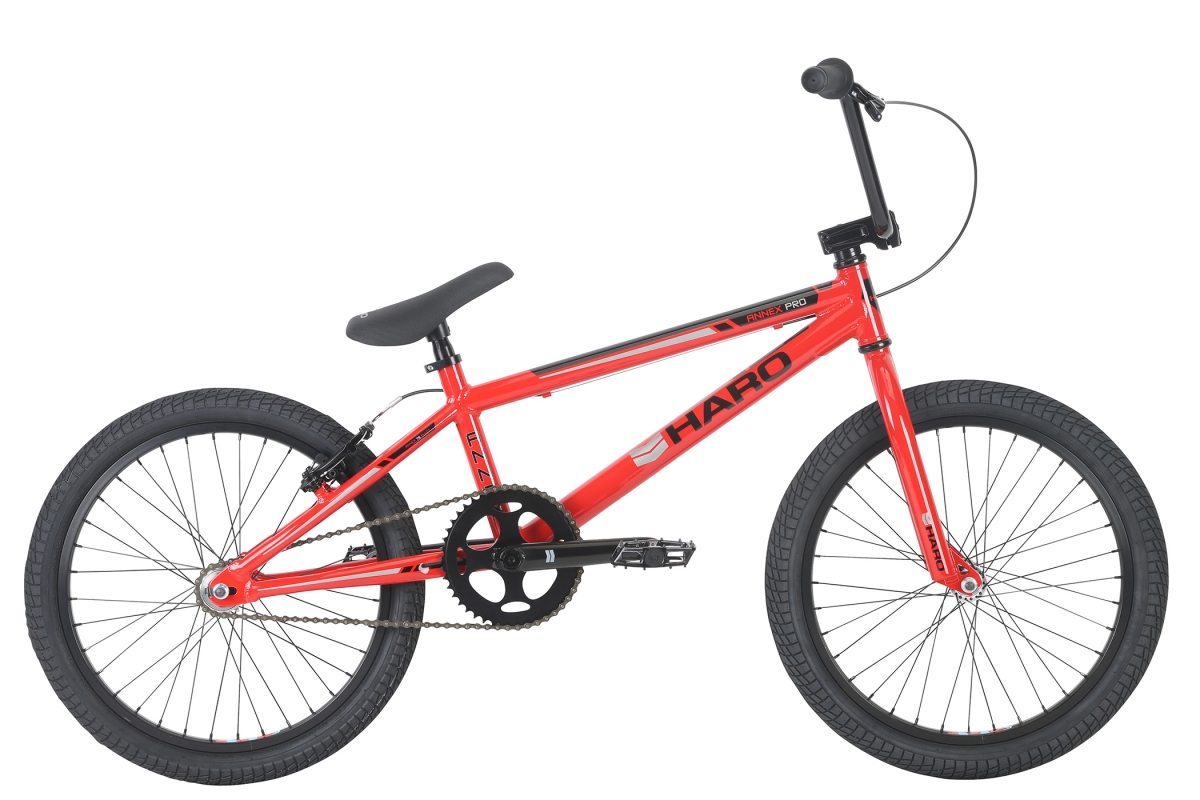

The Annex Pro model takes things to the next level in multiple ways. Starting off with a 20.5" top tube 6061 alloy frame which has larger geometry and tubing than that found on the Expert model. 8" rise bars and 100% chromoly fork with 1 1/8" steer tube provide adequate size and strength for proper front end control. The Annex Pro also comes with 175mm 3 piece chromoly cranks and full sized 20" 36 spoke alloy wheels which increase strength and are versatile for riding/racing at the BMX track and all around riding.
FEATURES
- 6061 series alloy frame
- 100% chromoly fork
- Hi-ten bars and Haro alloy front load stem
- 3-piece chromoly race cranks
- Kenda Kontact tires
- Padded one piece with built in alloy post
- Promax V-Brake and lever
| Frame Components | |
|---|---|
| Frame | 6061 series alloy frame |
| Fork | Crmo 1 1/8" threadless |
| Headset | 1 1/8" threadless |
| Drivetrain | |
| Cranks | Haro 3-pc crmo 175mm, 44T alloy |
| Bottom Bracket | Threaded Euro sealed |
| Gearing | 44/16 |
| Chain | KMC 410 |
| Pedals | DX alloy |
| Wheels | |
| Tires | Kenda Kontact 20x2.25 F/20x1.95 R |
| Wheels/Rims | 36h alloy single wall |
| Hubs | 3/8" straight axles, 36h alloy shell loose ball Front / Rear |
| Braking System | |
| Brakes | Promax MV-295L alloy V-brake |
| Brake Levers | Promax XL-378 alloy Lever |
| Other Components | |
| Grips | Micro knurl |
| Handle Bar | Hi-ten 8" rise |
| Stem | Haro alloy front load 52mm ext |
| Seat | Haro padded one piece |
| Seat Post | Alloy 27.2mm |
| Seat Clamp | Alloy pinch bolt |
| Size | Head Angle | Seat Angle | Top Tube | Seat Tube | Chainstay | BB Height | Stand Over |
|---|---|---|---|---|---|---|---|
| 20.5 | 74° | 72° | 522mm (20.5") | 260mm (10.2") | 365mm (14.4") | 292mm (11.5") | 562mm (22.1") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
