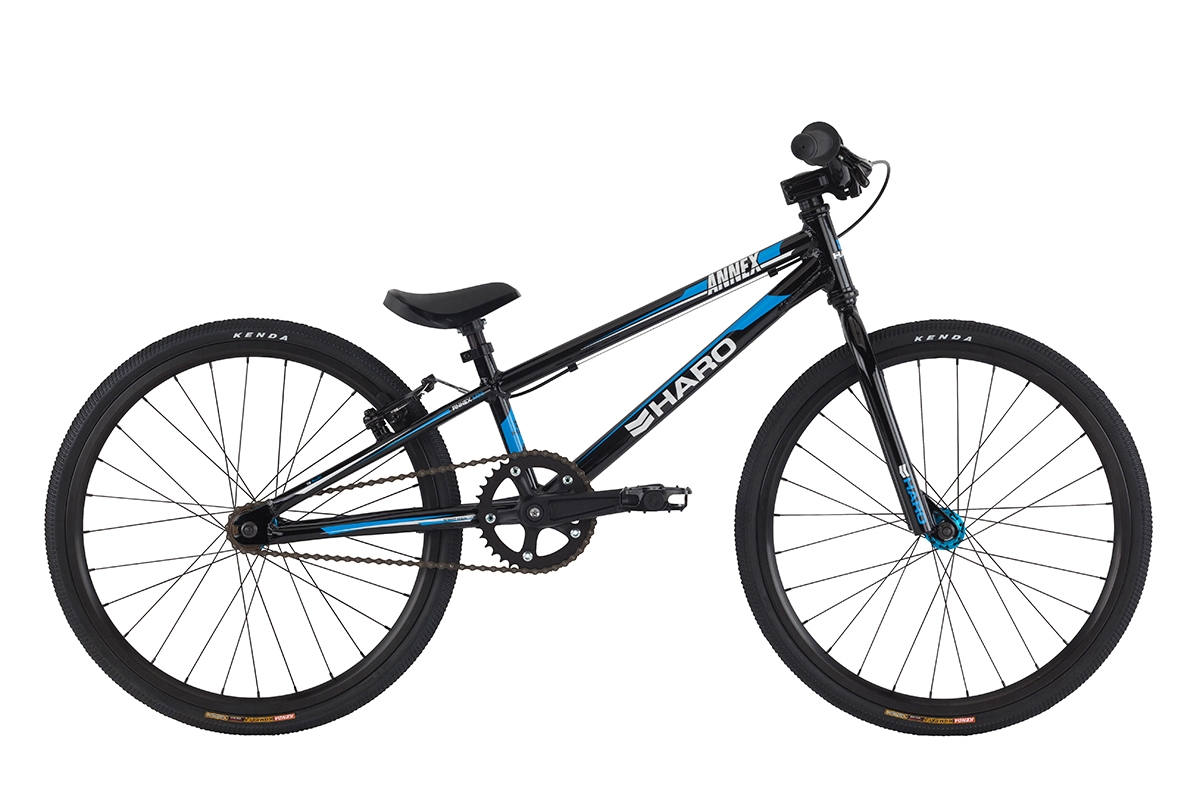

Annex Mini
| Year | 2016 |
|---|---|
| MSRP | $399.99 * |
| Sizes | 17.75" |
| Colors | Gloss Black, Gloss Metallic White |
| Weight | 15.80 lbs |
FEATURES
- 6061 series alloy frame with 17.75" top tube
- 100% chromoly 1" threadless fork
- Mini alloy bars and Haro alloy front load stem
- 3-piece 145mm alloy race cranks with sealed Euro BB
- 28-spoke wheels with 20" DA16 double wall alloy rims
- Kenda Kompact 20 x 1-1/8" tires
- Velo Unibody seat with built in alloy post
- Promax V-Brake and lever
| Frame Components | |
|---|---|
| Frame | 6061 Series Alloy with 17.75" TT |
| Fork | Full Crmo 1" Threadless |
| Drivetrain | |
| Cranks | 3pc Alloy race 145mm-Sealed Bearing Euro BB |
| Gearing | 36/14 |
| Pedals | Mini DX Alloy |
| Wheels | |
| Tires | Kenda "Kompact" K1054 20x1 1/8" |
| Wheels/Rims | 28h Alloy double wall DA16 |
| Hubs | 28h Alloy Shell loose ball; 28h Alloy Shell loose ball flip-flop |
| Braking System | |
| Rotor | N/A |
| Other Components | |
| Grips | Velo Mini Knurled Grips |
| Handle Bar | Mini Alloy Bar / Haro Mini Alloy front load stem 45mm ext |
| Seat | Velo Unibody w/Alloy Post |
| Pegs | N/A |
| Size | Head Angle | Seat Angle | Top Tube | Seat Tube | Chainstay | BB Height | Stand Over |
|---|---|---|---|---|---|---|---|
| 17.6 | 72° | 71° | 447.7mm (17.6") | 212mm (8.3") | 339mm (13.3") | 280mm (11") | 469.9mm (18.5") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
