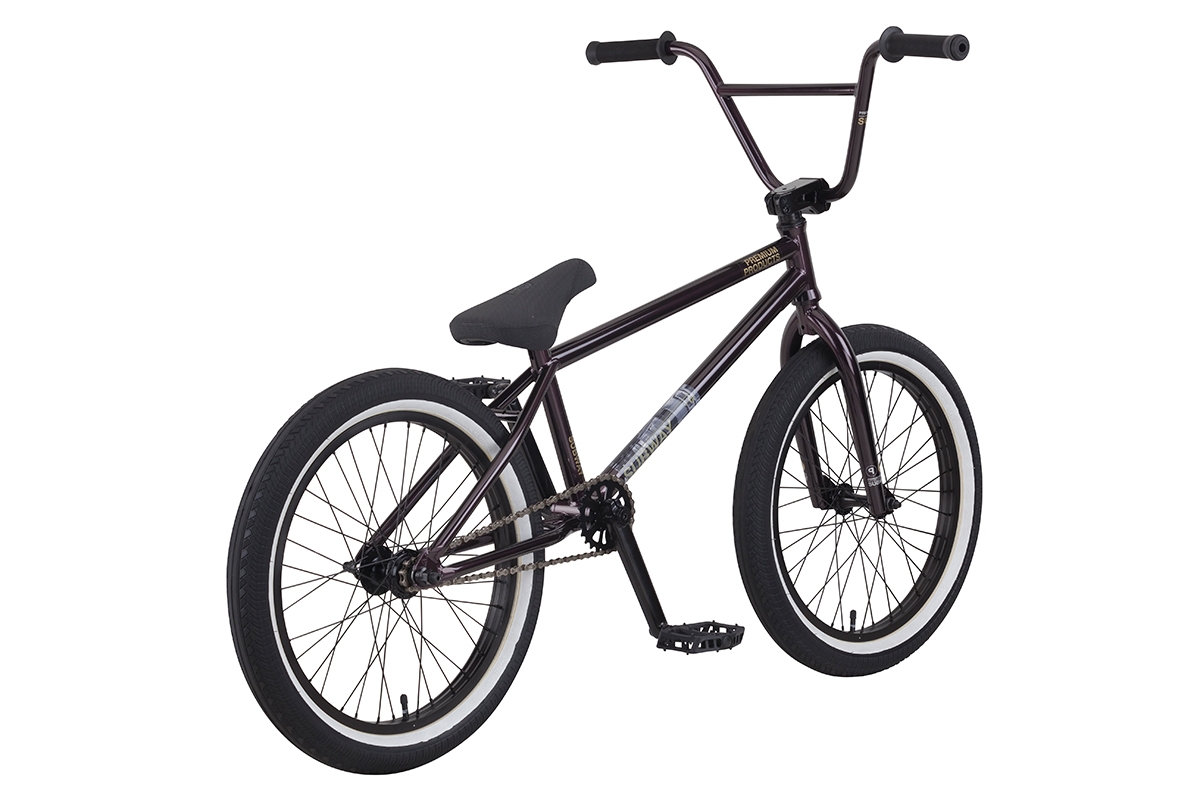

Subway
| Year | 2016 |
|---|---|
| MSRP | $439.99 * |
| Sizes | 20.75" |
| Colors | Gloss Sizzurp, Gloss Copper |
| Weight |
FEATURES
- Premium 20.75" brakeless frame with integrated head tube, Mid BB shell, crmo down tube and built in cut-away pivotal mount
- Internal threaded crmo steer tube fork with hi-ten tapered legs
- 8.75" rise bar with Premium alloy front load stem
- Three-piece crmo 175mm 8-spline cranks with sealed Mid BB
- 25/9 gearing
- Fully sealed wheels with Alienation PBR rims
- Premium CK tires 2.4" front and rear
- Premium Fat Capitol Pivotal seat
- Premium loose ball plastic pedals
- Caliper brake included
| Frame Components | |
|---|---|
| Frame | 1 Crmo DT brakeless frame w/ integrated Pivotal post |
| Fork | Internal threaded Crmo steer tube, Hi-ten taper legs |
| Drivetrain | |
| Cranks | 3 pc. Crmo 175mm 8 Spline w/sealed bearing MID BB |
| Gearing | 25/9 |
| Pedals | Premium plastic loose ball |
| Wheels | |
| Tires | Premium CK 20x2.40 F/R |
| Wheels/Rims | Alienation 36H PBR Alloy F/R |
| Hubs | 36H Alloy shell sealed bearing 3/8"; 36H Alloy shell sealed bearing Cassette 14mm 9T |
| Braking System | |
| Rotor | N/A |
| Other Components | |
| Grips | Premium Counterfeit |
| Handle Bar | Hi-Ten 8.75" rise w/Premium alloy front load stem |
| Seat | Premium Fat Capitol Pivotal |
| Pegs | N/A |
| Size | Head Angle | Seat Angle | Top Tube | Seat Tube | Chainstay | BB Height | Stand Over |
|---|---|---|---|---|---|---|---|
| 20.75 | 75° | 71.5° | 527mm (20.75") | 275mm (10.8") | 349mm (13.7") | 292mm (11.5") | 540mm (21.3") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
