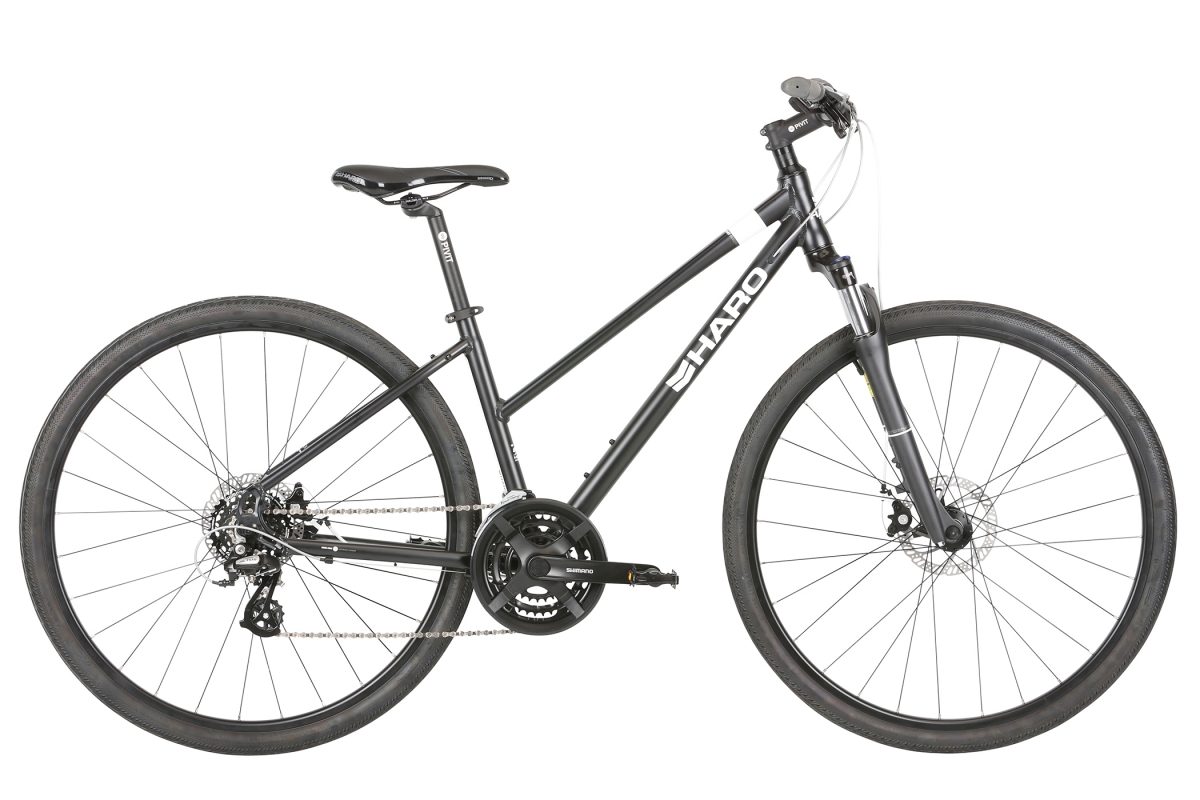

Bridgeport ST
- Year: 2019
- MSRP: $549.99 *
- Sizes: 14", 16"
- Colors: Dark Charcoal, Teal / White
- Weight:
- NO LONGER AVAILABLE
Bridgeport ST is one of Haro's most popular commuters and features a Solum Series hybrid frame that features Rider Optimized Geometry specifically designed to assure a proper and comfortable fit. Most importantly, Bridgeport ST features a gender neutral step-thru designed frame that makes it easier to dismount when swinging a leg around the rear wheel is not desirable or not possible. The word Solum refers to the upper layer of a soil profile, which means that in addition to its on asphalt commuting skills it can also venture out onto that upper layer of soil that presents itself as unpaved lake and fire roads. Bridgeport ST is versatile and features a Suntour NEX HLO suspension fork with just the right amount of travel for a bike like this. The suspension fork absorbs small bumps off road, and when you ride on road it has a hydraulic lockout that allows you to make the fork rigid which maximizes the energy from your pedaling efforts. Bridgeport ST comes complete with a Shimano 21 speed drive train that includes EZ Fire shifters. Its wheelset is made from Pivit alloy 28h disc hubs laced to 700c alloy double wall rims and all weather stopping is made possible thanks to a pair of Tektro Aries mechanical disc brakes.
FEATURES
- Haro Solum Dual Sport frame with Rider Optimized Geometry, mechanically-shaped alloy tubing, and chainstay disc brake mount
- SR Suntour NEX HLO suspension fork with 63mm travel and hydraulic lockout
- Shimano TY-301 crankset, 48/38/28 and sealed cartridge BB
- Shimano Altus rear derailleur
- Shimano Tourney 7 speed EZ Fire shifters, front derailleur
- Pivit disc brake hubs and lightweight double wall rims
- New Pivit alloy 9* sweep riser bar, and forged stem
- Tektro Aires mechanical disc brakes
Frame Components | |
---|---|
Frame | Haro Solum 6061 Alloy w/ Rider-Tuned Geometry, New Dropout w/Integrated Kickstand Mount |
Fork | SR Suntour NEX HLO 63mm travel w/ hydraulic lockout |
Headset | 10-Pcs, 1-1/8" Threadless for 50mm OD headtube, Internal |
Drivetrain | |
Cranks | Shimano TY-301 48/38/28t |
Bottom Bracket | Shimano sealed cartridge |
Chain | KMC Z51 |
Front Derailleur | Shimano Tourney FD-TY510 Dual Pull |
Rear Deralleur | Shimano Altus RD-M310-L |
Derailleur Shifter | Shimano ST-EF-500 3x7-spd |
Pedals | VP nylon body w/ steel cages |
Wheels | |
Tires | H-5113 700 x 38c |
Wheels/Rims | 700c alloy double wall 28h |
Hubs | Pivit alloy disc cassette |
Freewheel/Cassette | Shimano HG-200 7-spd cassette 12-32T |
Braking System | |
Brakes | Tektro Aries MD-M280 mechanical disc, 160mm rotors |
Brake Levers | Shimano ST-EF-500 |
Other Components | |
Grips | Haro Dual Sport |
Handle Bar | Pivit alloy 25mm riser bar 31.8mm 9° sweep |
Stem | Pivit melt forged |
Seat | Haro Dual Sport |
Seat Post | Men's: Pivit alloy micro adjust 27.2mm |
Seat Clamp | Alloy quick Release, 31.8mm |
Extras | Rack & Fender Mounts |
Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
14 ST | 70° | 74° | 550mm (21.7") | 355mm (14") | 445mm (17.5") | 60mm (2.4") | 1058mm (41.7") | 640mm (25.2") | 587mm (23.1") | 381mm (15") | 468mm (18.4") | 42mm (1.7") | 70mm | 620mm | 170mm |
16 ST | 70° | 74° | 572mm (22.5") | 406mm (16") | 445mm (17.5") | 60mm (2.4") | 1081mm (42.6") | 642mm (25.3") | 596mm (23.5") | 400mm (15.7") | 468mm (18.4") | 42mm (1.7") | 90mm | 620mm | 170mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
