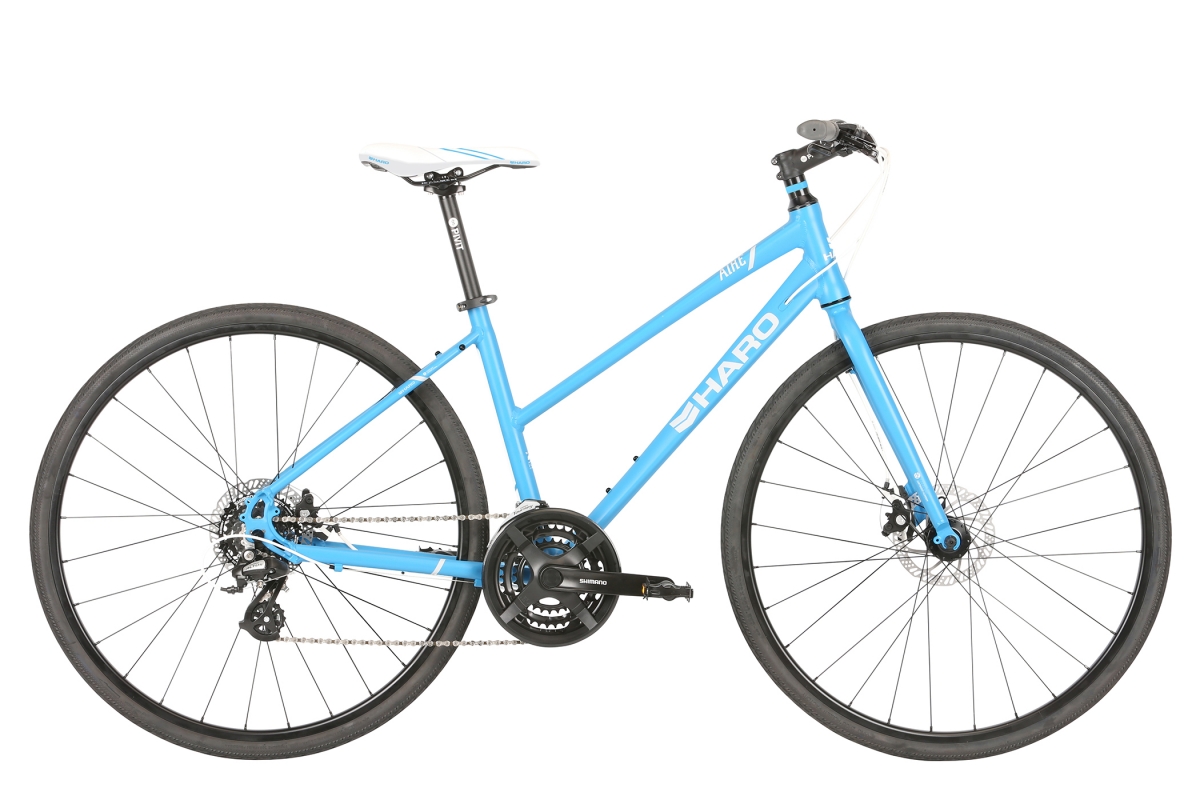

Aire
- Year: 2019
- MSRP: $519.99 *
- Sizes: 14", 17"
- Colors: SG Silver, Sky Blue
- Weight:
- NO LONGER AVAILABLE
Aire starts with a Ventus Series hybrid frame that features Rider Optimized Geometry specifically designed to assure a proper and comfortable fit. Most importantly, Aire features a gender neutral step-thru designed frame that makes it easier to dismount when swinging a leg around the rear wheel is not desired or not possible. All Ventus Series models are ideally suited to a wide range of uses including commuting, fitness riding, recreational riding and good old fashioned errand running. Unlike its Solum Series counterparts, Aire uses a rigid steel fork with disc mounts to increase pedal efficiency by preventing energy loss associated with excess fork movement. Aire comes complete with a Shimano 21 speed drive train that includes EZ Fire shifters. Its wheelset is made from Pivit alloy 28h disc hubs laced to 700c alloy double wall rims and all weather stopping is made possible thanks to a pair of Tektro Aries mechanical disc brakes.
FEATURES
- Haro Ventus Sport Hybrid frame with Rider Optimized Geometry, mechanically-shaped alloy tubing, internal cable routing and chainstay disc brake mount
- Haro Ventus steel fork with disc brake mounts
- Shimano TY-301 crankset, 48/38/28 and sealed cartridge BB
- Shimano Altus rear derailleur
- Shimano Tourney 7 speed EZ Fire shifters, front derailleur
- Pivit disc brake hubs and lightweight double wall rims
- New Pivit alloy 9* sweep flattop bar, and forged stem
- Tektro Aires mechanical disc brakes
Frame Components | |
---|---|
Frame | Haro Ventus 6061 Alloy w/ Rider-Tuned Geometry, New Dropout w/Integrated Kickstand Mount |
Fork | Haro Ventus Hi-Ten steel w/ disc mount |
Headset | 10-Pcs, 1-1/8" Threadless for 50mm OD headtube, Internal |
Drivetrain | |
Cranks | Shimano TY-301 48/38/28t |
Bottom Bracket | Shimano Sealed Cartridge |
Chain | KMC Z51 |
Front Derailleur | Shimano Tourney FD-TY510 Dual Pull |
Rear Deralleur | Shimano Altus RD-M310-L |
Derailleur Shifter | Shimano ST-EF-500 3x7-spd |
Pedals | VP nylon body w/ steel cages |
Wheels | |
Tires | H-5113 700 x 32c |
Wheels/Rims | 700c alloy double wall 28h |
Hubs | Pivit alloy disc cassette |
Freewheel/Cassette | Shimano HG-200 7-spd Cassette 12-32t |
Braking System | |
Brakes | Tektro Aries MD-M280 mechanical disc, 160mm rotors |
Brake Levers | Shimano ST-EF-500 |
Other Components | |
Grips | Haro Dual Sport |
Handle Bar | Pivit alloy Flat Top 31.8mm 9° backsweep, 620 / 640mm wide |
Stem | Pivit melt forged |
Seat | Haro Dual Sport |
Seat Post | Pivit alloy micro adjust 27.2mm, zero offset, 2 bolts |
Seat Clamp | Alloy quick Release, 31.8mm |
Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
15 ST | 69.5° | 74° | 535mm (21.1") | 381mm (15") | 445mm (17.5") | 60mm (2.4") | 1048mm (41.3") | 618mm (24.3") | 542mm (21.3") | 379mm (14.9") | 401mm (15.8") | 45mm (1.8") | 70mm | 620mm | 170mm |
17 ST | 70.5° | 74° | 545mm (21.5") | 432mm (17") | 445mm (17.5") | 60mm (2.4") | 1050mm (41.3") | 648mm (25.5") | 565mm (22.2") | 382mm (15") | 401mm (15.8") | 45mm (1.8") | 90mm | 620mm | 170mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
