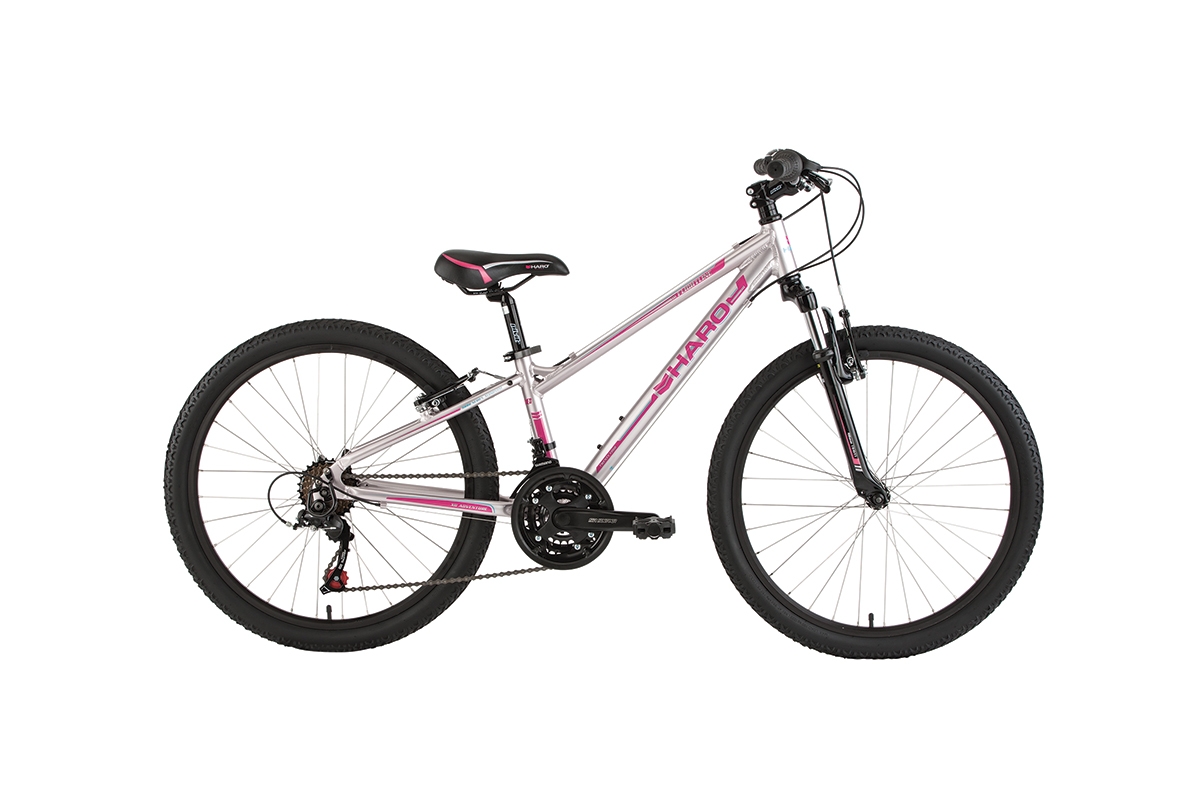

From promising junior cross-country racers to kids who just like to tear around the neighborhood, the Flightline 24 is extremely versatile. Featuring a lightweight FL3G aluminum frame and lower stand over height, the Flightline 24 makes riding easier and lots more fun. Kids will love the three color choices, including a radical Acid Green paint job guaranteed to get attention. Effortless and durable Shimano twist shifters and derailleurs are perfect for helping little hands shift gears, and the smaller 24" wheels make it nimble and quick.
FEATURES
| Frame Components | |
|---|---|
| Frame | Flightline FL3G 24" 6061 T6 oversized aluminum |
| Fork | Haro 410-E, 40mm travel |
| Headset | Steel threadless |
| Drivetrain | |
| Cranks | SR Suntour XCC 102, 42/32/22 |
| Bottom Bracket | Square taper |
| Chain | KMC Z33 |
| Front Derailleur | Shimano TZ-30 |
| Rear Deralleur | Shimano TZ-50 |
| Derailleur Shifter | Shimano Revo, 6 speed |
| Pedals | Nylon ATB |
| Wheels | |
| Tires | H-5120, 24 x 1.95" |
| Wheels/Rims | C-20 32h rims, Pivit steel hubs, stainless steel spokes |
| Freewheel/Cassette | Sunrace M05, 6 speed freewheel, 14-28 |
| Braking System | |
| Brakes | Alloy direct pull w/ linear spring |
| Brake Levers | Promax BL-42G |
| Other Components | |
| Grips | Dual density |
| Handle Bar | Pivit riser bar, 30mm rise, 580mm width |
| Stem | Pivit alloy, 15 degree rise |
| Seat | Haro Junior |
| Seat Post | Pivit alloy micro adjust, 27.2 x 250mm |
| Seat Clamp | Pivit alloy 31.8 quick release |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24 | 71° | 74° | 516mm (20.3") | 305mm (12") | 425mm (16.7") | 40mm (1.6") | 1000mm (39.4") | 635mm (25") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
