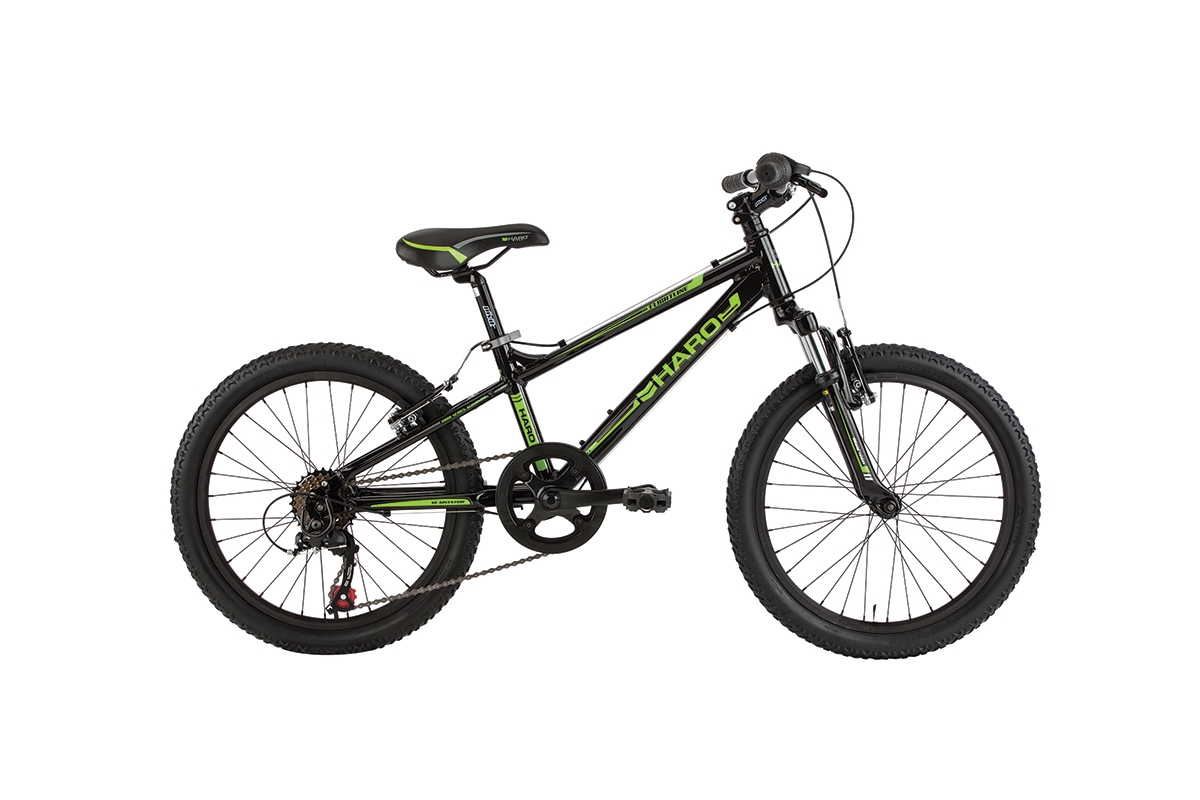

Flightline 20

Year 2014
MSRP $319.99 *
Sizes 20"
Colors Black, SG Red, Metallic Purple
Weight

There's no better way to start your kid's lifelong adventures on a mountain bike than with the Flightline 20. And just because it's a kid's bike doesn't mean it can't benefit from advanced technology like a lightweight FL3G aluminum frame that's durable enough to endure youthful abuse. Add in a suspension fork and Shimano Revo Twist shifters that help keep little hands on the grips for added control, the Flightline 20 is a small bike that's huge on value.

FEATURES

SPECIFICATIONS
Frame Components
Frame Flightline FL3G 20" 6061 T6 oversized aluminum
Fork Haro 410-E, 30mm travel
Headset Steel threadless
Drivetrain
Cranks Forged alloy w/ 40t chainring and double guard
Bottom Bracket Square taper
Chain KMC Z33
Front Derailleur N/A
Rear Deralleur Shimano TZ-50
Derailleur Shifter Shimano Revo, 6 speed
Pedals Nylon ATB
Wheels
Tires H-5120, 20 x 1.95"
Wheels/Rims C-20 32h rims, Pivit steel hubs, stainless steel spokes
Freewheel/Cassette Sunrace M05, 6 speed freewheel, 14-28
Braking System
Brakes Alloy direct pull w/ linear spring
Brake Levers Promax BL-42G
Other Components
Grips Dual density
Handle Bar Pivit riser bar, 30mm rise, 580mm width
Stem Pivit alloy, 15 degree rise
Seat Haro Junior
Seat Post Pivit alloy micro adjust, 27.2 x 250mm
Seat Clamp Pivit alloy 31.8 quick release
GEOMETRY
Size Head Angle Seat Angle Top Tube (Effective) Seat Tube (C-T) Chainstay Length BB Drop Wheel Base Stand Over Stack Height Reach Fork Height Fork Offset Stem Length Bar Width Crank Length
20 70° 71° 469mm (18.5") 260mm (10.2") 363mm (14.3") 0mm (0") 888mm (35") 557mm (21.9")

RESOURCES

Owner's manual: Bike Manual PDF

*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
