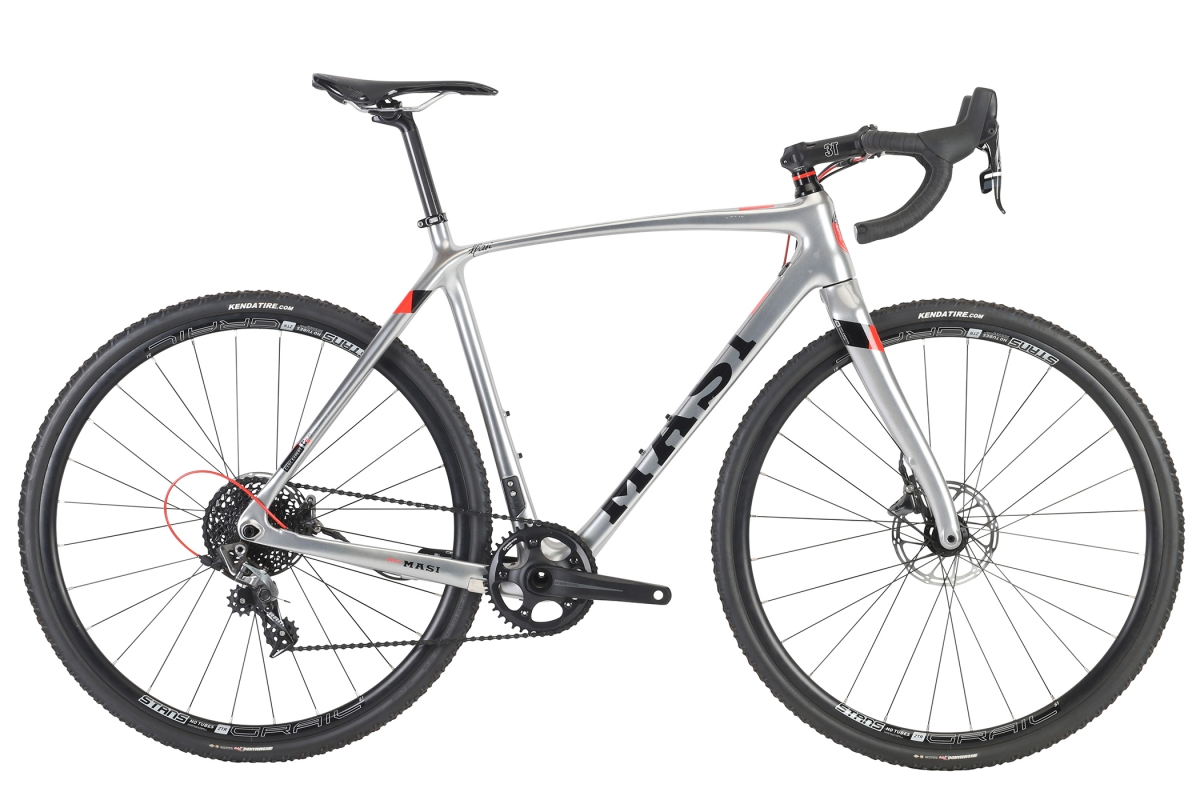

Designed from the ground up as the ultimate off-road rocket, the CXRc truly is an "Evo for the dirt". Featuring our proprietary Dirt Tuned Mc9 carbon frameset, the bike is a sharp-edged race implement for those who can wield it. Equipped with SRAM’s class-leading Force 1 1x11 drivetrain, Praxis Peerless hollow-forged Zayante 1x crank with a WaveTech chainring, the CXRc Expert is race-ready out of the box. Tubeless ready Stan’s No Tubes Grail S1 rims along with TLR Kenda Small Block 8 40mm tires helps the versatility of the bike, which has been proven in major events such as the Belgian Waffle Ride and Dirty Kanza.
FEATURES
- Dirt Tuned MC9 carbon frame, 12mm thru-axle, Di2 compatible, BB86, internal routing, 1.5" tapered head tube & flat-mount disc brake
- Dirt Tuned MC9 full carbon fork,12mm thru-axle, internal brake routing, flat-mount brake
- Simple 1X drivetrain, frame is upgradeable to 2x
- SRAM Force 1 HRD flat mount hydraulic disc brakes
- 3T ARX II stem and ErgoTerra bar
- Masi by Token headset
- Praxis Works Zayante 1x crankset w/WaveTech chainring
- Tubeless-ready Stans NoTubes GrailS1 rims with 20mm internal width
- Tubeless-ready Kenda Small Block 8 tires - just add valve!
- Clearance for up to 40mm tires - with room for mud!
- Belgian Waffle Ride proven!
- SRAM Force 1 11 speed derraileur and shifter
| Frame Components | |
|---|---|
| Frame | Dirt-Tuned MC9 Carbon |
| Fork | Dirt-Tuned MC9 Full Carbon |
| Headset | Masi by Token 1.5" Tapered, sealed bearing |
| Drivetrain | |
| Cranks | Praxis Works Zayante M30 w/40t WaveTech Chainring |
| Bottom Bracket | Praxis Works M30 by Enduro |
| Chain | KMC X11-1 |
| Front Derailleur | N/A |
| Rear Deralleur | SRAM Force 1 |
| Derailleur Shifter | SRAM Force 1 |
| Pedals | N/A |
| Wheels | |
| Tires | Kenda Small Block 8 Pro Tubeless, 700x32mm |
| Wheels/Rims | Stans NoTubes Grail S1 Tubeless Ready |
| Hubs | Alloy Disc Sealed Bearing, Thru-Axle |
| Freewheel/Cassette | SRAM PG1130 11-36t, 11-spd |
| Braking System | |
| Brakes | SRAM Force Hydraulic Flat Mount Disc |
| Brake Levers | SRAM Force Hydraulic Disc |
| Other Components | |
| Grips | Masi Gripper+ Gel |
| Handle Bar | 3T Ergoterra Pro |
| Stem | 3T ARX II |
| Seat | Prologo Nago Evo T2.0 |
| Seat Post | Brev. M 3D Carbon Fiber, 27.2 x 300mm, 25mm offset |
| Seat Clamp | Alloy 31.8mm |
| Extras | Removeable Fender Mounts |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 71° | 74° | 515mm (20.3") | 490mm (19.3") | 425mm (16.7") | 68mm (2.7") | 990mm (39") | 753mm (29.6") | 542mm (21.3") | 360mm (14.2") | 45mm (1.8") | 90mm | 400mm | 170mm | |
| 52 | 72° | 73.5° | 535mm (21.1") | 520mm (20.5") | 425mm (16.7") | 68mm (2.7") | 996mm (39.2") | 772mm (30.4") | 555mm (21.9") | 371mm (14.6") | 45mm (1.8") | 100mm | 420mm | 172.5mm | |
| 55 | 72° | 73° | 560mm (22") | 550mm (21.7") | 425mm (16.7") | 68mm (2.7") | 1016mm (40") | 800mm (31.5") | 565mm (22.2") | 387mm (15.2") | 45mm (1.8") | 110mm | 420mm | 172.5mm | |
| 57 | 72° | 73° | 575mm (22.6") | 570mm (22.4") | 425mm (16.7") | 68mm (2.7") | 1031mm (40.6") | 822mm (32.4") | 588mm (23.1") | 395mm (15.6") | 45mm (1.8") | 120mm | 420mm | 175mm | |
| 60 | 72° | 72.5° | 590mm (23.2") | 600mm (23.6") | 425mm (16.7") | 68mm (2.7") | 1041mm (41") | 847mm (33.3") | 607mm (23.9") | 398mm (15.7") | 45mm (1.8") | 120mm | 440mm | 175mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
