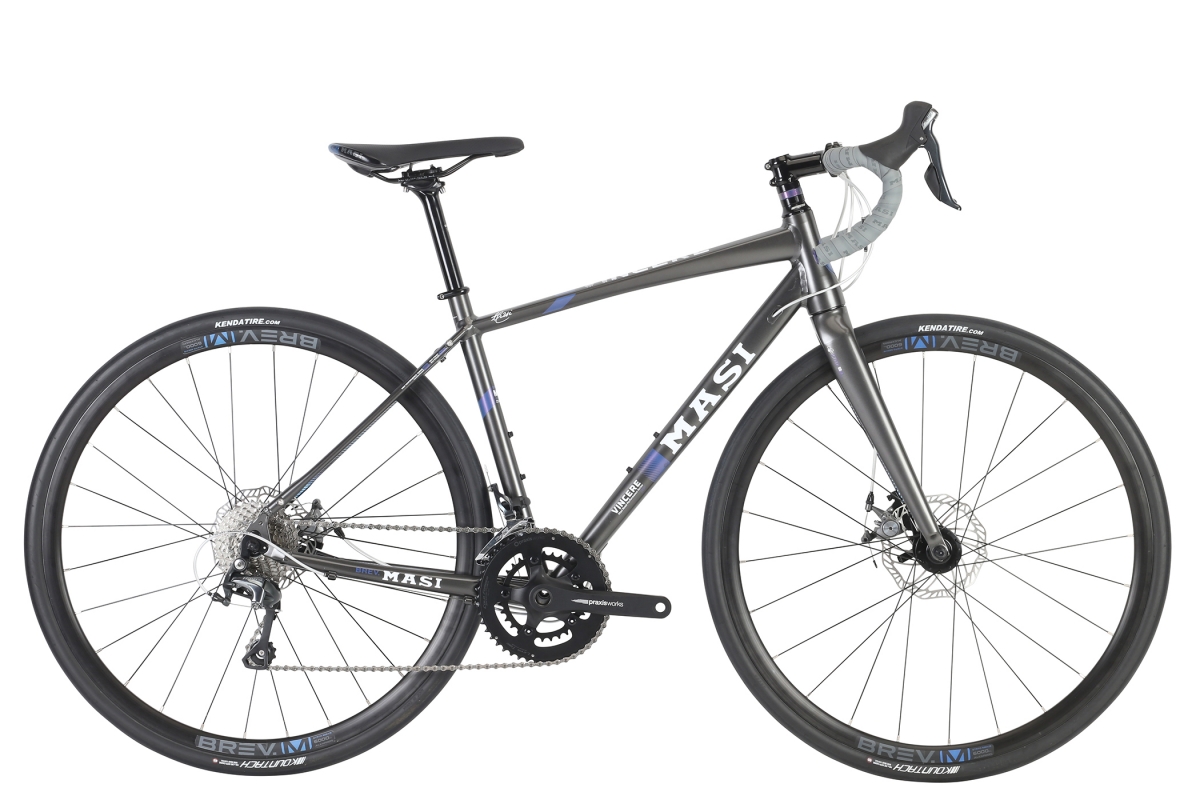

The 2018 Masi Vincere Bellissima is built around our Gran Fondo style "Comfort Tuned" geometry. The lightweight MA4 Aluminum frame features a taller tapered head tube combined with a carbon bladed fork to produce the perfect balance of comfort and precise handling. The Bellissima offers sizing options for riders that are more proportionately matched to their shorter upper body torso by utilizing our proprietary lightweight BREV. M zero offset seat post combined with shorter stem and narrower bars. Shimano’s popular 10 speed Tiagra derailleurs and shifters provide effortless and precise shifting while ProMax MS3.3R Flat mount disc brakes interface with Brev.M disc specific 28mm rims to deliver excellent control to suit a variety of conditions.
FEATURES
- Comfort Tuned MA5 disc aluminum frame, featuring Masi's proven endurance geometry, tapered 1.5" head tube & flat mount disc mounts
- Masi Elite/RS carbon fork with tapered 7075 alloy steerer & flat mount disc mounts
- ProMax MS3.3R mechanical disc brakes for all-condition stopping power
- Shimano Tiagra R4700 10 speed shifters & derailleurs
- Brev. M 3D forged cockpit proportionately designed for shorter torso's with zero offset post, shorter stem, and narrower bars.
- Praxis Works Alba M24 cranks with new 48/32t right-size gearing featuring a 1:1 low gear
- New Brev. M tubeless-compatible race Disc rims, 21mm internal
- Kenda Kriterium 28mm tires
- Clearance for up to a 32mm tire
| Frame Components | |
|---|---|
| Frame | Masi MA5 Disc Double-Butted Alloy w/Tapered 1.5" headtube, Flat Mount Disc Brake |
| Fork | Masi Elite/RS Disc, Carbon w/Tapered 7075 Alloy Steerer, Flat Mount Disc Brake |
| Headset | FSA No.42; Orbit C-40 Sealed 1-1/8 ACB Top, 1.5" Industrial Sealed Bottom |
| Drivetrain | |
| Cranks | Praxis Works Alba SubCompact M24 48/32t |
| Bottom Bracket | Praxis Works M24 |
| Chain | KMC X10 |
| Front Derailleur | Shimano Tiagra R4700 |
| Rear Deralleur | Shimano Tiagra R4700 |
| Derailleur Shifter | Shimano Tiagra R4700 |
| Pedals | Nylon Test Ride |
| Wheels | |
| Tires | Kenda Kriterium 700x28mm |
| Wheels/Rims | Brev M. Disc Tubeless Compatible, 21mm Internal |
| Hubs | Alloy Disc, QR, 24/28h |
| Freewheel/Cassette | Shimano HG500 11-32 10-spd |
| Braking System | |
| Brakes | LeeChi MS3.3 Flat Mount Mechanical Disc |
| Brake Levers | Shimano Tiagra R4700 |
| Other Components | |
| Grips | Masi Gripper+ Gel |
| Handle Bar | Brev. M Bellissima Compact Bend Alloy |
| Stem | Brev. M 3D Forged Alloy Flip Flop |
| Seat | Masi Corsa Comp |
| Seat Post | Brev. M 3D Forged Alloy, 27.2 x 300mm, 0mm offset |
| Seat Clamp | Alloy 31.8mm |
| Extras | Rack & Fender Mounts |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 72° | 74° | 530mm (20.9") | 465mm (18.3") | 425mm (16.7") | 73mm (2.9") | 993mm (39.1") | 758mm (29.8") | 554mm (21.8") | 371mm (14.6") | 45mm (1.8") | 90mm | 400mm | 170mm | |
| XS | 71° | 74° | 515mm (20.3") | 430mm (16.9") | 425mm (16.7") | 73mm (2.9") | 992mm (39.1") | 729mm (28.7") | 530mm (20.9") | 363mm (14.3") | 50mm (2") | 90mm | 400mm | 165mm | |
| M | 72.5° | 73° | 545mm (21.5") | 500mm (19.7") | 425mm (16.7") | 70mm (2.8") | 995mm (39.2") | 788mm (31") | 572mm (22.5") | 370mm (14.6") | 45mm (1.8") | 100mm | 420mm | 170mm | |
| M/L | 72.5° | 73° | 560mm (22") | 535mm (21.1") | 425mm (16.7") | 68mm (2.7") | 1006mm (39.6") | 815mm (32.1") | 591mm (23.3") | 379mm (14.9") | 40mm (1.6") | 100mm | 420mm | 172.5mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
