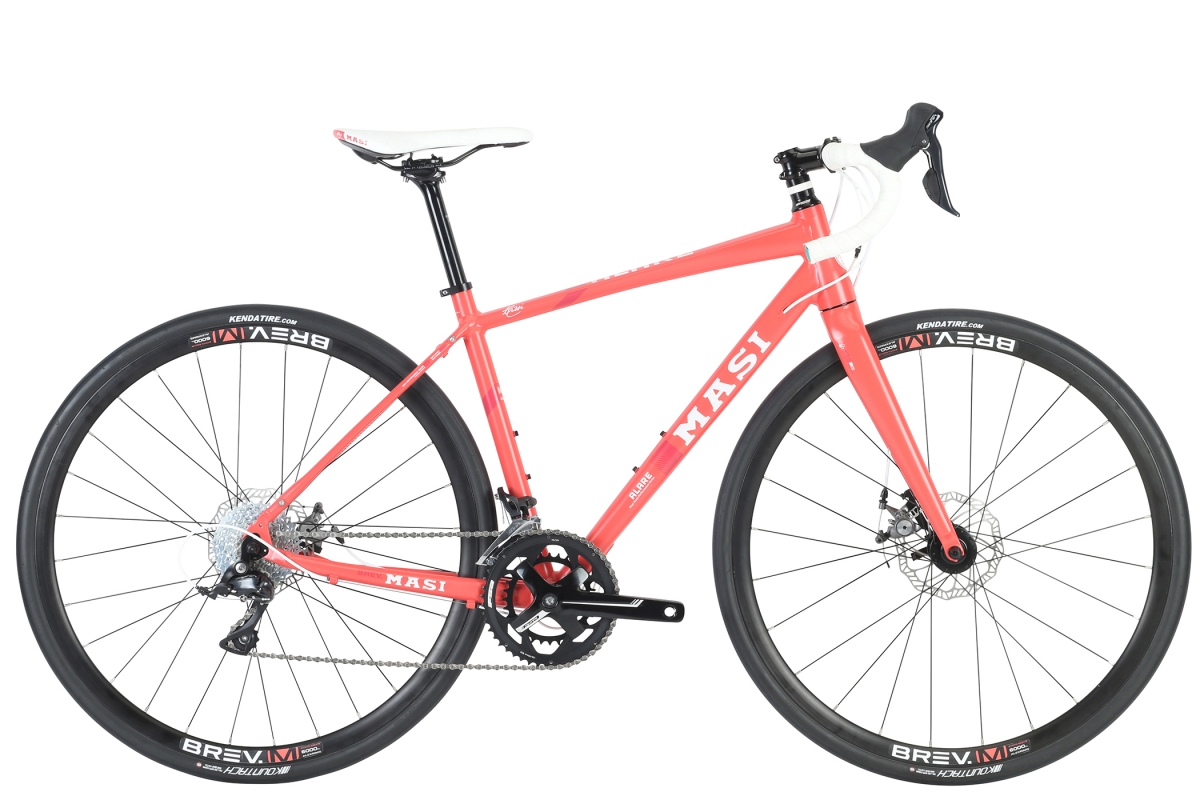

Alare Bellissima Disc

  • Year: 2018
  • MSRP: $979.99 *
  • Sizes: XS, S, M, M/L
  • Colors: Coral / White
  • Weight:

Stylish, affordable, and packed with modern upgrades, the 2018 Masi Alare Bellisima proves that performance cycling doesn’t have to break the bank. The Alare Bellissima offers sizing options for riders that are more proportionately matched to their shorter upper body torso by utilizing our proprietary BREV. M zero offset seat post combined with shorter stem and narrower bars. The MA4 6000 series aluminum frame features a taller tapered head tube while the Alare’s “Comfort Tuned“ geometry creates the perfect choice for those challenging Gran Fondos. The addition of road specific flat mount disc brakes and our proprietary BREV.M 28mm rims combine to deliver a great value package that includes the precision and reliability of Shimano’s Sora R3000 group.

FEATURES

  • Comfort Tuned MA5 disc aluminum frame, featuring Masi's proven endurance geometry, tapered 1.5" head tube & flat mount disc mounts
  • Masi Elite/RS carbon fork with tapered 7075 alloy steerer & flat mount disc mounts
  • ProMax MS3.3R mechanical disc brakes for all-condition stopping power
  • Shimano Sora R3000 9 speed shifters & derailleurs
  • Brev. M 3D forged cockpit proportionately designed for shorter torso's with zero offset post, shorter stem, and narrower bars.
  • FSA Vero Pro cranks with new 48/32t right-size gearing featuring a 1:1 low gear
  • New Brev. M tubeless-compatible race Disc rims, 21mm internal
  • Kenda Kriterium 28mm tires
  • Clearance for up to a 32mm tire
SPECIFICATIONS
Frame Components
Frame Masi MA5 Disc Double-Butted Alloy w/Tapered 1.5" headtube, Flat Mount Disc Brake
Fork Masi Elite/RS Disc, Carbon w/Tapered 7075 Alloy Steerer, Flat Mount Disc Brake
Headset FSA No.42; Orbit C-40 Sealed 1-1/8 ACB Top, 1.5" Industrial Sealed Bottom
Drivetrain
Cranks FSA Vero Pro SubCompact 48/32t
Bottom Bracket FSA Sealed Cartridge
Chain KMC X9
Front Derailleur Shimano Sora R3000
Rear Deralleur Shimano Sora R3000
Derailleur Shifter Shimano Sora R3000
Pedals Nylon Test Ride
Wheels
Tires Kenda Kriterium 700x28mm
Wheels/Rims Brev M. Disc Tubeless Compatible, 21mm Internal
Hubs Alloy Disc, QR, 24/28h
Freewheel/Cassette Sunrace CSM90 11-32 9spd
Braking System
Brakes LeeChi MS3.3 Flat Mount Mechanical Disc
Brake Levers Shimano Sora R3000
Other Components
Grips Masi Gripper+ Gel
Handle Bar Brev. M Bellissima Compact Bend Alloy
Stem Brev. M 3D Forged Alloy Flip Flop
Seat Masi Corsa Comp
Seat Post Brev. M 3D Forged Alloy, 27.2 x 300mm, 0mm offset
Seat Clamp Alloy 31.8mm
Extras Rack & Fender Mounts
GEOMETRY
Size Head Angle Seat Angle Top Tube (Effective) Seat Tube (C-T) Chainstay Length BB Drop Wheel Base Stand Over Stack Height Reach Fork Height Fork Offset Stem Length Bar Width Crank Length
XS 71° 74° 515mm (20.3") 430mm (16.9") 425mm (16.7") 73mm (2.9") 992mm (39.1") 729mm (28.7") 530mm (20.9") 363mm (14.3") 50mm (2") 90mm 400mm 165mm
S 72° 74° 530mm (20.9") 465mm (18.3") 425mm (16.7") 73mm (2.9") 993mm (39.1") 758mm (29.8") 554mm (21.8") 371mm (14.6") 45mm (1.8") 90mm 400mm 170mm
M 72.5° 73° 545mm (21.5") 500mm (19.7") 425mm (16.7") 70mm (2.8") 995mm (39.2") 788mm (31") 572mm (22.5") 370mm (14.6") 45mm (1.8") 100mm 420mm 170mm
M/L 72.5° 73° 560mm (22") 535mm (21.1") 425mm (16.7") 68mm (2.7") 1006mm (39.6") 815mm (32.1") 591mm (23.3") 379mm (14.9") 40mm (1.6") 100mm 420mm 172.5mm
