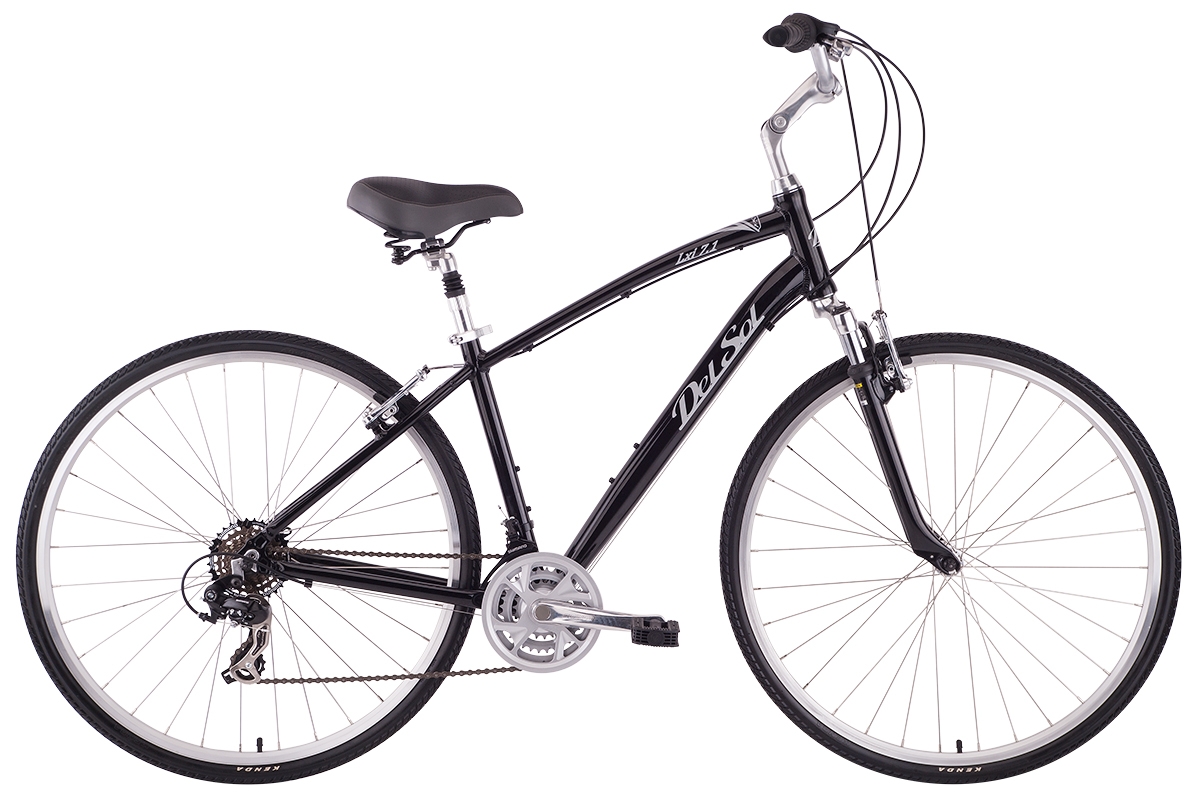

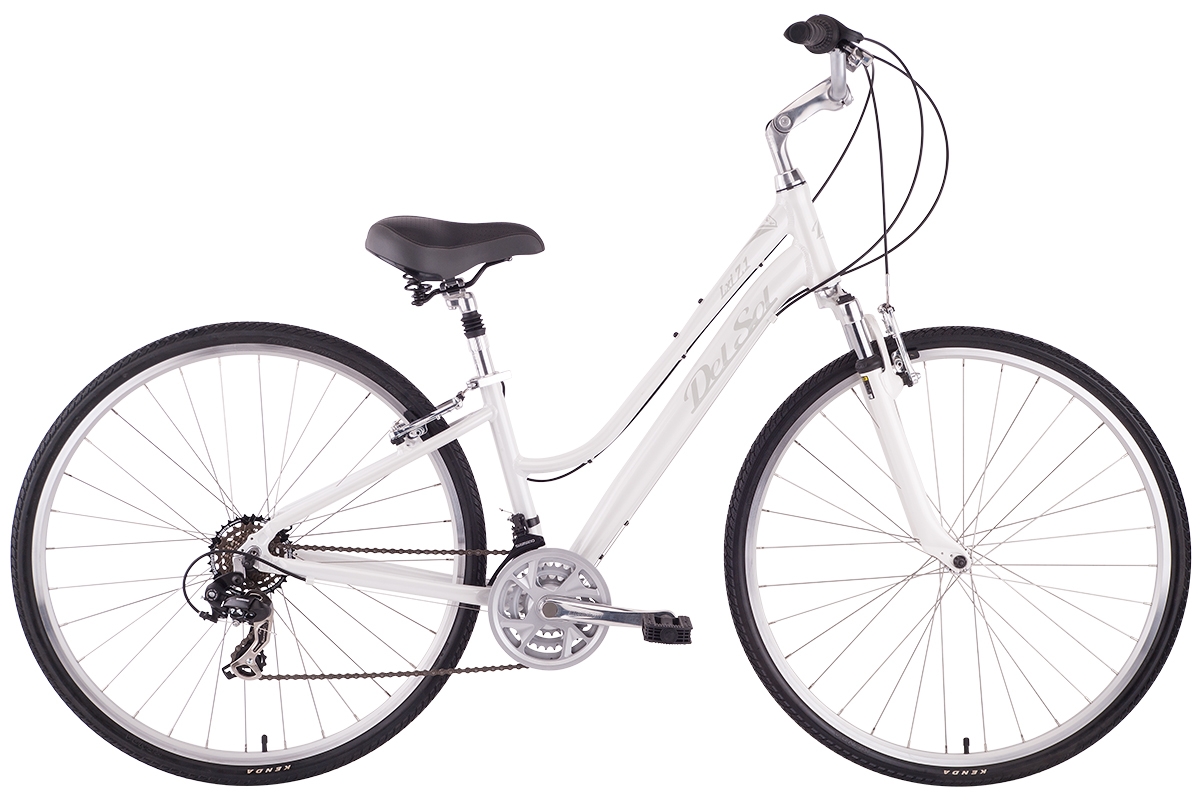

Easy on both your back and your budget, the stylish and lightweight 2014 Lxi 7.1 shares the same upright seating position as the Lxi 7.2, complete with adjustable rise stem, comfortable saddle, suspension seatpost and front suspension fork for terrific shock absorption both on and off-road. Featuring an ultra-smooth Shimano 7 speed drivetrain with Revo twist shifters and a Tourney rear derailleur, the Lxi 7.1 is effortless to operate, making every ride a pleasure.
FEATURES
- Del Sol Lightweight 6061 aluminum exclusive upright comfort frame
- Compliant 30mm travel suspension fork
- Shimano Revo 7 speed twist shifters with Shimano Tourney rear derailleur
- Custom Del Sol comfort plush saddle
- Alloy adjustable rise comfort stem
- Smooth rolling 700c all-purpose tires on double-wall alloy rims
| Frame Components | |
|---|---|
| Frame | Lxi 6061 alloy frame |
| Fork | HL C-120E, 30mm travel |
| Drivetrain | |
| Cranks | SR Suntour XR-172 42/32/22 w/ sealed cartridge |
| Front Derailleur | Shimano Tourney TZ-30 |
| Rear Deralleur | Shimano Tourney TX-35 |
| Derailleur Shifter | Shimano Revo Twist Shifter, 3x7 speed |
| Pedals | Comfort w/Kraton rubber inserts |
| Wheels | |
| Tires | Kenda Keen 700x38c |
| Wheels/Rims | Doublewall DH-18 |
| Hubs | Alloy 32h cassette w/ quick release |
| Freewheel/Cassette | Shimano HG 20- 12-32T 7 speed |
| Braking System | |
| Brakes | Promax TX-117 linear pull |
| Brake Levers | Tektro alloy with Kraton insert |
| Other Components | |
| Grips | Velo Comfort |
| Handle Bar | Steel riser bar, 80mm Rise |
| Stem | Adjustable stem |
| Seat | Del Sol Comfort |
| Seat Post | Suspension 27.2 x 300mm |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 ST | 70.5° | 74° | 586mm (23.1") | 355mm (14") | 450mm (17.7") | 1037mm (40.8") | 626mm (24.6") | ||||||||
| 17 ST | 70.5° | 74° | 598mm (23.5") | 430mm (16.9") | 450mm (17.7") | 1062mm (41.8") | 638mm (25.1") | ||||||||
| 14 | 70.5° | 74° | 535mm (21.1") | 355mm (14") | 450mm (17.7") | 1031mm (40.6") | 672mm (26.5") | ||||||||
| 17 | 70.5° | 74° | 548mm (21.6") | 430mm (16.9") | 450mm (17.7") | 1062mm (41.8") | 702mm (27.6") | ||||||||
| 20 | 71° | 73° | 560mm (22") | 508mm (20") | 450mm (17.7") | 1069mm (42.1") | 736mm (29") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
