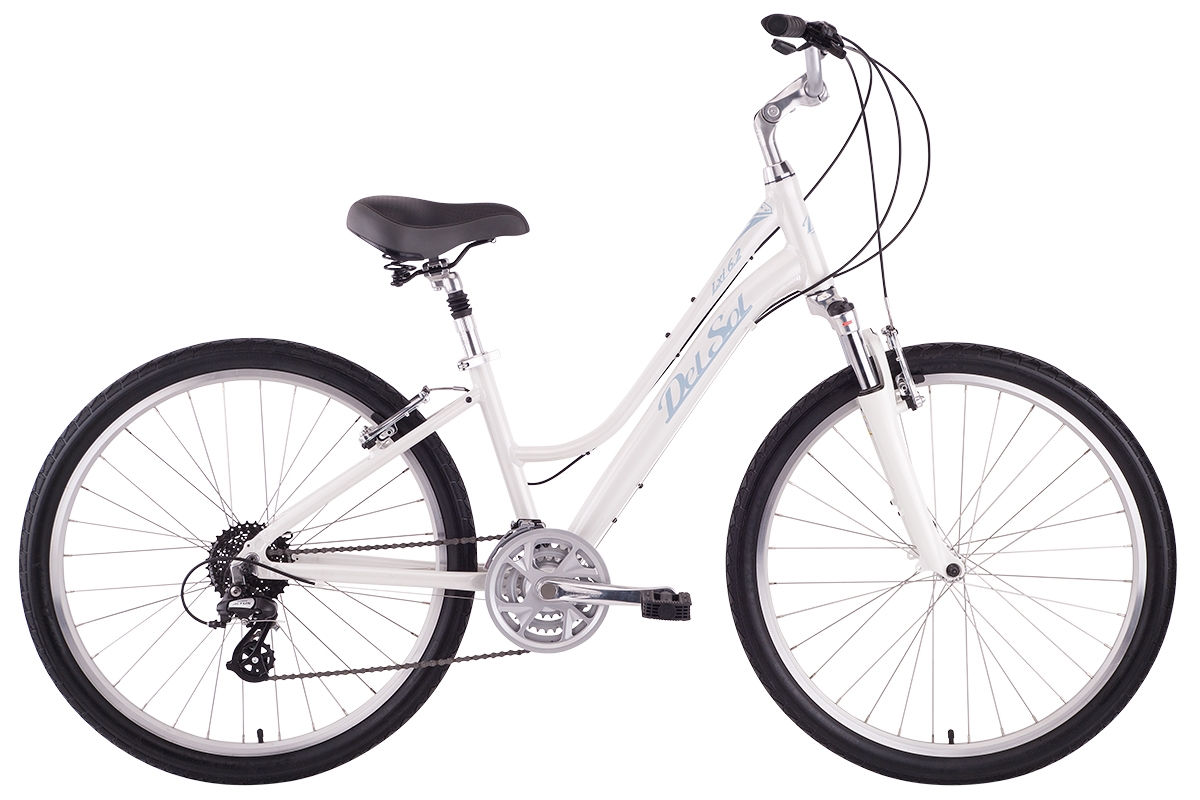

Leading its category, the 2014 Lxi 6.2 features an extremely comfortable upright riding position with an adjustable rise stem. Other comfort features include a shock absorbing seatpost and a front suspension fork with lockout that keeps the bumps on the road. Equipped with high quality Shimano 8 speed shifting that is smooth and trouble-free allowing the rider to enjoy the adventure of the day.
FEATURES
- Del Sol Lightweight 6061 aluminum exclusive upright comfort frame
- Custom Del Sol comfort plush saddle with suspension seat post
- Compliant Suntour 63mm travel fork with lockout
- Shimano Altus rear derailleur powered by Shimano
- EZ fire 8 speed shifters
- Alloy adjustable rise comfort stem
- Smooth rolling 700c all-purpose tires on double-wall alloy rims
| Frame Components | |
|---|---|
| Frame | Lxi 6061 alloy frame |
| Fork | Suntour NEX MLO, 63mm Travel w/ lock out |
| Drivetrain | |
| Cranks | SR Suntour XR-172 42/32/22 w/ sealed cartridge |
| Front Derailleur | Shimano Altus |
| Rear Deralleur | Shimano Altus |
| Derailleur Shifter | Shimano EF-51 EZ-fire 3x8-speed |
| Pedals | Comfort w/Kraton rubber inserts |
| Wheels | |
| Tires | CY Comfort 26 x 1.95" |
| Wheels/Rims | Doublewall DH-18 |
| Hubs | Alloy 32h cassette w/ quick release |
| Freewheel/Cassette | Shimano HG 31- 11-32T 8 speed |
| Braking System | |
| Brakes | Promax TX-117 linear pull |
| Brake Levers | Tektro alloy with Kraton insert |
| Other Components | |
| Grips | Velo Comfort |
| Handle Bar | Steel riser bar, 80mm Rise |
| Stem | Adjustable stem |
| Seat | Del Sol Comfort |
| Seat Post | Suspension 27.2 x 300mm |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 ST | 70.5° | 72.5° | 561mm (22.1") | 355mm (14") | 437mm (17.2") | 1021mm (40.2") | 648mm (25.5") | ||||||||
| 17 ST | 70.5° | 72.5° | 580mm (22.8") | 430mm (16.9") | 437mm (17.2") | 1045mm (41.1") | 659mm (25.9") | ||||||||
| 14 | 70.5° | 72.5° | 522mm (20.6") | 355mm (14") | 437mm (17.2") | 1021mm (40.2") | 680mm (26.8") | ||||||||
| 17 | 70.5° | 72.5° | 531mm (20.9") | 430mm (16.9") | 437mm (17.2") | 1045mm (41.1") | 736mm (29") | ||||||||
| 20 | 70.5° | 72.5° | 558mm (22") | 508mm (20") | 437mm (17.2") | 1070mm (42.1") | 763mm (30") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
