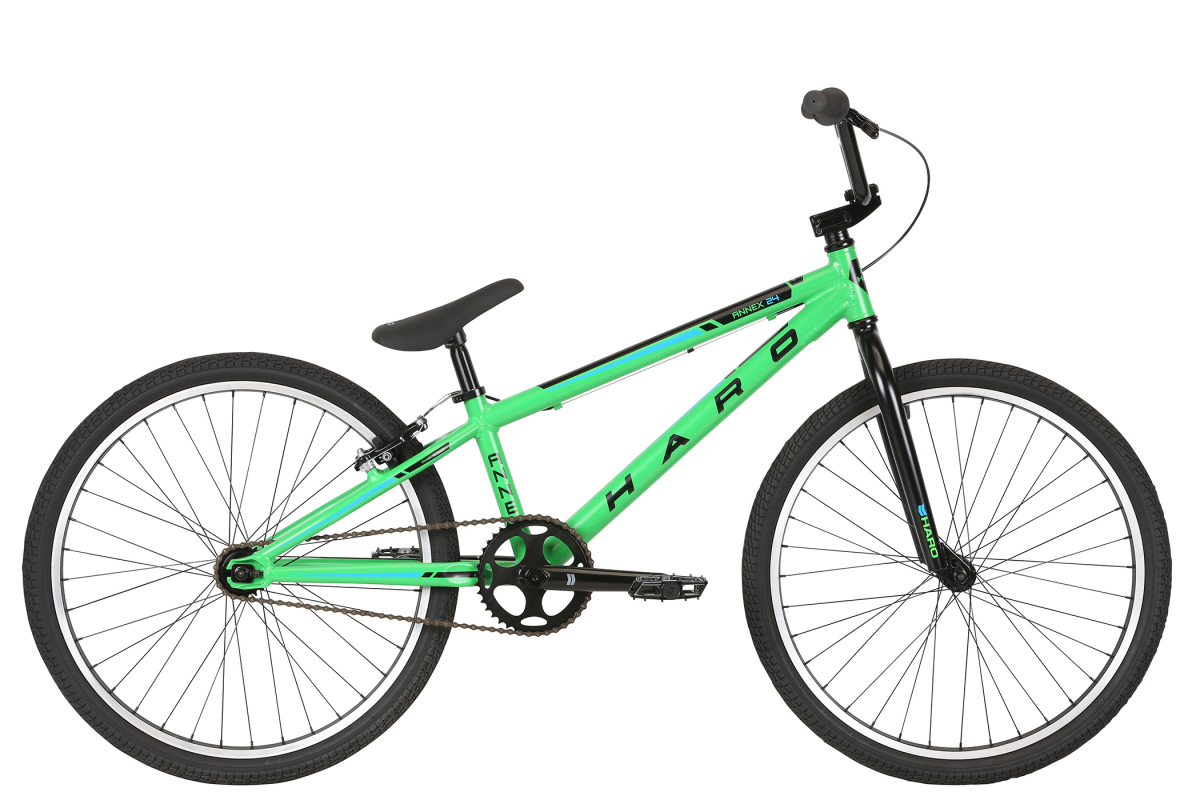

Rounding out the Annex line is the Annex 24 model. Centered around a 21.75" top tube cruiser sized frame, the Pro 24 features the same spec found on the 20" Annex models. With 175mm 3 piece chromoly cranks and full size 24" 36 spoke alloy wheels, the Pro 24 is strong and versatile for riding at the BMX track or cruising through the neighborhood.
FEATURES
- 6061 series alloy frame with 3D dropouts with integrated chain tensioners
- 100% chromoly fork
- Hi-ten bars and Haro alloy front load stem
- Haro 3-piece chromoly 8-spline race cranks
- Padded one piece seat with built in alloy post
- Kenda Kontact tires
- Promax V-Brake and lever
| Frame Components | |
|---|---|
| Frame | 6061 Series Alloy Frame w/ 3D Dropouts w/ Built In Chain Tensioners |
| Fork | Full Cr-Mo 1 1/8" Threadless w/ Tapered Legs |
| Headset | Threadless Loose Ball, 1 1/8" |
| Drivetrain | |
| Cranks | Haro 3-pc Cr-Mo, 175mm |
| Sprocket | 40t Alloy |
| Bottom Bracket | Sealed Bearing Euro |
| Gearing | 40/18 |
| Chain | KMC 410 |
| Pedals | DX Alloy, 9/16" |
| Wheels | |
| Tires | Kenda "Kontact" 24 x 1.75"" |
| Wheels/Rims | 24" Alloy 36h, Single Wall |
| Front Hub | Alloy 36h, Loose Ball |
| Rear Hub | Alloy Flip-Flop 36h, Loose Ball |
| Axle | 3/8" |
| Freewheel/Cassette | 18T Freewheel |
| Braking System | |
| Brakes | Promax MV-295L Alloy V-Brake |
| Brake Levers | Promax XL-378 Alloy Lever |
| Other Components | |
| Grips | Micro Knurl Grips |
| Handle Bar | Hi-Ten, 5.25" Rise |
| Stem | Forged Alloy Top-Load, 45mm Ext. |
| Seat | Haro Slim Padded 1-pc |
| Seat Post | Alloy, 27.2mm |
| Seat Clamp | Alloy, 31.8mm |
| Size | Head Angle | Seat Angle | Top Tube | Seat Tube | Chainstay | BB Height | Stand Over |
|---|---|---|---|---|---|---|---|
| 24 | 73° | 71° | 553mm (21.75") | 266.5mm (10.5") | 397mm (15.6") | 305mm (12") | 599mm (23.6") |
