Team Issue
| Year | 2012 |
|---|---|
| MSRP | $655.00 * |
| Sizes | 21" |
| Colors | Matte Red |
| Weight | 22.25 lbs |
This is the top of the food chain when it comes to 6061 aluminum race bikes. We added our aftermarket CLiQ forks and a two-piece crankset that features an aftermarket-grade external BB and created a sub 22-pound bike meant to do one thing; win races.
FEATURES
- 6061 T-6 Alloy Frame with a 21" Top Tube and 3D Drop Outs with Chain Tensioners
- Cliq chromoly tapered forks
- 175mm 2-Piece Alloy Crank with External Cartridge Sealed Bearings

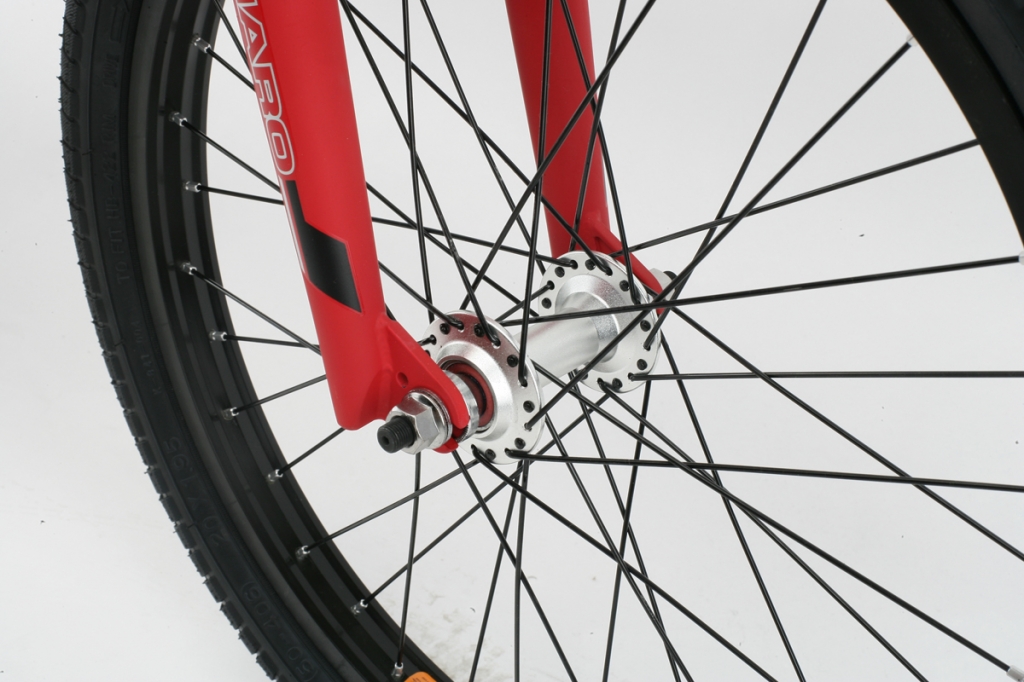

- Sealed Flip Flop Hub with 36 Spoke
- Pivotal Seat and Seat Post
- Kenda "Kontact" Tires
| Frame Components | |
|---|---|
| Frame | 6061 Alloy- 3D dropout w/chain tensioner - 21" TT |
| Fork | Haro CLiQ fork - Full Crmo 1-1/8" Threadless w/ tapered legs |
| Drivetrain | |
| Cranks | 2-pc Alloy 175mm, Euro Sealed Bearing external cartrige BB |
| Gearing | 39/14 freewheel |
| Pedals | Platform DX style alloy |
| Wheels | |
| Tires | Kenda "Kontact" K841 20x1.95 F/20x1.75 R |
| Wheels/Rims | Alienation PBR 36H alloy front and rear; 36H Alloy Shell sealed bearing - flip-flop rear |
| Hubs | 36H Alloy Shell sealed bearing / flip-flop rear |
| Braking System | |
| Rotor | N/A |
| Other Components | |
| Grips | Velo micro knurled grips |
| Handle Bar | Full Crmo 8" rise |
| Seat | Haro plastic Pivotal seat w/Pivotal post |
| Pegs | N/A |
| Size | Head Angle | Seat Angle | Top Tube | Seat Tube | Chainstay | BB Height | Stand Over |
|---|
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
