Set up almost identical to our Pro and Pro XL models, the Pro 24 has a 21.75" TT, 5.25" bars, and 40/18 gearing. The angles are virtually identical to our 20" set up so transitioning from one bike to another is a snap. You won't find another 24" out there that rides as much like a 20" as ours does.
FEATURES
- Full chromoly fork
- 175mm 3-Piece Crmo Crank Set with Sealed BB
- 36 Spoke Alloy Rims with Alloy Hubs & Sealed Bearings
- Kenda "K-Rad" Tires
- DX Style Alloy 9/16" Pedals
- 6061 T-6 Alloy Frame with a 21.75" Top Tube and 3D Drop Outs with Chain Tensioners
| Frame Components | |
|---|---|
| Frame | 6061 Alloy- 3D dropout w/chain tensioner - 21.75" TT |
| Fork | Full Crmo 1-1/8" Threadless |
| Drivetrain | |
| Cranks | 3-pc tubular Crmo 175mm, Euro Sealed Bearing BB |
| Gearing | 40/18 freewheel |
| Pedals | Platform DX style alloy |
| Wheels | |
| Tires | Kenda "K-Rad" K905 Front and Rear 24x1.95 |
| Wheels/Rims | Alienation PBR 36H alloy front and rear, 36H Alloy Shell sealed bearing hubs / flip-flop rear |

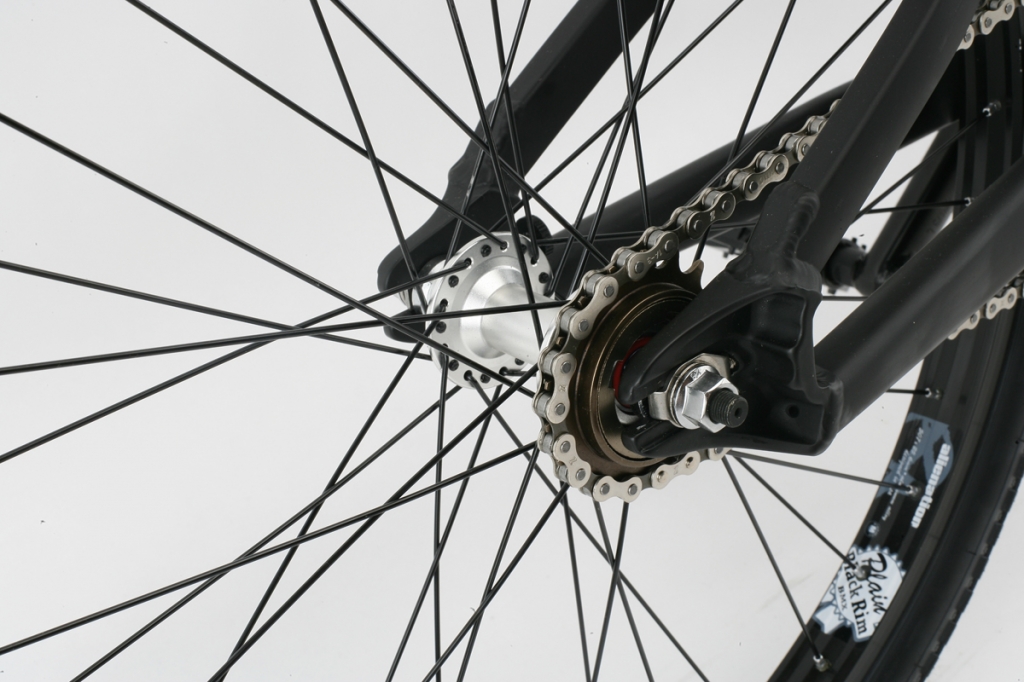

| Hubs | 36H Alloy Shell sealed bearing / flip-flop rear |
| Braking System | |
| Rotor | N/A |
| Other Components | |
| Grips | Velo micro knurled grips |

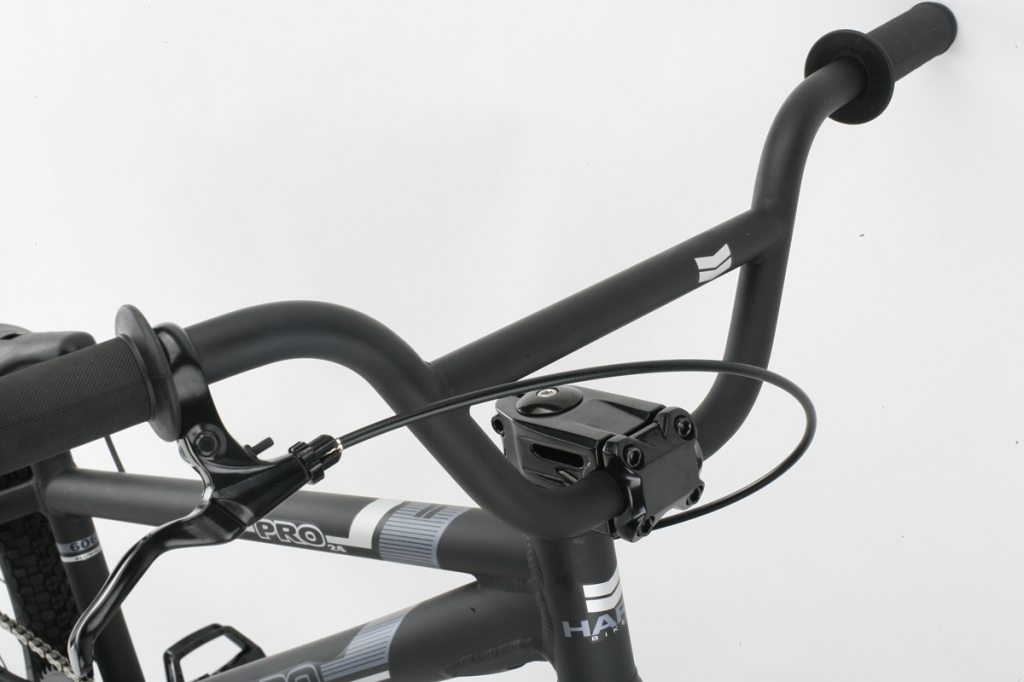

| Handle Bar | Hi-Ten- 5.25" rise |
| Seat | Haro plastic Pivotal seat w/Pivotal post |
| Pegs | N/A |
| Size | Head Angle | Seat Angle | Top Tube | Seat Tube | Chainstay | BB Height | Stand Over |
|---|
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
