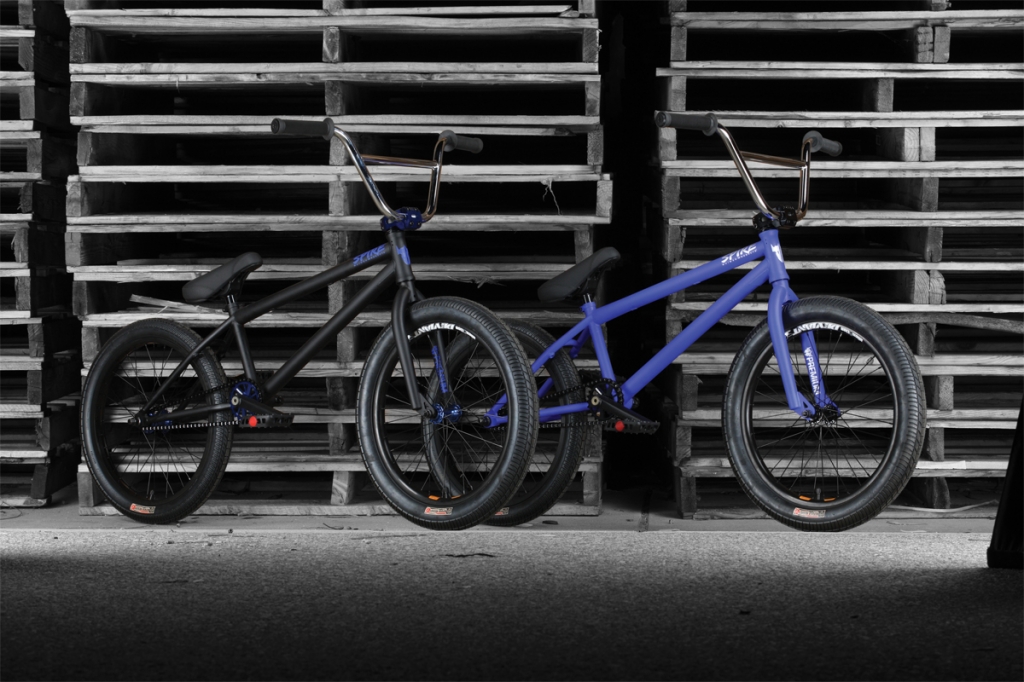

Spire

Year 2012
MSRP $740.00 *
Sizes 20.5", 21"
Colors Matte Electric Blue, Matte Black
Weight 24 lbs

Just like the Inception, the Spire uses an aftermarket grade full chromoly frame with a double-butted down tube. It's also spec'd with just about every aftermarket part we make - Sub 10 V2 stem, Gnar Star sprocket, Premium 16-spline cranks, Street tires and Counterfeit grips. This is as close to a custom build as you're going to get without going into quadruple digits.

FEATURES

  • Full chromoly frame with double-butted down tube, Mid BB, welded integrated seat clamp
  • Full chromoly forks with tapered legs
  • Full chromoly bars 8" (on 20.5") or 8.25" (on 21") with Sub-10 V2 CNC-machined alloy front load stem
  • Premium full chromoly 175mm 16-spline cranks with sealed Mid BB
  • Premium Gnar Star 25T CNC-machined alloy sprocket
  • Odyssey Twisted plastic pedals
  • Premium Street tires; 2.25" front, 2.0" rear
  • Premium Fat Capitol with forged pivotal post
SPECIFICATIONS
Frame Components
Frame Full Crmo Premium frame w/ welded seat clamp and butted DT - 20.5" or 21" TT
Fork 1 1/8" Full Crmo- Threadless w/tapered legs
Drivetrain
Cranks Premium 16 spline full Crmo 175mm w/Sealed MID BB
Gearing 25/9 w/Sealed Bearing Cassette Hub and 1pc Driver
Pedals Odyssey plastic pedals
Wheels
Tires Premium Street Tires, 20x2.25 F / 20x2.0 R
Wheels/Rims Alienation 36h Deviant dw front/36h Black Sheep dw rear, 36H alloy sealed 3/8" Frt, 36H Alloy sealed cassette rear 14mm w/9T driver
Hubs 36H alloy sealed 3/8" Frt, 36H Alloy sealed cassette rear 14mm w/9T driver
Braking System
Rotor N/A Straight Cable
Other Components
Grips Premium Counterfeit
Handle Bar Full Crmo - 8" rise w/20.5" frame, 8.25" rise w/21" frame
Seat Premium Fat Capitol Pivotal seat with Pivotal post
Pegs N/A
GEOMETRY
Size Head Angle Seat Angle Top Tube Seat Tube Chainstay BB Height Stand Over

RESOURCES

Owner's manual: Bike Manual PDF

*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
