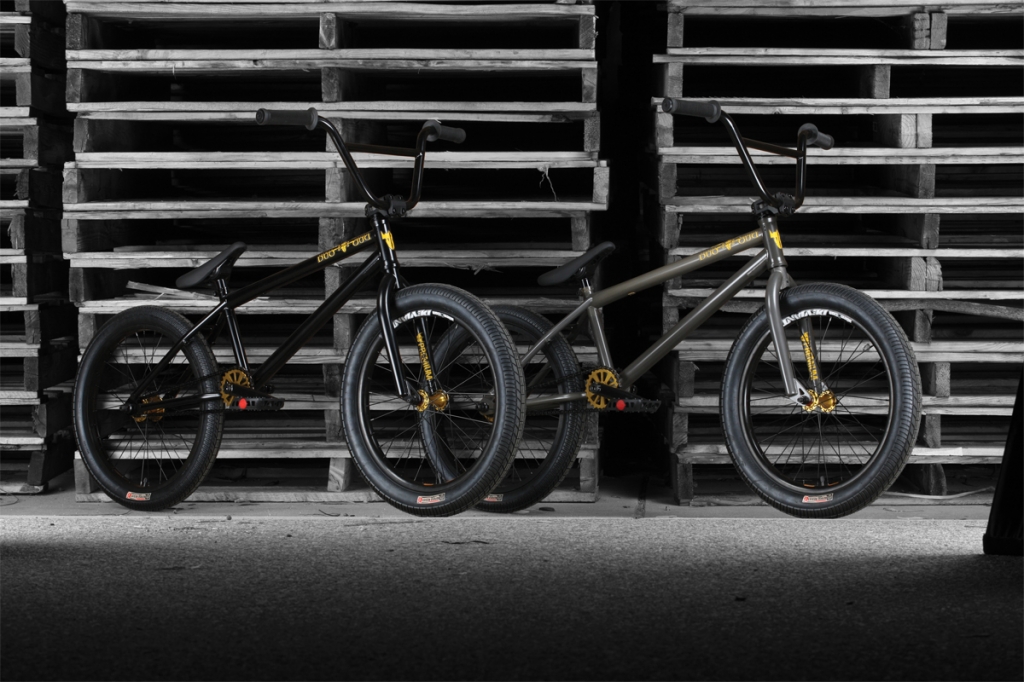

Duo
| Year | 2012 |
|---|---|
| MSRP | $545.00 * |
| Sizes | 20.5", 21" |
| Colors | SG Acid Bath, Duo SG Black |
| Weight | 24.5 lbs |
Set up similar to the Broadway, the Duo also runs a five-tubes chromoly frame, chromoly tapered forks, and chromoly bars, and although convertible, does come with brakes. You'll also find a sealed BB, headset, and rear cassette.
FEATURES
- Premium five-tubes chromoly frame with Mid BB and internal head tube
- Full chromoly forks with tapered legs
- Full chromoly bars 8" (on 20.5") or 8.25" (on 21") with alloy front load stem
- Three-piece chromoly 175mm 8-spline cranks with sealed Mid BB
- Premium padded Pivotal seat with forged pivotal post
- Premium Street tires; 2.25" front, 2.0" rear
- Odyssey Twisted plastic pedals
| Frame Components | |
|---|---|
| Frame | 5 tubes crmo w/welded seat clamp and removable brake mounts - 20.5" or 21" TT |
| Fork | 1 1/8" Full Crmo- Threadless w/tapered legs |
| Drivetrain | |
| Cranks | 3 pc. tubular Crmo 175mm w/sealed MID BB |
| Gearing | 25/9 w/Sealed Bearing Cassette Hub and 1pc Driver |
| Pedals | Odyssey plastic pedals |
| Wheels | |
| Tires | Premium Street Tires, 20x2.25 F / 20x2.0 R |
| Wheels/Rims | Alienation 36h Deviant dw front/36h Black Sheep dw rear, 36H alloy sealed 3/8" Frt, 36H Alloy sealed cassette rear 14mm w/9T driver |
| Hubs | 36H alloy sealed 3/8" Frt, 36H Alloy sealed cassette rear 14mm w/9T driver |
| Braking System | |
| Rotor | N/A Straight Cable |
| Other Components | |
| Grips | Premium Counterfeit |
| Handle Bar | Full Crmo - 8" rise w/20.5" frame, 8.25" rise w/21" frame |
| Seat | Premium slim padded Pivotal seat with Pivotal post |
| Pegs | N/A |
| Size | Head Angle | Seat Angle | Top Tube | Seat Tube | Chainstay | BB Height | Stand Over |
|---|
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
