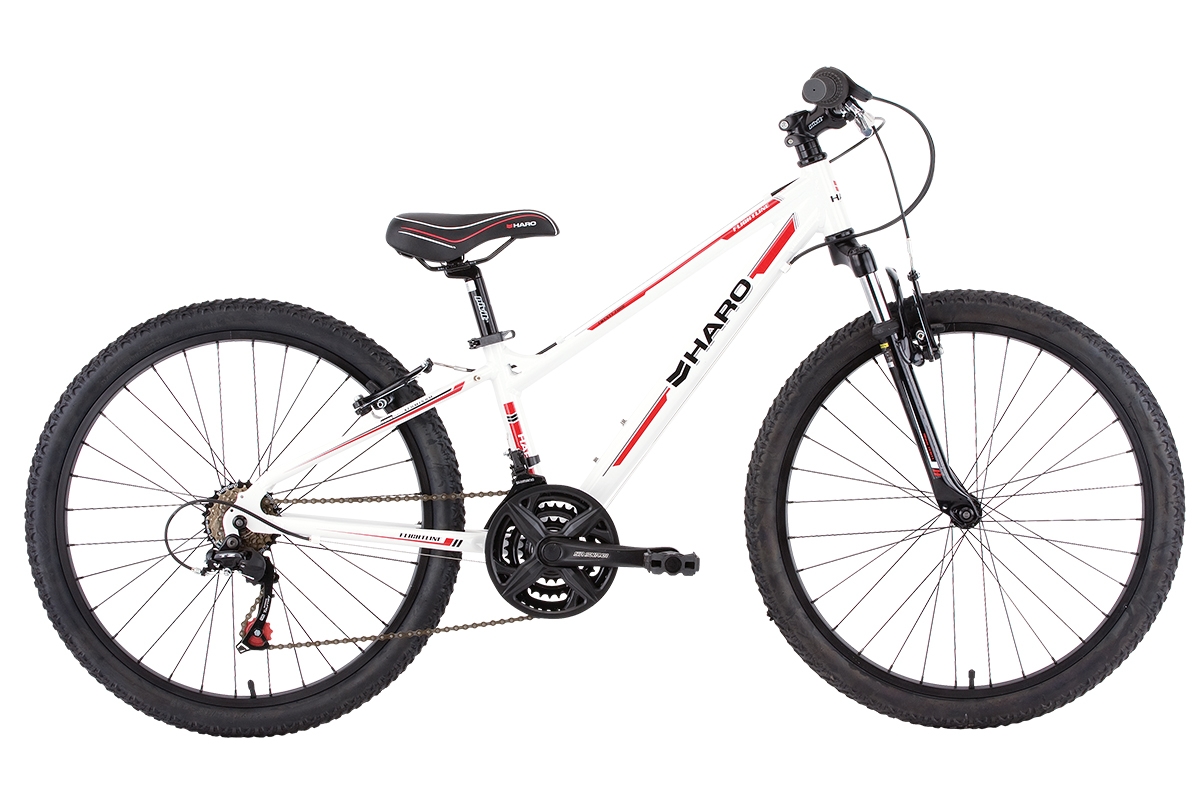

Flightline 24

Year 2013
MSRP $329.99 *
Sizes 24"
Colors Black / Green, White / Red, Black / Pink
Weight 25.5 lbs

Whether you’re a budding cross country racer or just looking for a great around-the-neighborhood bike, our Flightline 24 covers both ambitions with ease (and everything in between). Featuring the same user-friendly low-profile standover height and FL3G frame design as its little brother, the Flighline 24 is spec’d with real Shimano componentry, from shifters to derailleurs, which translates to a buttery smooth transmission – perfect for little hands just learning how to shift.

FEATURES

  • HL 410E fork- 40mm travel fork
  • SR Suntour XCC-T202 42/34/24 crankset
  • Shimano Tourney TZ-50 rear derailleur with TZ-50 front derailleur
  • Shimano Revo, 6 speed
  • Pivit alloy micro adjust seatpost
SPECIFICATIONS
Frame Components
Frame Flightline 24
Fork Haro 410-E, 40mm travel
Headset Steel threadless
Drivetrain
Cranks SR Suntour XCC 102, 42/34/24
Bottom Bracket Square taper
Chain KMC Z33
Front Derailleur Shimano TZ-30
Rear Deralleur Shimano TZ-50
Derailleur Shifter Shimano Revo, 6 speed
Pedals Nylon ATB
Wheels
Tires H-5120, 24 x 1.95
Wheels/Rims DH-168 32h rims, Pivit steel hubs, stainless steel spokes
Freewheel/Cassette Shimano TZ-20, 6 speed freewheel, 14-28
Braking System
Brakes Alloy direct pull w/ linear spring
Brake Levers Promax BL-42G
Other Components
Grips Dual density
Handle Bar Pivit riser bar, 30mm rise, 580mm width
Stem Pivit alloy, 15 degree rise
Seat Haro Junior
Seat Post Pivit alloy micro adjust, 27.2 x 250mm
Seat Clamp Pivit alloy 31.8 quick release
GEOMETRY
Size Head Angle Seat Angle Top Tube (Effective) Seat Tube (C-T) Chainstay Length BB Drop Wheel Base Stand Over Stack Height Reach Fork Height Fork Offset Stem Length Bar Width Crank Length

RESOURCES

Owner's manual: Bike Manual PDF

*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
