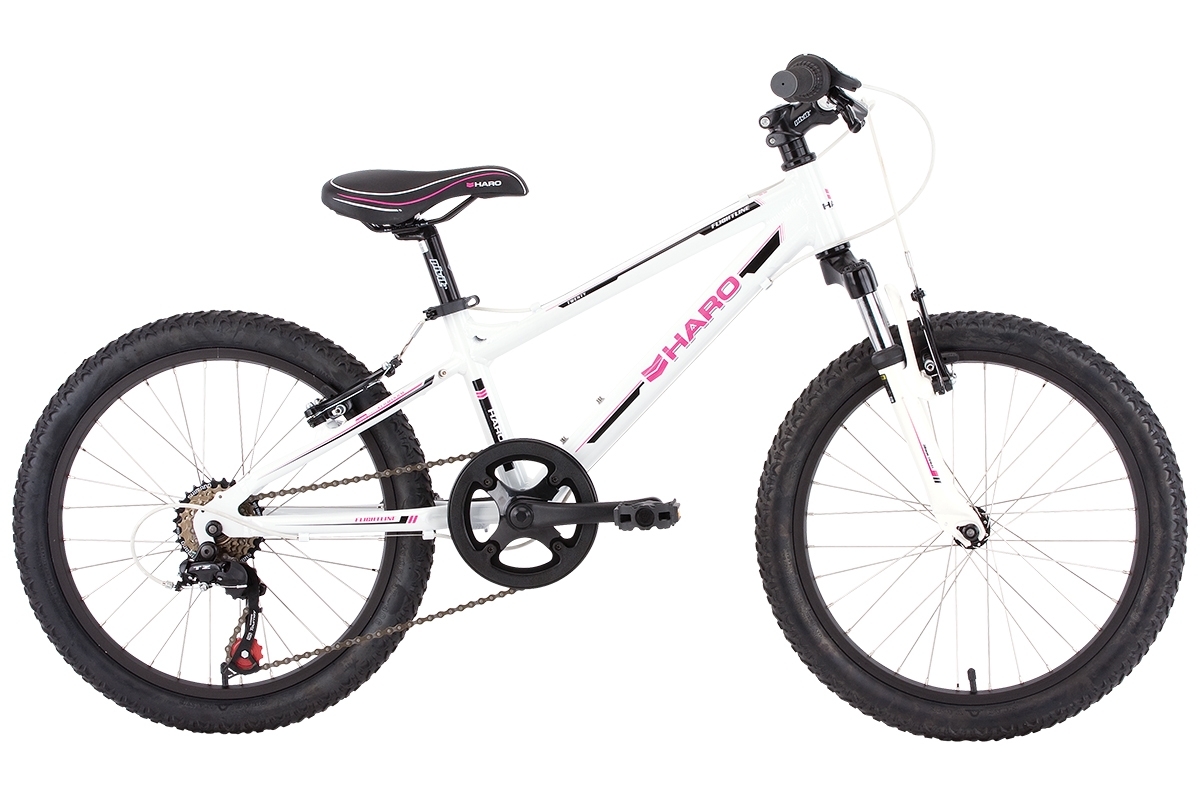

Flightline 20

  • Year: 2013
  • MSRP: $309.99 *
  • Sizes: 20"
  • Colors: Black / Yellow, White / Green, White / Pink
  • Weight: 24.3 lbs
  • NO LONGER AVAILABLE

Some people might suggest that because this is a “kids bike”, it doesn’t need to feature cutting edge technology or any kind of real performance benefits. We couldn’t disagree more. One look at our Flightline 20”, with its increased standover height and all new FL3G frame design lets you know that it features a ton of the same technology as our flagship models costing up to four times as much. It might be the smallest mountain bike in the line, but it’s certainly not short on performance.

FEATURES

  • HL 410E fork- 30mm travel fork
  • Forged alloy w/ 40t chainring w/ guard, square taper BB
  • Shimano Tourney TZ-50 rear derailleur
  • Shimano Revo, 6 speed
  • Pivit alloy micro adjust seatpost
SPECIFICATIONS
Frame Components
Frame Flightline 20
Fork Haro 410-E, 30mm travel
Headset Steel threadless
Drivetrain
Cranks Forged alloy w/ 40t chainring and double guard
Bottom Bracket Square taper
Chain KMC Z33
Front Derailleur N/A
Rear Deralleur Shimano TZ-50
Derailleur Shifter Shimano Revo, 6 speed
Pedals Nylon ATB
Wheels
Tires H-5120, 20 x 1.95
Wheels/Rims DH-168 32h rims, Pivit steel hubs, stainless steel spokes
Freewheel/Cassette Shimano TZ-20, 6 speed freewheel, 14-28
Braking System
Brakes Alloy direct pull w/ linear spring
Brake Levers Promax BL-42G
Other Components
Grips Dual density
Handle Bar Pivit riser bar, 30mm rise, 580mm width
Stem Pivit alloy, 15 degree rise
Seat Haro Junior
Seat Post Pivit alloy micro adjust, 27.2 x 250mm
Seat Clamp Pivit alloy 31.8 quick release
GEOMETRY
Size Head Angle Seat Angle Top Tube (Effective) Seat Tube (C-T) Chainstay Length BB Drop Wheel Base Stand Over Stack Height Reach Fork Height Fork Offset Stem Length Bar Width Crank Length

RESOURCES

Owner's manual: Bike Manual PDF (Opens in a new window)

*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
