Shredder 16
| Year | 2023 |
|---|---|
| MSRP | $289.99 * |
| Sizes | |
| Colors | Black, Metallic Red, Bad Apple Green |
| Weight |

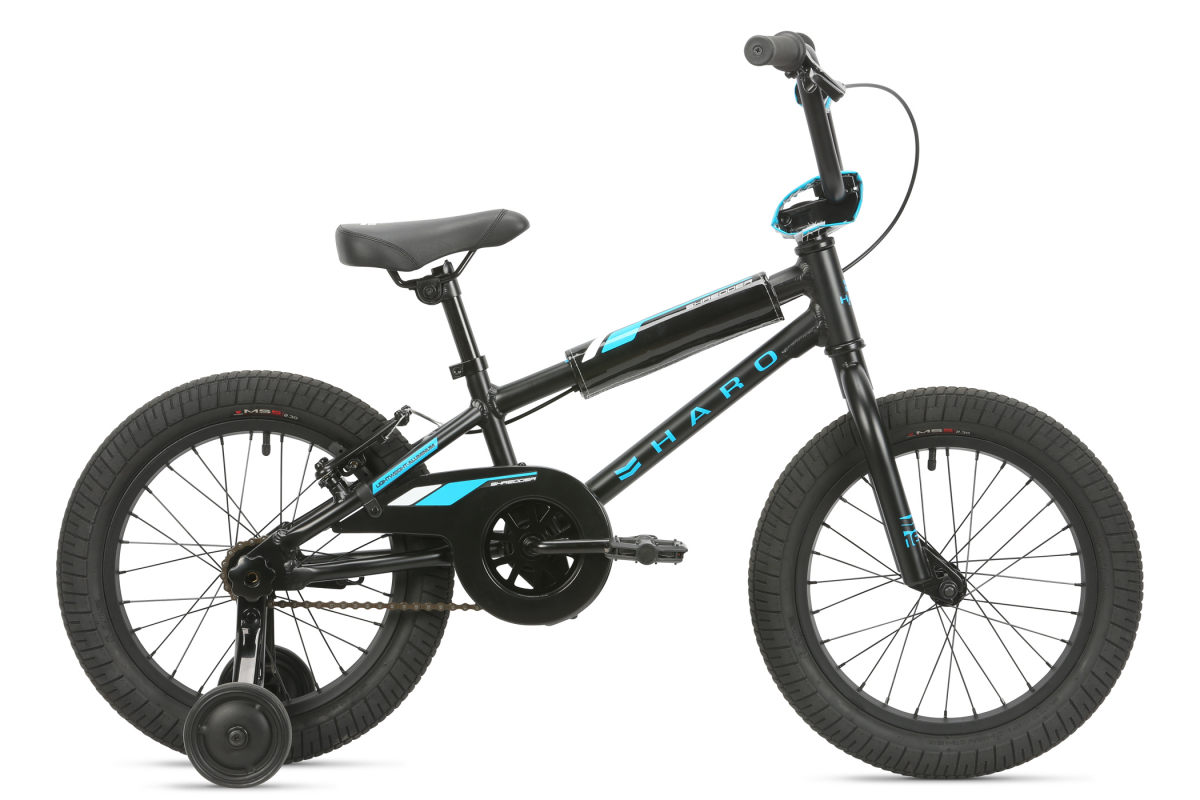

The Shredder 16 is designed around a low profile alloy frame which is both light weight and durable. Rider friendly geometry coupled with quality features.
FEATURES
- 6061 alloy Shredder lo-profile frame
- 1-1/8 threadless headset
- 28-spoke wheels with 16" alloy rims
- Sure stop coaster brake and linear pull v-brake with adjustable lever
- Padded Jr. seat and Jr. plastic pedals
- Heavy duty training wheels and full pad set
- Also available in a step thru model for girls
| Frame Components | |
|---|---|
| Frame | Haro Low Profile Heat Treated 6061-T6 Series Alloy Frame |
| Fork | Steel 1-1/8" Threadless Steerer |
| Headset | 1-1/8" Threadless |
| Drivetrain | |
| Cranks | Steel 1-pc - 114mm |
| Sprocket | 32t Steel Chainring |
| Bottom Bracket | American |
| Chain | HARO BASELINE Standard Link Chain |
| Pedals | Mini Poly Platform, 1/2" |
| Wheels | |
| Tires | Haro MS5 16 x 2.35" |
| Wheels/Rims | 16" Alloy 28h, Single Wall |
| Front Hub | 28h Steel |
| Rear Hub | Coater Brake Rear |
| Freewheel/Cassette | 16t |
| Spokes | 14 g |
| Braking System | |
| Brakes | "Promax Alloy V-Brake & Coaster Foot Brake " |
| Brake Levers | promax 2 finger child friendly size lever |
| Other Components | |
| Grips | Haro Mini Grip |
| Handle Bar | Steel, 6.5" Rise |
| Stem | Haro Baseline Forged Alloy Top-Load, 38mm Ext. |
| Seat | Mini Haro Adjustable |
| Seat Post | Steel, 22.2mm |
| Seat Clamp | Alloy, 25.4mm |
| Extras | Training Wheels & Haro Padset & P type chainguard |
| Size | Head Angle | Seat Angle | Top Tube | Seat Tube | Chainstay | BB Height | Stand Over |
|---|---|---|---|---|---|---|---|
| 16 | 72° | 70° | 368mm (14.48") | 187.5mm (7.38") | 267mm (10.5") | 240mm (9.45") | 378mm (14.9") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
