Shredder 14
| Year | 2023 |
|---|---|
| MSRP | $289.00 * |
| Sizes | 14" |
| Colors | Black, Metallic Red |
| Weight |

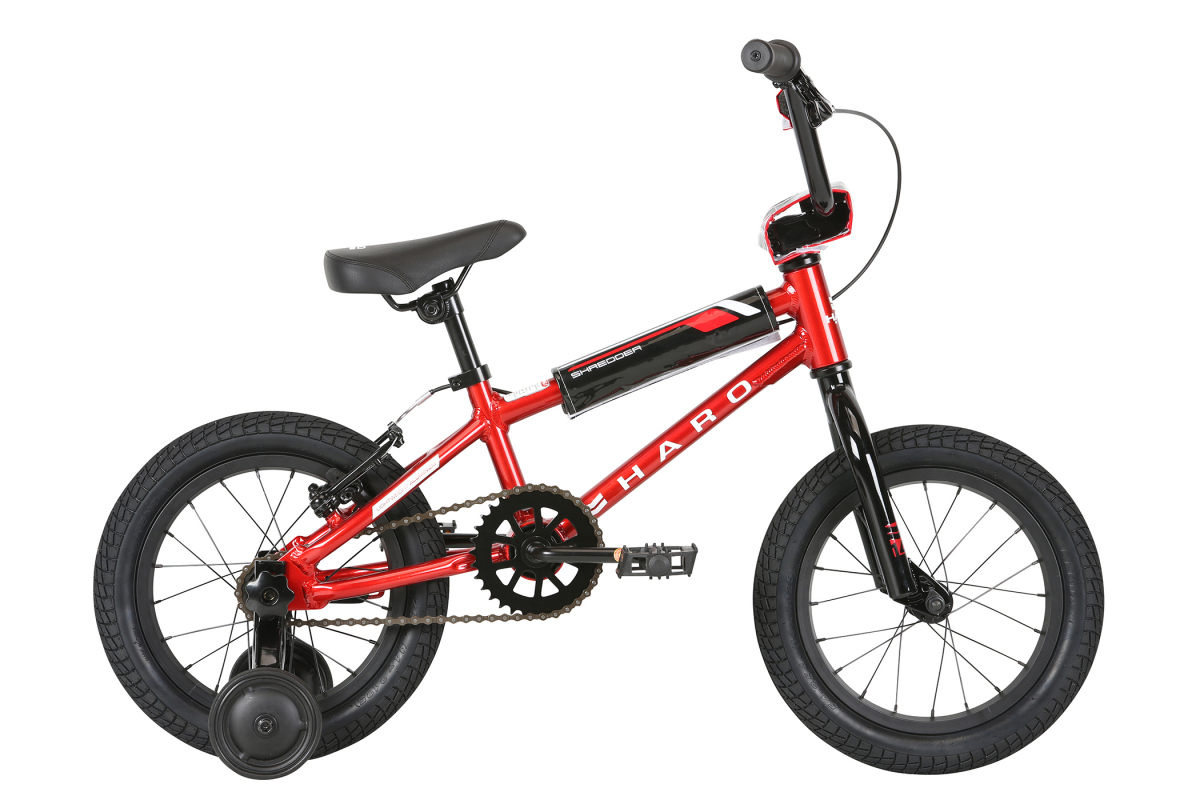

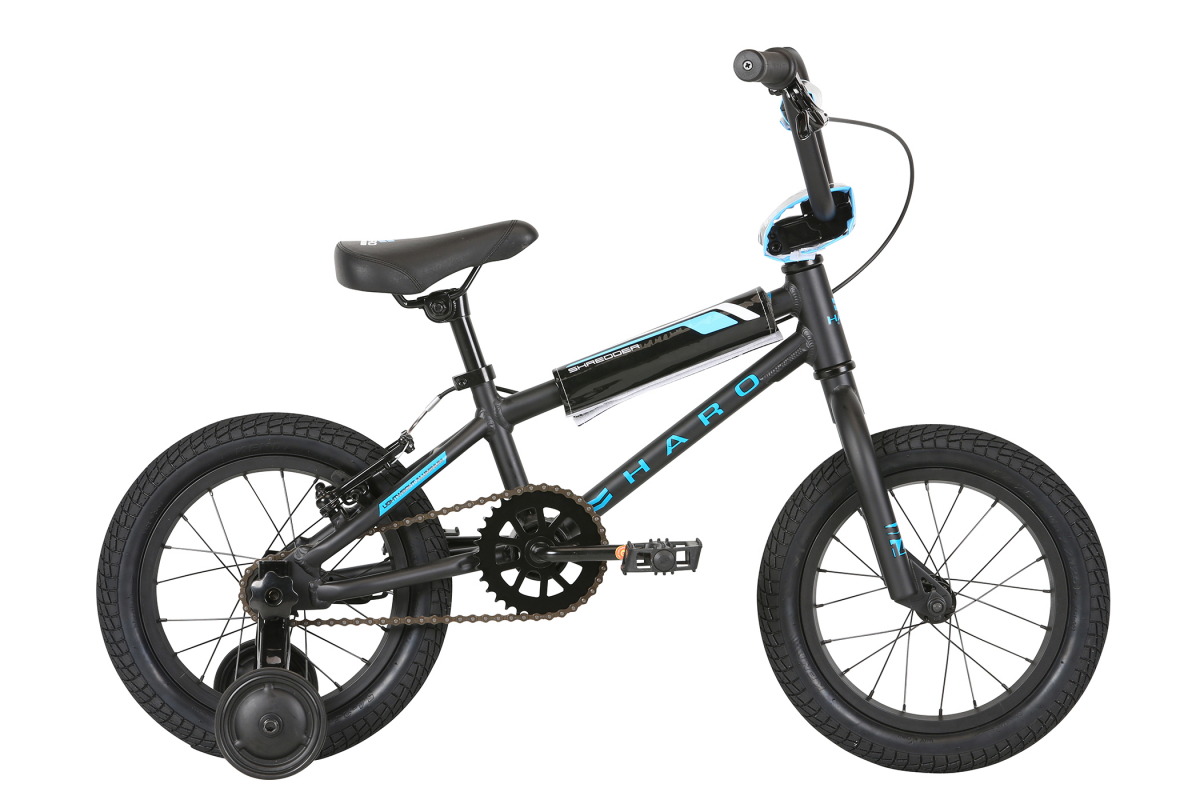

The Shredder 14 is designed around a low profile alloy frame which is both light weight and durable. Rider friendly geometry coupled with quality features
FEATURES
- 6061 alloy Shredder lo-profile frame
- 1-1/8 threadless headset
- 28-spoke wheels with 14" alloy rims
- Sure stop coaster brake and linear pull v-brake with adjustable lever
- Padded Jr. seat and Jr. plastic pedals
- Heavy duty training wheels and full pad set
- Also available in a step thru model for girls
| Frame Components | |
|---|---|
| Frame | Low Profile 6061 Series Alloy Frame, 15.5" Standover Height |
| Fork | Hi-Ten 1 1/8" Threadless |
| Headset | Threadless Loose Ball, 1 1/8" |
| Drivetrain | |
| Cranks | Steel 1-pc, 114mm |
| Sprocket | 36T Steel |
| Bottom Bracket | Loose Ball American BB |
| Gearing | 36/16 |
| Chain | Haro Baseline Standard Link Chain |
| Pedals | Nylon, 1/2" |
| Wheels | |
| Tires | Haro MS5 14 x 2.3" |
| Wheels/Rims | 14" Alloy 28h, Single Wall |
| Front Hub | Steel Shell 28h, Loose Ball |
| Rear Hub | Steel Shell Coaster Brake, 28h, Loose Ball |
| Axle | 3/8" |
| Freewheel/Cassette | 16t |
| Spokes | 14 g |
| Braking System | |
| Brakes | Promax Alloy V-Brake & Coaster Foot Brake |
| Brake Levers | Promax XL-378 Alloy Lever |
| Other Components | |
| Grips | Haro Jr. Krayton |
| Handle Bar | Hi-Ten, 6.5" Rise |
| Stem | Forged Alloy Top-Load, 38mm Ext. |
| Seat | Jr. Haro Padded Adjustable |
| Seat Post | Steel, 22.2mm |
| Seat Clamp | Alloy, 25.4mm |
| Extras | Training Wheels & Haro Padset & P type chainguard |
| Size | Head Angle | Seat Angle | Top Tube | Seat Tube | Chainstay | BB Height | Stand Over |
|---|---|---|---|---|---|---|---|
| 14 | 72° | 70° | 368mm (14.48") | 187.5mm (7.38") | 267mm (10.5") | 240mm (9.45") | 378mm (14.9") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
