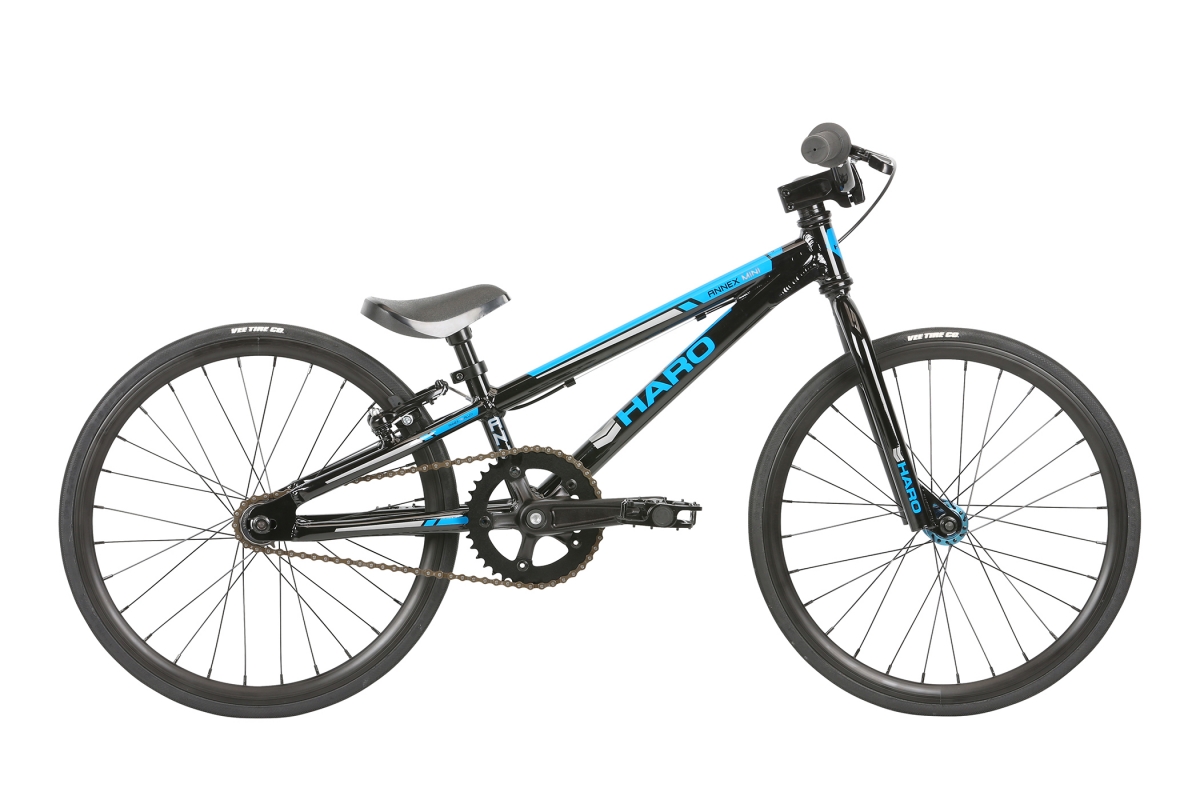

Annex Micro Mini
| Year | 2019 |
|---|---|
| MSRP | $409.99 * |
| Sizes | 16.75" |
| Colors | Gloss Black, Race Red |
| Weight | 15 lbs |
FEATURES
- 6061 series alloy frame
- 100% chromoly fork
- Alloy bars and alloy front load stem
- 3-piece alloy race cranks
- Vee Rubber Speedster tires
- Velo Unibody with built in alloy post
- Promax V-Brake and lever
| Frame Components | |
|---|---|
| Frame | 6061 Series Alloy with 16.75" TT |
| Fork | Full Crmo 1" Threadless |
| Drivetrain | |
| Cranks | 3pc Alloy race 130mm |
| Bottom Bracket | Sealed Bearing Euro BB |
| Gearing | 38/14 |
| Pedals | Mini DX Alloy |
| Wheels | |
| Tires | Vee Rubber "Speedster" 18x1" |
| Wheels/Rims | 28h Alloy double wall |
| Hubs | 3/8" axle: 28h Alloy Shell loose ball Rear: flip-flop |
| Braking System | |
| Brakes | Tektro 926 Alloy mini V-brake |
| Brake Levers | Tektro 317 Alloy Lever |
| Other Components | |
| Grips | Velo Mini Knurled Grips |
| Handle Bar | Mini Alloy Bar |
| Stem | Haro Mini Alloy front load stem 45mm ext |
| Seat | Velo Unibody |
| Seat Post | Alloy |
| Pegs | N/A |
| Size | Head Angle | Seat Angle | Top Tube | Seat Tube | Chainstay | BB Height | Stand Over |
|---|---|---|---|---|---|---|---|
| 16.75 | 72° | 71.47° | 425.4mm (16.75") | 180mm (7.1") | 300mm (11.8") | 222.2mm (8.75") | 393.7mm (15.5") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
