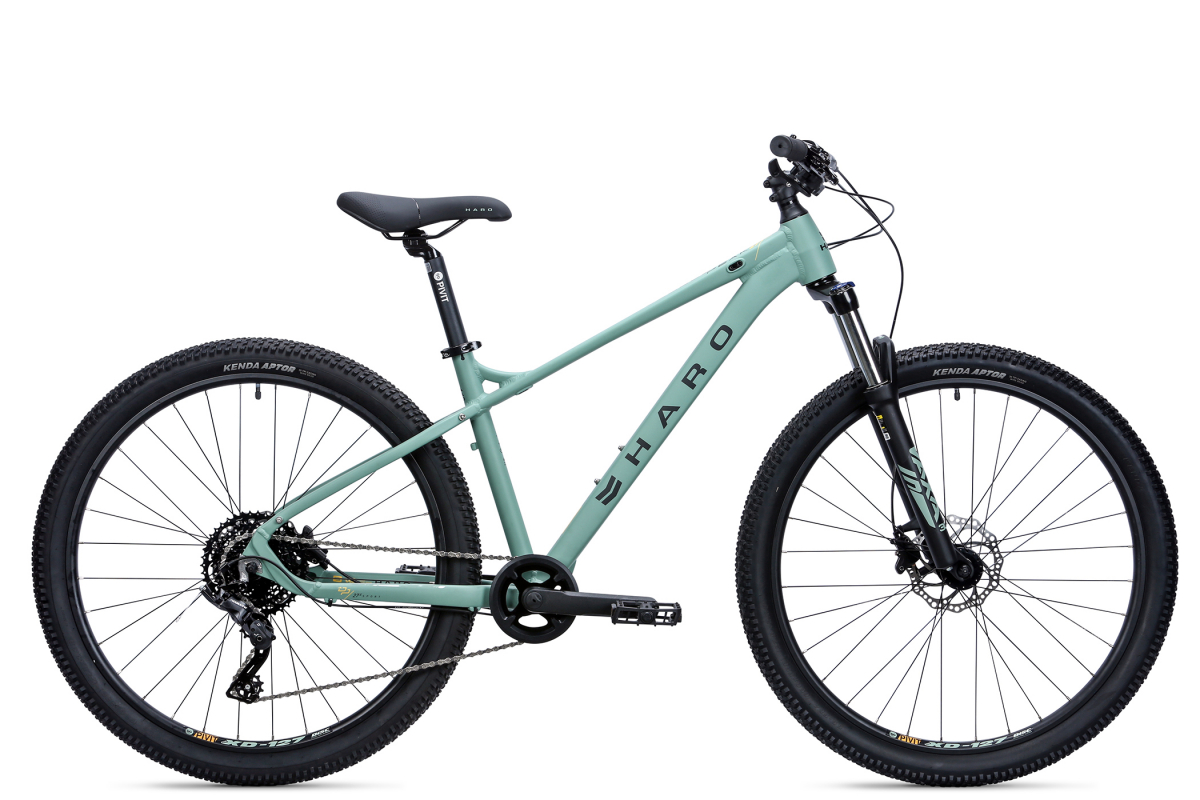

Double Peak 27.5 Sport MicroSHIFT
| Year | 2022 |
|---|---|
| MSRP | $699.99 * |
| Sizes | XS, S, M, L |
| Colors | Matte Sage |
| Weight |
Available on a first come / first serve basis, this unique Double Peak Sport 27.5" model comes only in a sage colorway with a new MicroSHIFT 1x8 Acolyte group as an updated version to our 2021 model. Offered as a user-friendly 1x8 model with single Narrow-Wide 30T chainring and a rear derailleur with clutch to prevent chain-drops, this new Double Peak Sport model features the look of a high-end MTB and performance to match at an affordable price.
FEATURES
- Double Peak X6 Series aluminum frame w/ tapered head tube
- HL VAXA 30S / 595 HLO 100mm travel fork
- Aluminum crankset, 30T, 1x8-speed
- MicroSHIFT Acolyte rear derailleur w/ SpringLock clutch
- MicroSHIFT Acolyte Xpress shifter, 8-speed
- MicroSHIFT Acolyte 12-42T, 8-Speed cassette
- Joytech alloy 6-Bolt Disc hubs, 32h
- MX-21 27.5"x27mm aluminum DW rims
- Radius DS-100H Hydraulic disc brakeset
- Kenda Aptor 27.5x2.35" tires
- Stainless BED spokes
| Frame Components | |
|---|---|
| Frame | Haro Double Peak 27.5" X6 Aluminum series | Tapered head tube | Internal housing routing | Chainstay disc brake mount | 73mm threaded BSA |
| Fork | HL Vaxa 30 Fork | 27.5" 100mm Travel | hydraulic lockout |
| Headset | 1-1/8"-1.5" Tapered Threadless for 50/62mm OD headtube | 10mm Aluminum top cover |
| Drivetrain | |
| Cranks | Forged Aluminum | 30T Narrow-Wide chainring | 1x8-speed compatible w/ outer chainguard |
| Bottom Bracket | Sealed cartridge |
| Chain | KMC X8 1x8-speed |
| Front Derailleur | N/A |
| Rear Deralleur | MicroSHIFT Acolyte RD-M5185M | 1 x 8-speed w/ SpringLock clutch |
| Derailleur Shifter | MicroSHIFT Acolyte SL-M7180-R | Xpress shifter 8-spd | Right side only |
| Pedals | FPD Nylon body | Chromoly axles | Platform |
| Wheels | |
| Tires | Kenda Aptor | 27.5x2.35" |
| Wheels/Rims | MX-21 27.5"x27mm Aluminum double wall |
| Hubs | Joytech alloy 6-Bolt Disc hubs | Cassette body | 32h |
| Freewheel/Cassette | MicroSHIFT Acolyte CS-H083 12-42T | 8-Speed |
| Spokes | Stainless BED |
| Braking System | |
| Brakes | Radius DS-100H hydraulic | 160mm 6-bolt rotors |
| Brake Levers | Radius DS-100H hydraulic |
| Other Components | |
| Grips | Haro MTB Kraton |
| Handle Bar | Pivit aluminum 25mm riser bar | 31.8mm |
| Stem | Pivit forged stem | 31.8mm |
| Seat | New Haro Double Peak |
| Seat Post | Pivit Aluminum micro-adjust | 31.6x350/400mm |
| Seat Clamp | Pivit Aluminum 34.9mm | Quick release |
| Extras | Internal housing routing |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 68° | 73° | 549mm (21.6") | 356mm (14") | 435mm (17.1") | 45mm (1.8") | 1067mm (42") | 713mm (28.1") | 586mm (23.1") | 370mm (14.6") | 498mm (") | 42mm (1.7") | 60mm | 700mm | 170mm |
| S | 68° | 73° | 584mm (23") | 406mm (16") | 435mm (17.1") | 45mm (1.8") | 1102mm (43.4") | 713mm (28.1") | 586mm (23.1") | 405mm (15.9") | 498mm (") | 42mm (1.7") | 60mm | 700mm | 170mm |
| M | 68° | 73° | 612mm (24.1") | 457mm (18") | 435mm (17.1") | 45mm (1.8") | 1130mm (44.5") | 727mm (28.6") | 595mm (23.4") | 430mm (16.9") | 498mm (") | 42mm (1.7") | 60mm | 700mm | 175mm |
| L | 68° | 73° | 625mm (24.6") | 508mm (20") | 435mm (17.1") | 45mm (1.8") | 1144mm (45") | 759mm (29.9") | 607mm (23.9") | 440mm (17.3") | 498mm (") | 42mm (1.7") | 60mm | 700mm | 175mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
