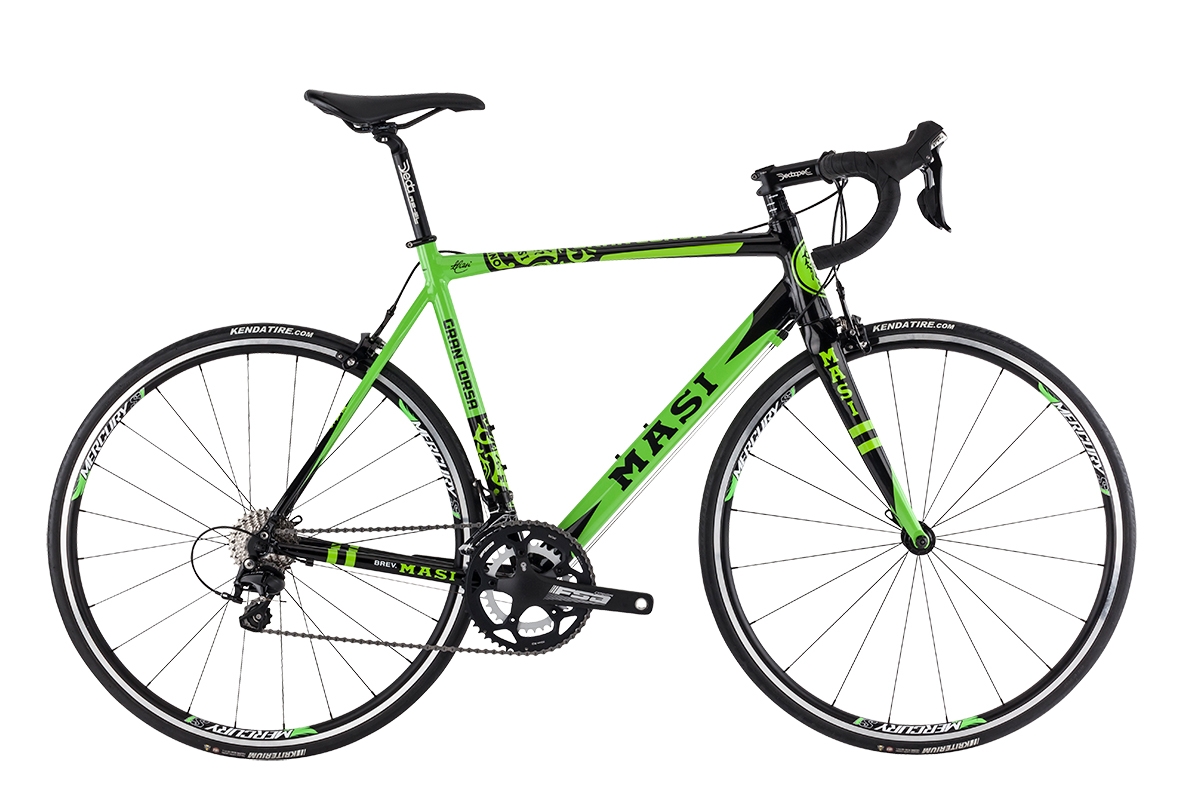

Gran Corsa

  • Year: 2015
  • MSRP: $1,359.99 *
  • Sizes: 50cm, 53cm, 56cm, 59cm, 62cm
  • Colors: Team Green
  • Weight:
  • NO LONGER AVAILABLE

FEATURES

  • Masi custom MA6 ultra-light double-butted alloy frame with integrated tapered headtube and race geometry
  • Masi Elite/RS carbon fork with tapered alloy steerer
  • FSA Omega crankset 52/36 with Press-fit 30 BB
  • Shimano 105 11 speed shifters, front and rear derailleurs
  • Shimano 5800 11-28t 11 speed cassette
  • Deda EL alloy handlebar and stem
  • Masi SLS saddle
  • Deda EL alloy seatpost
  • Mercury S1 alloy 20/24h rims
  • Kenda Kountach 25c tires
  • Tektro R340 dual pivot brakeset with cartridge pads
SPECIFICATIONS
Frame Components
Frame Masi MA6 double-butted alloy w/ internal rear brake routing and integrated tapered headtube
Fork Masi Elite / RS carbon integrated w/ 7075 alloy tapered steerer
Headset FSA 42B Taper headset
Drivetrain
Cranks FSA Omega PF30, 52/36
Bottom Bracket FSA Press Fit 30
Chain Shimano HG-600
Front Derailleur Shimano 105
Rear Deralleur Shimano 105
Derailleur Shifter Shimano 105
Pedals N/A
Wheels
Tires Kenda Kountach 25c wire bead
Wheels/Rims Mercury S1 20/24h rims, alloy cassette hubs, stainless spokes
Freewheel/Cassette Shimano CS-5800, 11 speed, 11-28t
Braking System
Brakes Tektro R340 w/ cartridge pads
Brake Levers Shimano 105
Other Components
Grips Masi cork tape
Handle Bar Deda RHM EL, 31.8mm
Stem Deda EL 84/6D
Seat Masi SLS
Seat Post Deda EL, 31.6 x 350mm
Seat Clamp Alloy SL
GEOMETRY
Size Head Angle Seat Angle Top Tube (Effective) Seat Tube (C-T) Chainstay Length BB Drop Wheel Base Stand Over Stack Height Reach Fork Height Fork Offset Stem Length Bar Width Crank Length
47 72° 74° 520mm (20.5") 470mm (18.5") 410mm (16.1") 68mm (2.7") 965mm (38") 712mm (28") 45mm (1.8")
50 72.5° 74° 530mm (20.9") 500mm (19.7") 410mm (16.1") 68mm (2.7") 975mm (38.4") 744mm (29.3") 45mm (1.8")
53 73° 74° 545mm (21.5") 530mm (20.9") 410mm (16.1") 68mm (2.7") 986mm (38.8") 764mm (30.1") 45mm (1.8")
56 73.5° 73.5° 565mm (22.2") 560mm (22") 410mm (16.1") 68mm (2.7") 996mm (39.2") 797mm (31.4") 45mm (1.8")
59 73° 73.5° 585mm (23") 590mm (23.2") 410mm (16.1") 68mm (2.7") 1021mm (40.2") 817mm (32.2") 45mm (1.8")
62 73° 73.5° 595mm (23.4") 620mm (24.4") 410mm (16.1") 68mm (2.7") 1031mm (40.6") 842mm (33.1") 45mm (1.8")

RESOURCES

Owner's manual: Bike Manual PDF (Opens in a new window)

*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
