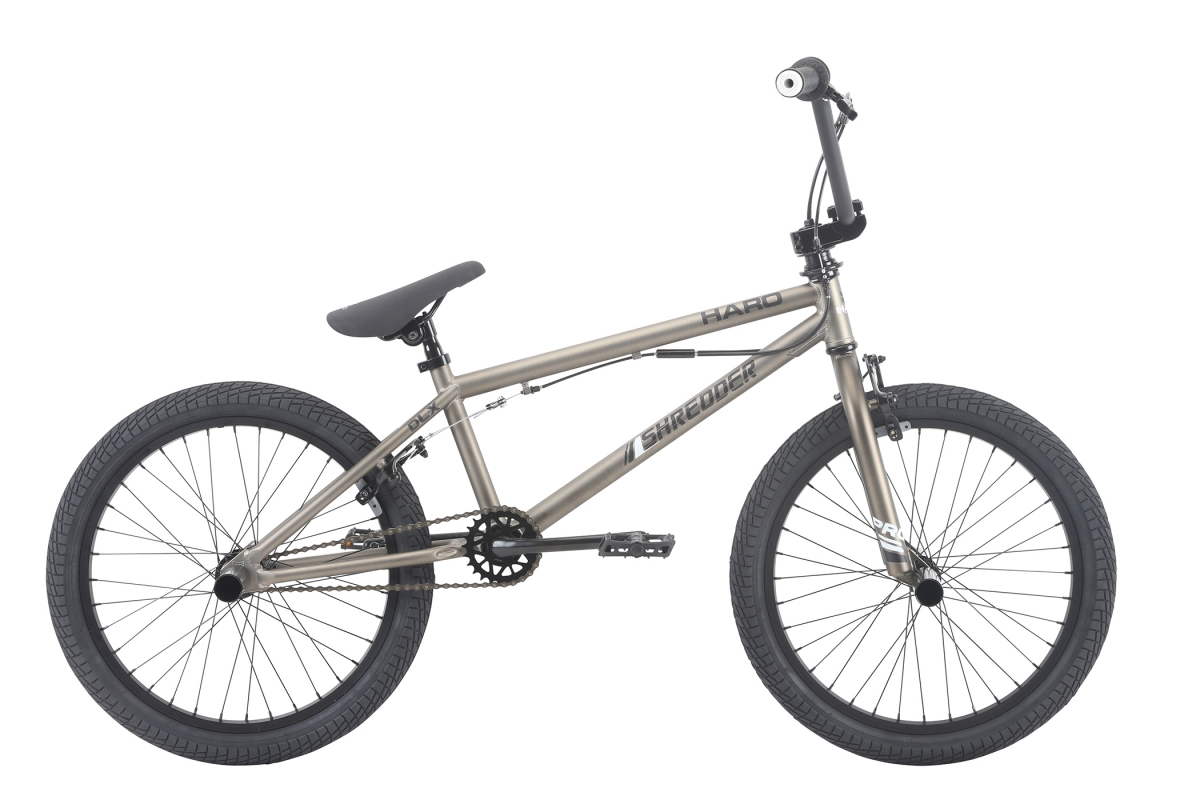

Based from all the same spec and features as the Shredder Pro 20, the DLX kicks it up a few notches by adding four pegs, front brakes and a gyro making this platform more adaptable to a wider range of riding disciplines.
FEATURES
- Hi-ten frame with 20.3" top tube
- 1 1/8" hi-ten threadless fork
- 7.5" hi-ten bars with Haro alloy top load stem
- 25/9 gearing with sealed bearing 9T driver
- Haro padded fully adjustable seat
- Kenda Kontact tires 20 x 2.25" front and rear
- Alloy 990 brake
- Four pegs, front brakes and a gyro
| Frame Components | |
|---|---|
| Frame | Hi-ten |
| Fork | Hi-ten 1 1/8" threadless |
| Headset | 1 1/8" threadless |
| Drivetrain | |
| Cranks | 1-pc 175mm |
| Bottom Bracket | USA loose ball |
| Gearing | 25/9 |
| Chain | KMC 410 |
| Pedals | Wellgo plastic 1/2" |
| Wheels | |
| Tires | Kenda Kontact 20x2.25 F/R |
| Wheels/Rims | 36h alloy |
| Hubs | 3/8" straight axles, 36h alloy shell loose ball cassette w/ 9t sealed driver |
| Braking System | |
| Brakes | Alloy 990 F/R |
| Brake Levers | Alloy lever R/L |
| Other Components | |
| Grips | Haro stripe |
| Handle Bar | Hi-ten 7.5" rise |
| Stem | Haro alloy top load |
| Seat | Haro padded |
| Seat Post | Steel 25.4mm |
| Seat Clamp | Alloy pinch bolt |
| Extras | Gyro |
| Pegs | 4 steel pegs |
| Size | Head Angle | Seat Angle | Top Tube | Seat Tube | Chainstay | BB Height | Stand Over |
|---|---|---|---|---|---|---|---|
| 20.3 | 74.5° | 70° | 516mm (20.3") | 260mm (10.2") | 349mm (13.7") | 293mm (11.5") | 546mm (21.5") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
