Lxi 6.1
| Year | 2015 |
|---|---|
| MSRP | $419.99 * |
| Sizes | 17", 14", 20" |
| Colors | Gloss Charcoal, Shiny Ruby, Butter Popcorn |
| Weight |

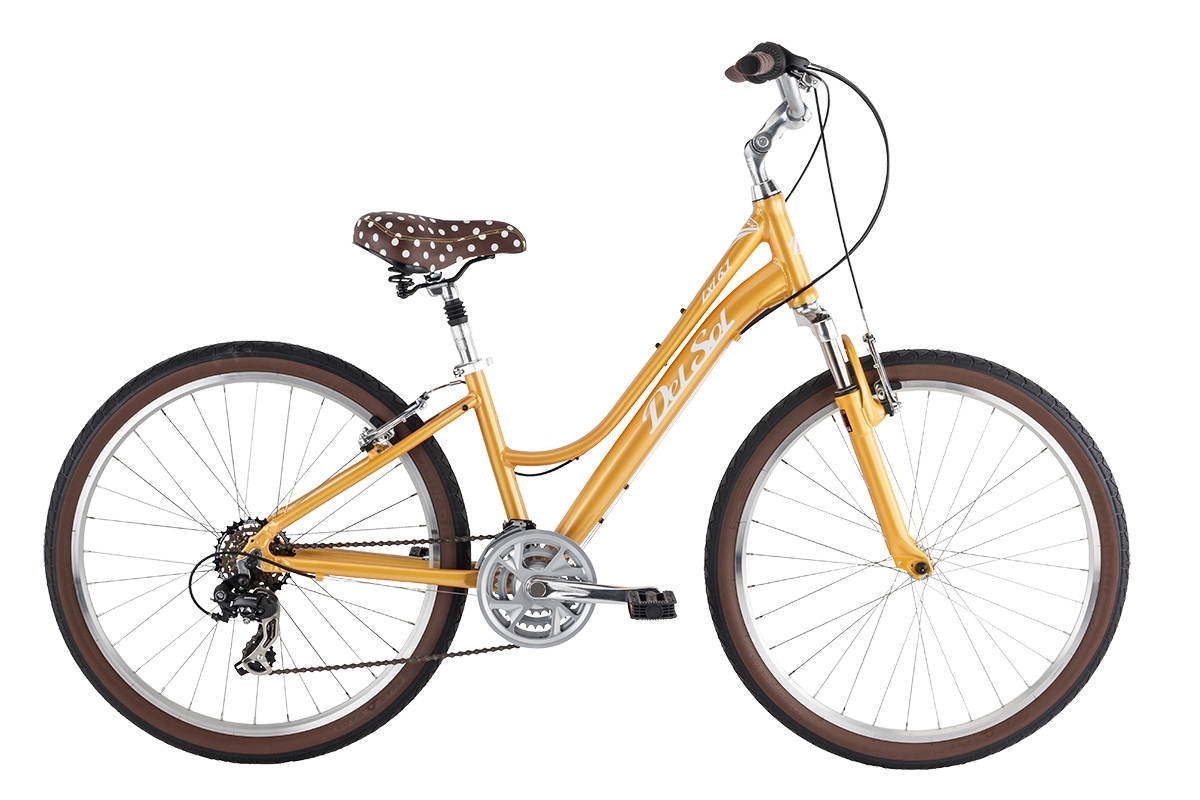

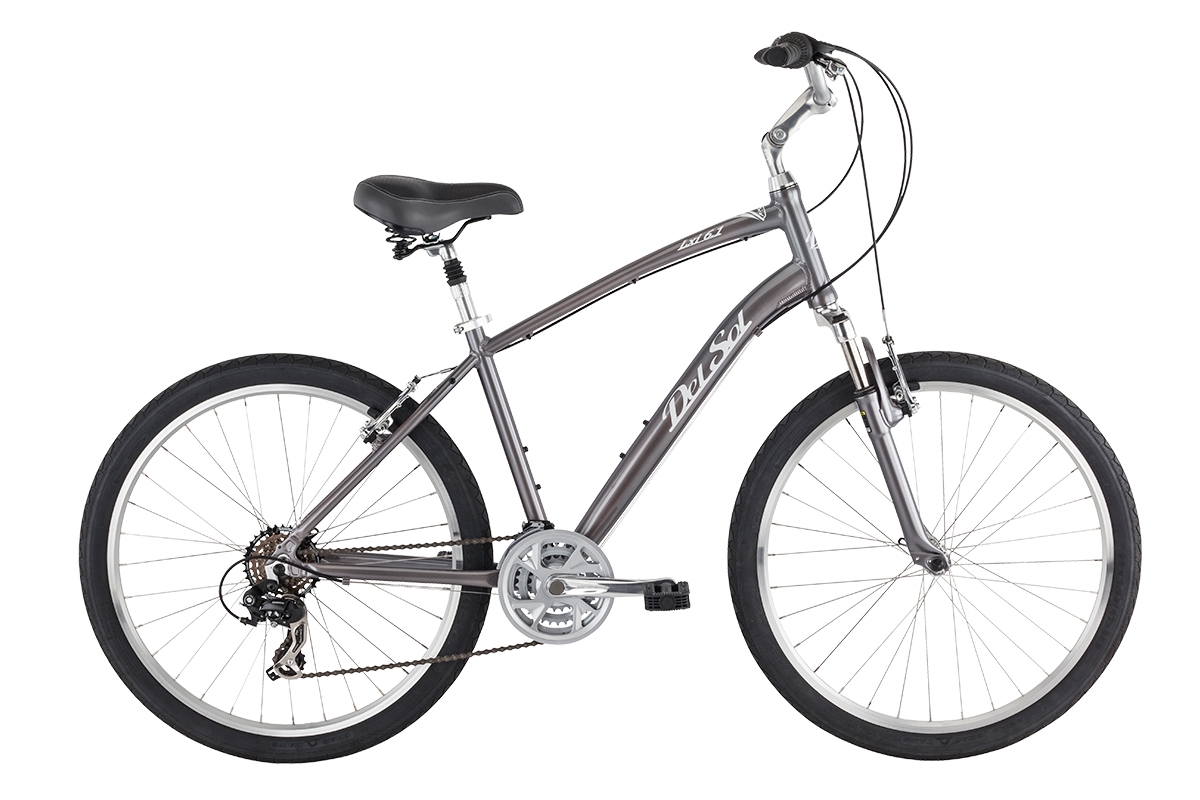

Boasting the same luxurious feel and quality of the 7.2, the 6.1 offers a smaller profile 26-inch wheel paired with a wider tire for those seeking a little extra stand over height and a little more rubber on the ground.
FEATURES
- Del Sol Lightweight 6061 aluminum exclusive upright comfort frame
- Ultra-compliant 50mm travel suspension fork
- Shimano 21 speed Tourney deraileurs with Revo twist shifters
- Custom Del Sol comfort plush saddle with suspension seat post
- Adjustable angle stem and lightweight alloy handlebar
- Lightweight 32h alloy wheelset with quick release
- Smooth rolling 26-inch all-purpose tires on double-wall alloy rims
| Frame Components | |
|---|---|
| Frame | Lxi 26" Step-Thru Comfort 6061 T6 oversized aluminum frame |
| Fork | Del Sol 420-E, 50mm travel |
| Headset | 1 1/8" Threaded |
| Drivetrain | |
| Cranks | SR Suntour XCC 172, 42/32/22 |
| Bottom Bracket | Sealed cartridge |
| Chain | KMC Z51 |
| Front Derailleur | Shimano TX-50 |
| Rear Deralleur | Shimano TX-35 |
| Derailleur Shifter | Shimano Revo, 7 speed |
| Pedals | Comfort w/Kraton rubber inserts |
| Wheels | |
| Tires | H-460, 26 x 1.95" |
| Wheels/Rims | DH-18 32h rims, alloy cassette hubs, stainless steel spokes |
| Freewheel/Cassette | Shimano HG-20, 7 speed cassette, 12-32 |
| Braking System | |
| Brakes | Alloy direct pull w/ linear spring |
| Brake Levers | Tektro CL-530 |
| Other Components | |
| Grips | Comfort Dual density |
| Handle Bar | Steel riser bar, 80mm rise, 680mm width, 25.4mm clamp |
| Stem | Forged alloy quill, adjustable rise |
| Seat | Del Sol Comfort |
| Seat Post | Alloy suspension, 27.2 x 300mm |
| Seat Clamp | Alloy 31.8mm quick release |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 ST | 70.5° | 72.5° | 561mm (22.1") | 356mm (14") | 437mm (17.2") | 1019mm (40.1") | 648mm (25.5") | ||||||||
| 17 ST | 70.5° | 72.5° | 579mm (22.8") | 432mm (17") | 437mm (17.2") | 1044mm (41.1") | 658mm (25.9") | ||||||||
| 14 | 70.5° | 72.5° | 523mm (20.6") | 356mm (14") | 437mm (17.2") | 1019mm (40.1") | 681mm (26.8") | ||||||||
| 17 | 70.5° | 72.5° | 536mm (21.1") | 432mm (17") | 437mm (17.2") | 1044mm (41.1") | 737mm (29") | ||||||||
| 20 | 70.5° | 72.5° | 559mm (22") | 508mm (20") | 437mm (17.2") | 1069mm (42.1") | 762mm (30") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
