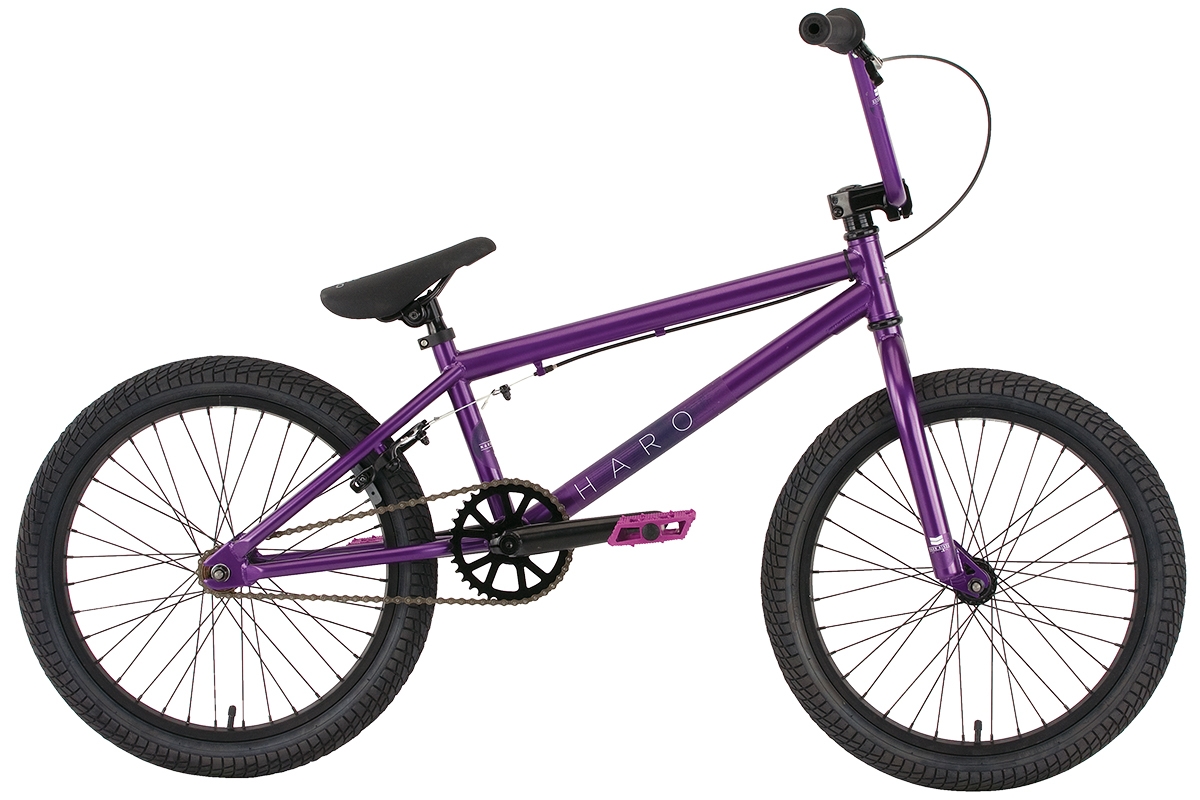

100.1
| Year | 2013 |
|---|---|
| MSRP | $289.99 * |
| Sizes | 20.3", 18.5" |
| Colors | Matte Black, SG Metallic Purple, Gloss White |
| Weight | 26 lbs |
FEATURES
- Full hi-ten frame with 18.5" or 20.3" top tube
- Hi-ten 8.25" bars with Haro alloy stem
- 2.25" Kenda Kontact tires front and rear
- 3-piece crmo 8-spline 165mm or 175mm cranks with loose ball USA BB
- Haro padded, fully adjustable seat
- Alloy 990 brakes
| Frame Components | |
|---|---|
| Frame | Full Hi-Ten frame - 18.5 or 20.3" TT |
| Fork | 1 1/8" Hi-Ten threadless |
| Drivetrain | |
| Cranks | 3 pc. tubular Crmo 165 / 175mm w/loose ball USA BB |
| Gearing | 36/14 freewheel |
| Pedals | Haro Small Block Resin 9/16" |
| Wheels | |
| Tires | Kenda Kontact 20x2.25 F / R |
| Wheels/Rims | 36H Alloy single wall |
| Hubs | 36H steel shell w/ 3/8" axles |
| Braking System | |
| Rotor | Straight Cable |
| Other Components | |
| Grips | Counterfeit Grips |
| Handle Bar | Hi-Ten 8.25" rise |
| Seat | Haro padded adjustable seat w/ rails and steel post |
| Pegs | N/A |
| Size | Head Angle | Seat Angle | Top Tube | Seat Tube | Chainstay | BB Height | Stand Over |
|---|
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
