124
| Year | 2012 |
|---|---|
| MSRP | $370.00 * |
| Sizes | 21.7" |
| Colors | SG Black |
| Weight | 27.25 lbs |
FEATURES
- Full hi-ten 24" frame with 21.7" TT
- 3 pc chromoly cranks (175mm) with sealed Mid BB
- Hi-ten- 7" rise bars w/ alloy front load stem

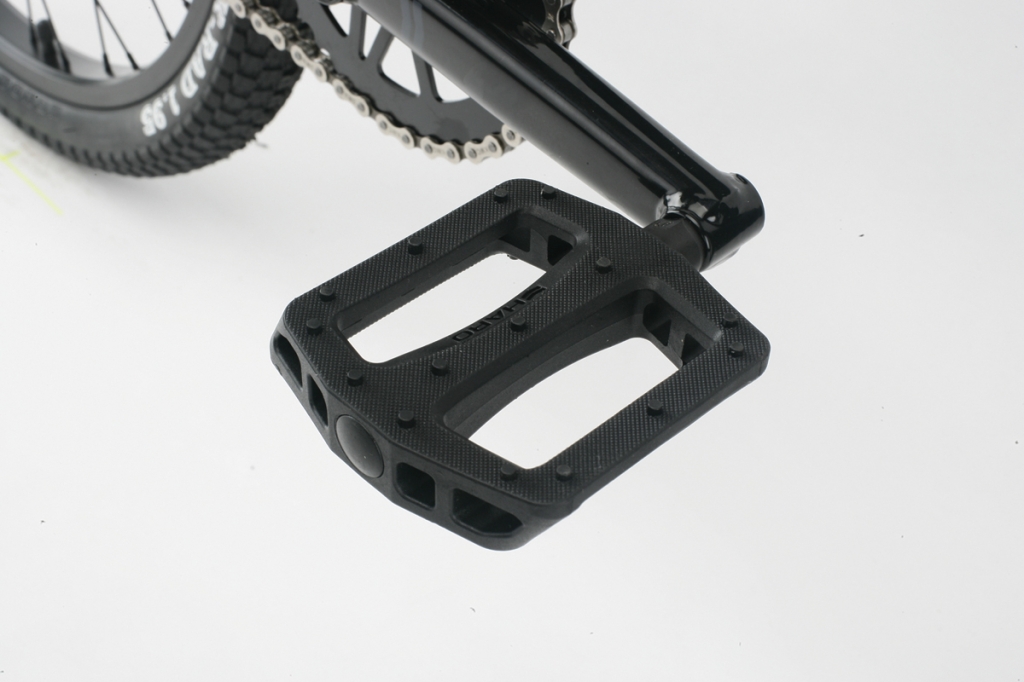

- Haro "Recycled" plastic pedals
- Slim padded one-piece seat w/ built-in post
- Kenda K-Rad tires 24"x1.95" front/rear
- Alloy 990 U-brake (rear only)
| Frame Components | |
|---|---|
| Frame | Hi-Ten 24 inch frame with MID BB - 21.7" TT. |
| Fork | 1 1/8" Threadless w/crmo steer tube |
| Drivetrain | |
| Cranks | 3 pc. tubular Crmo 175mm w/sealed MID BB |
| Gearing | 39/16 freewheel. |
| Pedals | Haro "Recycled" plastic pedal |
| Wheels | |
| Tires | Kenda K-Rad 24x1.95 Front and Rear |
| Wheels/Rims | 36H Alloy single wall; 36H Alloy shell 3/8" Frt / 36H Alloy shell 14mm Rr |
| Hubs | 36H Alloy single wall |
| Braking System | |
| Rotor | Straight Cable |
| Other Components | |
| Grips | Counterfeit Grips |
| Handle Bar | Hi-Ten- 7" rise |
| Seat | Haro padded one piece seat w/ built in post |
| Pegs | N/A |
| Size | Head Angle | Seat Angle | Top Tube | Seat Tube | Chainstay | BB Height | Stand Over |
|---|
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
