116
| Year | 2012 |
|---|---|
| MSRP | $275.00 * |
| Sizes | 16.4" |
| Colors | SG Black, SG Red |
| Weight | 24 lbs |
FEATURES
- Full hi-ten 16" frame with 16.4" TT

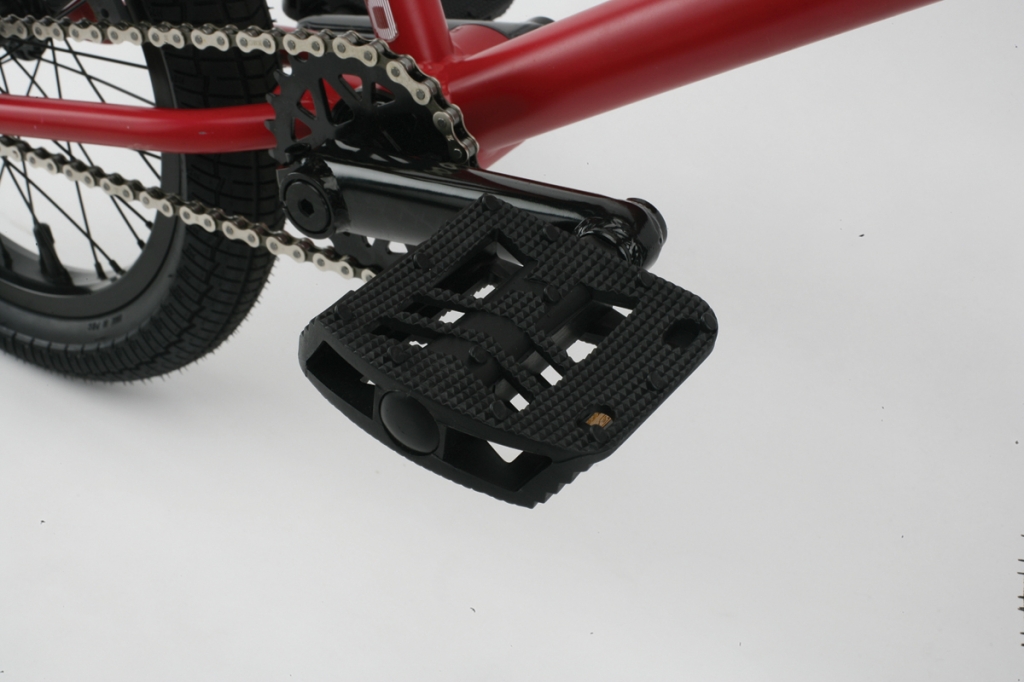

- Haro "Small Block" resin pedals
- Hi-Ten- 7" rise bars w/alloy front load stem
- Plastic one-piece seat w/ built-in post
- Haro 16" MS4 front and rear tires
- 3-pc tubular Crmo 140mm cranks w/loose ball USA BB
| Frame Components | |
|---|---|
| Frame | Hi-Ten 16 inch frame with wishbone chain stay - 16.4" TT |
| Fork | 1 1/8" Threadless w/crmo steer tube |
| Drivetrain | |
| Cranks | 3-pc tubular Crmo 140mm w/loose ball USA BB |
| Gearing | 25/13 freewheel |
| Pedals | Haro Small Block Resin 9/16" |
| Wheels | |
| Tires | Haro 16" MS4 16x2.0 Front and Rear |
| Wheels/Rims | 36H Alloy single wall; 36H steel Frt 3/8", 36h Alloy shell Rear 14mm |
| Hubs | 36H Alloy single wall |
| Braking System | |
| Rotor | Straight Cable |
| Other Components | |
| Grips | Haro Mini Stripe Grips |
| Handle Bar | Hi-Ten- 7" rise |
| Seat | Haro plastic one piece seat w/ built in post |
| Pegs | 1 pair |
| Size | Head Angle | Seat Angle | Top Tube | Seat Tube | Chainstay | BB Height | Stand Over |
|---|
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
