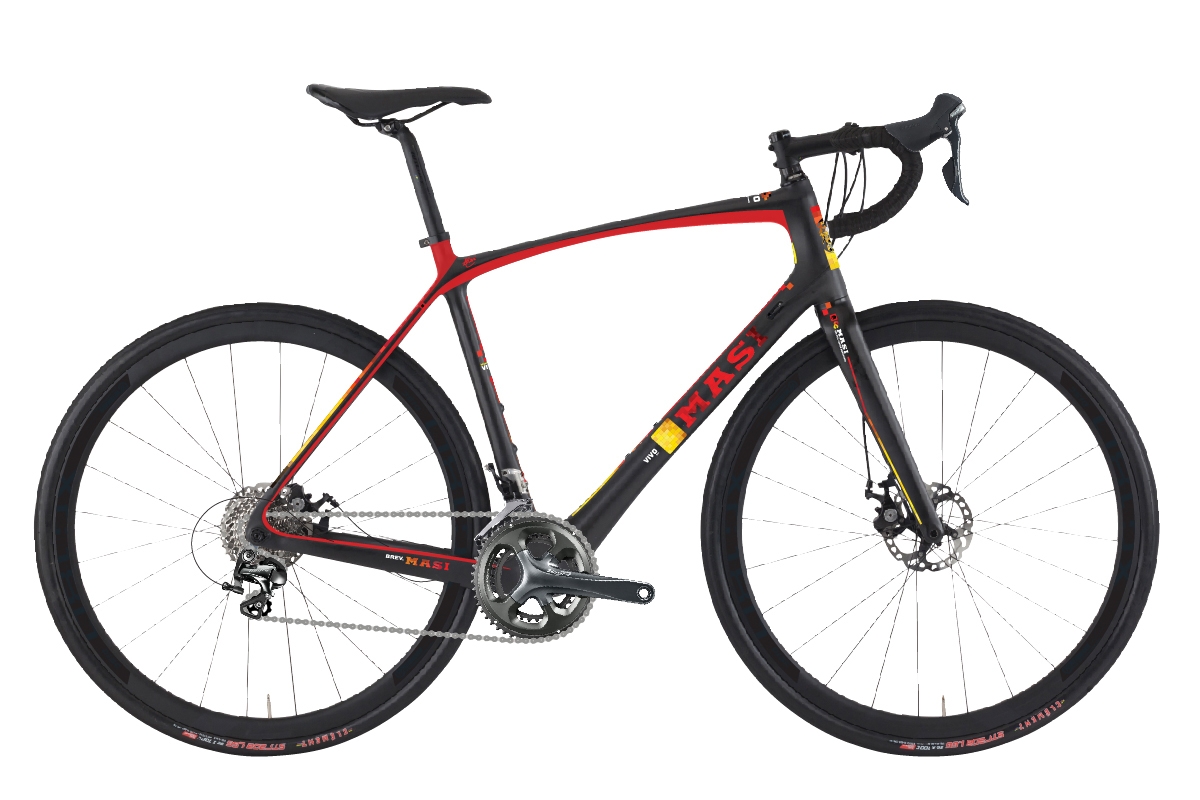

When the road goes up and your heart rate follows, the Vivo Due comes into its own. The Due utilizes the performance advantages of our MC9 comfort tuned carbon Fiber frame and fork, wide ratio gearing and the super stiff BB86 bottom bracket to become the perfect partner for the steepest climbs. Mechanical disc brakes and a Ritchey oversize cockpit enable super responsive control on the fastest descents to make the Due the obvious choice for the toughest challenge and the longest day.
FEATURES
- All-New Masi Comfort Tuned Carbon MC9 Carbon frame, BB86, full internal cable routing, tapered headtube, 12mm thru-axle
- Masi CTC MC9 tapered full carbon fork with 12mm thru-axle
- Shimano flat-mount disc brake mounts
- Shimano Tiagra 4700 50/34t crankset w/ BB86 press-fit BB
- Shimano Tiagra 4700 10 speed shifters, front and rear derailleurs
- Wide-ratio Tiagra 4700 12-30t cassette
- Custom Ritchey EvoCurve Comp oversized bar and 4-Axis stem
- Custom Ritchey 2-Bolt alloy seatpost
- Clement Strada LGG 28mm tires
- Tektro Spyre mechanical disc brake, 160mm F/140mm R rotors
| Frame Components | |
|---|---|
| Frame | Masi Comfort Tuned Carbon MC9 Carbon frame, BB86, full internal cable routing, tapered headtube, 12mm thru-axle |
| Fork | Masi CTC MC9 tapered full carbon fork with 12mm thru-axle |
| Headset | FSA Orbit No. 42 tapered |
| Drivetrain | |
| Cranks | Shimano Tiagra 50/34t |
| Bottom Bracket | Shimano BB86 press-fit |
| Chain | Custom KMC X10 |
| Front Derailleur | Shimano Tiagra 4700 |
| Rear Deralleur | Shimano Tiagra 4700 |
| Derailleur Shifter | Shimano Tiagra 4700 |
| Pedals | N/A |
| Wheels | |
| Tires | Clement Strada LGG 700 x 28c |
| Wheels/Rims | Weinmann 180 Disc 28h rims, 12mm Thru-Axle disc hubs |
| Freewheel/Cassette | Shimano Tiagra 4700 11-32 |
| Braking System | |
| Brakes | Tektro Spyre mechancial disc, 160F/140R rotors |
| Brake Levers | Shimano Tiagra 4700 |
| Other Components | |
| Grips | Masi embossed tape |
| Handle Bar | Custom Ritchey EvoCurve Comp |
| Stem | Custom Ritchey 4-Axis |
| Seat | Masi SLS |
| Seat Post | Custom Ritchey 2-Bolt |
| Seat Clamp | Alloy, 31.8mm |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 71° | 74° | 515mm (20.3") | 43mm (1.7") | 425mm (16.7") | 73mm (2.9") | 992mm (39.1") | 729mm (28.7") | 530mm (20.9") | 363mm (14.3") | 50mm (2") | ||||
| S | 72° | 74° | 530mm (20.9") | 46.5mm (1.8") | 425mm (16.7") | 73mm (2.9") | 993mm (39.1") | 758mm (29.8") | 554mm (21.8") | 371mm (14.6") | 45mm (1.8") | ||||
| M | 72.5° | 73° | 545mm (21.5") | 50mm (2") | 425mm (16.7") | 70mm (2.8") | 995mm (39.2") | 788mm (31") | 572mm (22.5") | 370mm (14.6") | 45mm (1.8") | ||||
| M/L | 72.5° | 73° | 560mm (22") | 53.5mm (2.1") | 425mm (16.7") | 68mm (2.7") | 1006mm (39.6") | 815mm (32.1") | 591mm (23.3") | 379mm (14.9") | 40mm (1.6") | ||||
| L | 72.5° | 72° | 580mm (22.8") | 55.5mm (2.2") | 425mm (16.7") | 68mm (2.7") | 1014mm (39.9") | 830mm (32.7") | 610mm (24") | 382mm (15") | 40mm (1.6") | ||||
| XL | 72.5° | 72° | 600mm (23.6") | 58.5mm (2.3") | 425mm (16.7") | 65mm (2.6") | 1035mm (40.7") | 853mm (33.6") | 626mm (24.6") | 397mm (15.6") | 40mm (1.6") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
