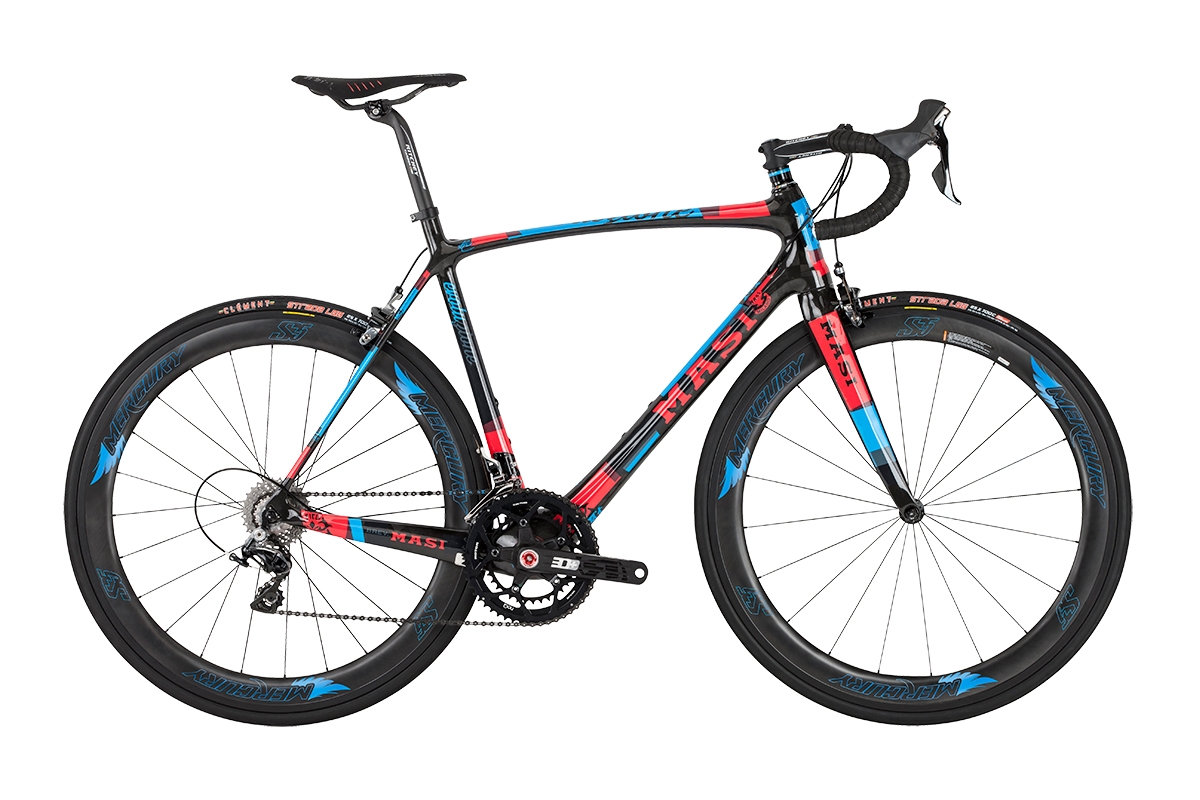

Featuring a new TeXtreme Composite frame, Di2 compatible internal cable routing and leading with a tapered head tube and direct mount fork, the Evo Dura Ace is designed for optimized handling, precision control and race winning character. The oversized chain stays feed a stiff BB86 Bottom bracket, producing highly responsive power transfer from the first pedal stroke. Are you ready to punch a cleaner and leaner hole in the air? Meet the New Masi Evoluzione Dura Ace.
FEATURES
- All-New Race Tuned Carbon MC-X TeXtreme Carbon frame, BB86, full internal cable routing, Di2 compatible, tapered headtube, carbon dropouts
- Masi RTC MC-X TeXtreme tapered full carbon fork
- Shimano Dura Ace direct-mount brakes
- Rotor 3D+ 52/36t crankset
- Enduro BB86 bottom bracket bearings
- Shimano Dura Ace 11 speed shifters, front & rear derailleurs, 11-28t cassette
- Custom Ritchey EvoCurve WCS Carbon oversized bar and WCS C220 stem
- Mercury S5 50mm carbon clincher wheels
- Fizik Antares R3 saddle with K:ium rails
- Ritchey WCS Carbon 1-Bolt seatpost
- Clement Strada LGG 25mm tires
| Frame Components | |
|---|---|
| Frame | Masi RaceTuned Carbon MCX TeXtreme carbon, Di2 compatible, BB86, internal routing, tapered headtube |
| Fork | RaceTuned Carbon MCX TeXtreme monocoque carbon |
| Headset | Ritchey WCS Logic tapered |
| Drivetrain | |
| Cranks | Rotor 3D+ 52/36t |
| Bottom Bracket | "Enduro BB86 press-fit for 30mm spindle" |
| Chain | Custom KMC X11 |
| Front Derailleur | Shimano Dura Ace 9000 |
| Rear Deralleur | Shimano Dura Ace 9000 |
| Derailleur Shifter | Shimano Dura Ace 9000 |
| Pedals | N/A |
| Wheels | |
| Tires | Clement Strada LLG 700x25c |
| Wheels/Rims | Mercury S5 50mm carbon clincher |
| Freewheel/Cassette | Shimano Dura Ace 9000 11-28t |
| Braking System | |
| Brakes | Shimano Dura Ace 9000 Direct Mount |
| Brake Levers | Shimano Dura Ace 9000 |
| Other Components | |
| Grips | Masi embossed tape |
| Handle Bar | Ritchey EvoCurve WCS Carbon |
| Stem | Custom Ritchey C220 WCS |
| Seat | Fizik Antares R3 |
| Seat Post | Custom Ritchey 1-Bolt WCS |
| Seat Clamp | Alloy, 31.8mm |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 72° | 74° | 520mm (20.5") | 470mm (18.5") | 405mm (15.9") | 68mm (2.7") | 964mm (38") | 724mm (28.5") | 502mm (19.8") | 376mm (14.8") | 45mm (1.8") | ||||
| 51 | 72.5° | 74° | 530mm (20.9") | 510mm (20.1") | 405mm (15.9") | 68mm (2.7") | 970mm (38.2") | 754mm (29.7") | 523mm (20.6") | 380mm (15") | 45mm (1.8") | ||||
| 54 | 73° | 74° | 545mm (21.5") | 540mm (21.3") | 405mm (15.9") | 68mm (2.7") | 981mm (38.6") | 778mm (30.6") | 543mm (21.4") | 389mm (15.3") | 45mm (1.8") | ||||
| 56 | 73.5° | 73.5° | 565mm (22.2") | 560mm (22") | 405mm (15.9") | 68mm (2.7") | 989mm (38.9") | 800mm (31.5") | 565mm (22.2") | 398mm (15.7") | 43mm (1.7") | ||||
| 58 | 73° | 73.5° | 585mm (23") | 580mm (22.8") | 405mm (15.9") | 68mm (2.7") | 1014mm (39.9") | 820mm (32.3") | 582mm (22.9") | 413mm (16.3") | 43mm (1.7") | ||||
| 61 | 73° | 73.5° | 600mm (23.6") | 610mm (24") | 405mm (15.9") | 68mm (2.7") | 1029mm (40.5") | 842mm (33.1") | 601mm (23.7") | 422mm (16.6") | 43mm (1.7") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
